Stage 1:
Installing the
PVM 220
Display Installation
Determine the display location (consider the information listed on
Follow the installation instructions provided by the display and display mount manufacturer.

PlenumVault Direct View System (PVM 220 PlenumVault Mount Kit)

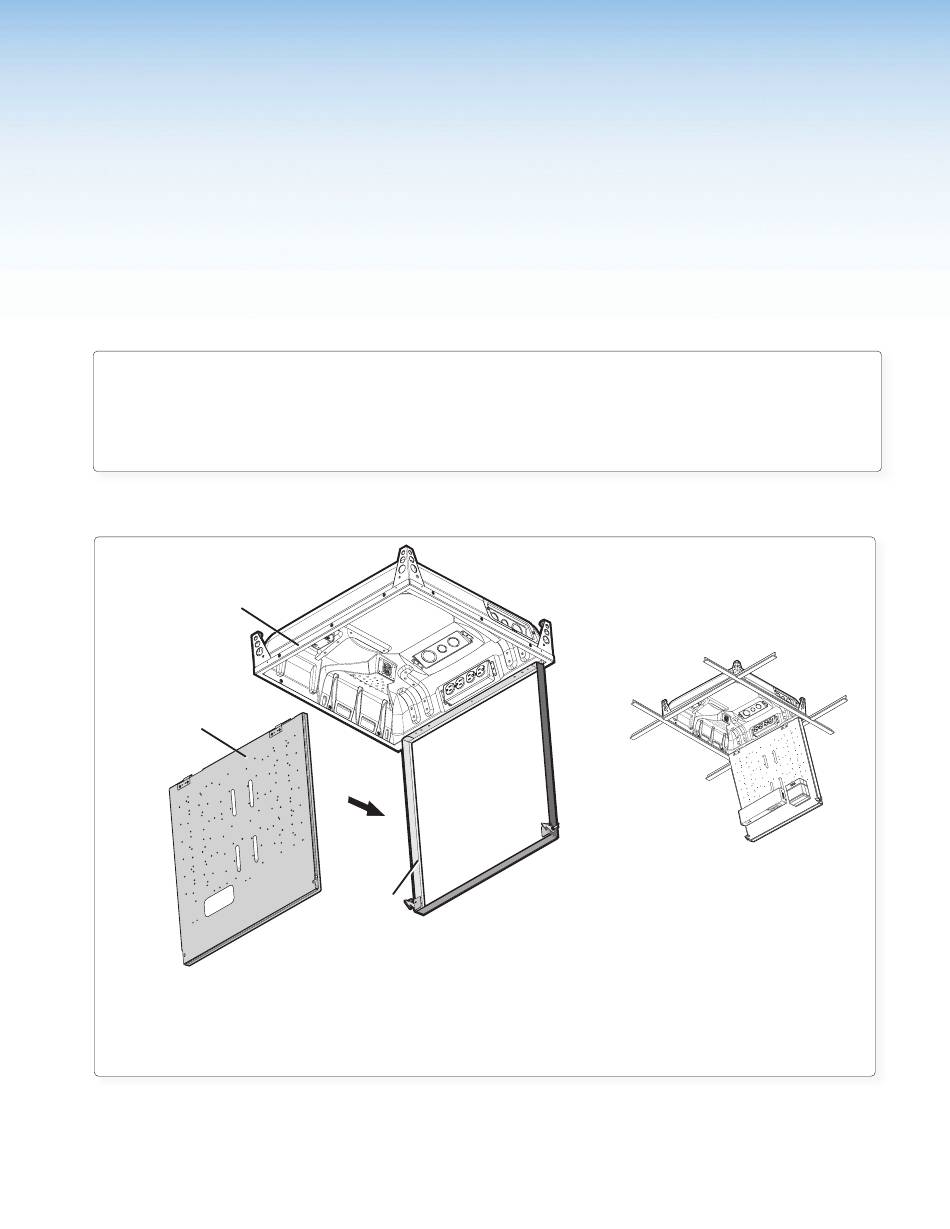

PVM 220 Enclosure
Device Mounting
Plate
• Where it goes: Installs onto a T-grid, within the air-handling space above a suspended ceiling near (within
15 feet) of the projector location.
• What it does: Supports, and hides from view, the installed PVCA 452 amplifier, power supply, and any
installed optional accessories.
Door Frame
PlenumVault Direct View Systems • Installing the PVM 220
page 3).
Mount the PVCA 452 Mount other optional
with the front panel devices as desired.
facing outwards in
the marked location.
Device
Mounting Plate
PVCA 452
Power Supply
12
