Extron electronics MLC Plus 84 D Setup Manual

MLC Plus 84 D • Setup Guide
O P
P T
L A
C A
C
Y
D O
L A
S P
D I
F
O F
P C
O N M E
L U
V O D
D V
I D E
X V
A U
MLC Plus 84 D

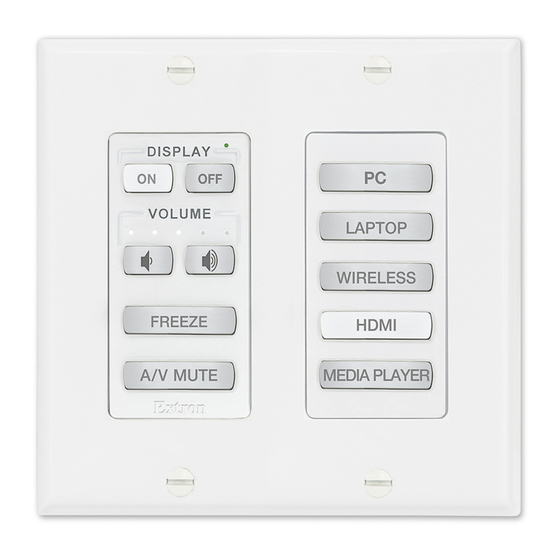

Figure 1.
Front Panel
Installation
Step 1: Get Ready
Use the following check list to prepare for the installation.
…
Download and install the latest version of the following:
Global Configurator software — for setting up and configuring the controller. GC includes the Toolbelt feature and a
•
way to upgrade the firmware of the controller. You must have an Extron Insider account and contact an Extron support
representative to obtain GC software (see
page 10).
IP Link Pro device drivers — for use with GC, to make control of other devices possible.
•
All are avail able from
…
Obtain network information for the unit from the network administrator. You will need the following details for each IP Link Pro
device:
…
DHCP setting (on or off)
…
Device (MLC Plus 84) IP address
…
Write down the MAC address of each IP Link Pro device (such as the MLC Plus 84) to be used.
…
Obtain model names and setup information for devices the MLC Plus 84 will control.
Step 2: Prepare the Installation Site
ATTENTION:
Installation and service must be performed by authorized personnel only.
•
L'installation et l'entretien doivent être effectués par le personnel autorisé uniquement.
•
Extron recommends installing the MLC Plus 84 into a grounded, UL Listed electrical junction box.
•
Extron recommande d'installer le MLC Plus 84 dans un boîtier d'encastrement électrique mis à la terre, listé UL.
•
If the controller will be installed into fine furniture, it is best to hire a licenced, bonded craftsperson to cut the access
•
hole and perform the physical installation so the surface will not be damaged.
S'il est prévu d'installer le contrôleur dans du beau mobilier, il est préférable de faire appel à un artisan autorisé et
•
qualifié pour couper le trou d'accès et réaliser l'installation de telle façon que la surface ne soit pas endommagée.
Follow all national and local building and electrical codes that apply to the installation site.
•
Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s'appliquent au site de l'installation.
•
The Extron MLC Plus 84 D MediaLink
connection into AV systems to allow users to remotely control, monitor, and troubleshoot AV
equipment, including display devices and switchers. The controller includes an embedded
Web server and support for Power over Ethernet (PoE). It also includes
ports for bidirectional serial control, IR output, relays, digital input, and
M
volume control.
The MLC Plus 84 D fits a standard US two-gang electrical
junction box or mud ring. It includes a two-gang
O
Decora ® -style wallplate and a two-gang mud ring.
This guide provides instructions for an experienced
installer to install an MLC Plus 84 Series controller and
to create a basic configuration. Configure the
controller using Extron Global Configurator (GC)
software running in Global Configurator Professional
(GC Professional) or Global Configurator Plus (GC Plus)
mode. The MLC integrates with Extron GlobalViewer
Enterprise (GVE) software and the GlobalViewer
Web-based AV resource management for remote control
applications. Global Configurator and other useful software
applications are available at www.extron.com.
Locating Software, Firmware, and Driver Files on the Extron Website
www.extron.com (see Locating Software, Firmware, and Driver Files on the Extron Website
Controller with IP Link
®
®
…
Subnet mask
…
Gateway IP address
Pro integrates Ethernet
®
R E
IN
D
1
L
V O
G
IN
IR G
C
V
2
M
C O G
S
1 G
M R x
C O
T x
R
W E
G
P O
R x
V A X
1 2 T x
A M
0 .4
MLC Plus 84 D
Figure 2.
Rear Panel
on
on page 10).
…
User name
…
Passwords
Y S
L A
C
2
1
