EBPs that are relatively far from the control processor (see the eBUS Technology Reference Guide at
www.extron.com
figure 11).
PAGE COM
LIFIED A A UDIO
SENSOR
RS 232
4/8
HDMI/CEC/ARC
+V Tx Rx G
L R
NG
PVCA 452

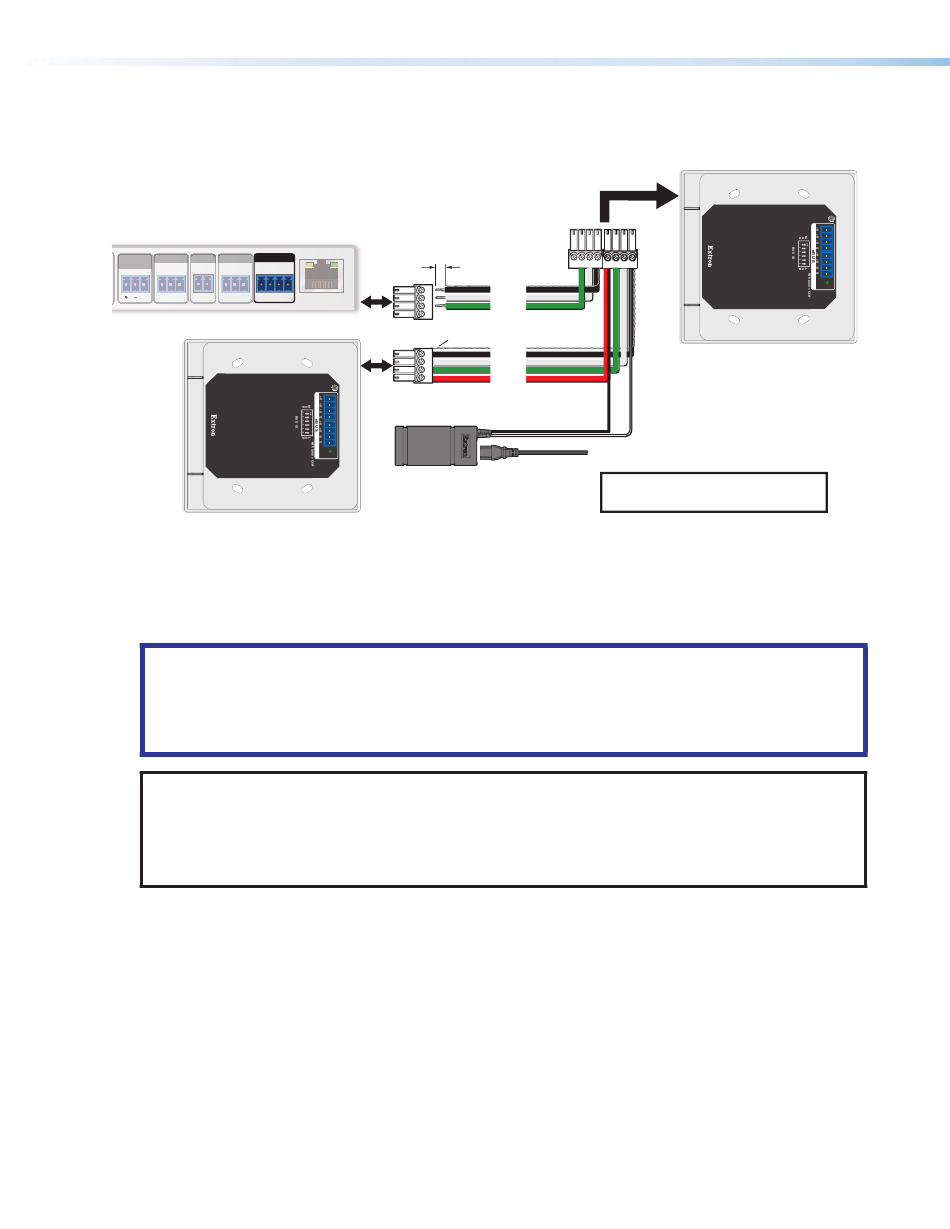

Cabling EBP Panels with an Extron Power Supply
Figure 11.
4. Mount the EBP 100 – The EBP 100 panel can be installed directly into the wall using a 2-gang wall
mounting bracket (mud ring), wall or surface mounting box or UL-Listed junction box.
ATTENTION:
•
•
NOTES:
•
•
•
Before Mounting:
Decide where to locate the panel. Take into consideration the position of wall studs and windows
a.
that could obstruct cable runs.
If required, install the electrical wall box by following the instructions provided by the manufacturer.
b.
Or install the provided wall mounting bracket by following these instructions.
i.
ii.
iii.
iv.
28 PlenumVault Direct View Systems • Installing the WPD Wallplate and EBP 100
for details) can be connected to an optional Extron 12 VDC desktop power supply (see
D I/O
IR/S eBUS
PWR OUT = 3W
S G 1 2 G +V +S -S G LAN
EBP 100
All electrical installation should be performed by qualified personnel in accordance with local and
national building codes, fire and safety codes, and local and national electrical codes.
Toute installation électrique devrait être effectuée par un personnel qualifié, conformément aux
codes du bâtiment, aux codes incendie et sécurité, et aux codes électriques locaux et nationaux.
The wall box is not provided and must be purchased separately.
Install the wall box by following the instructions provided by the manufacturer.
If the unit is not installed in a mounting bracket, you must install the provided plastic spacer. The
spacer positions the unit to allow the magnetic faceplate to attach properly and securely.
Cut a hole in the wall or furniture.
Turn the screws on the front of the mounting bracket counterclockwise so that the locking arms
are flush with the edges of the bracket.
Insert the bracket into the hole. If necessary, enlarge the hole with a file or rasp.
Turn the screws on the front of the mounting bracket clockwise so that the locking arms rotate
and secure the bracket against the wall. Do not overtighten the locking arms.
3/16" (5 mm) Max.
Ground
- Signal
+ Signal
Tie drain wires to ground.
Ground
- Signal
+ Signal
+12 VDC
+12 VDC input
– Return
Ground
all Devices
External Power Supply
(12 VDC, 1.5 A max.)
EBP 100
Smooth Ridged
NOTE: Check the polarity of the power
supply before connecting it to the EBP.
