Connection Procedures

Connecting to the RRH

Connecting to the RRH

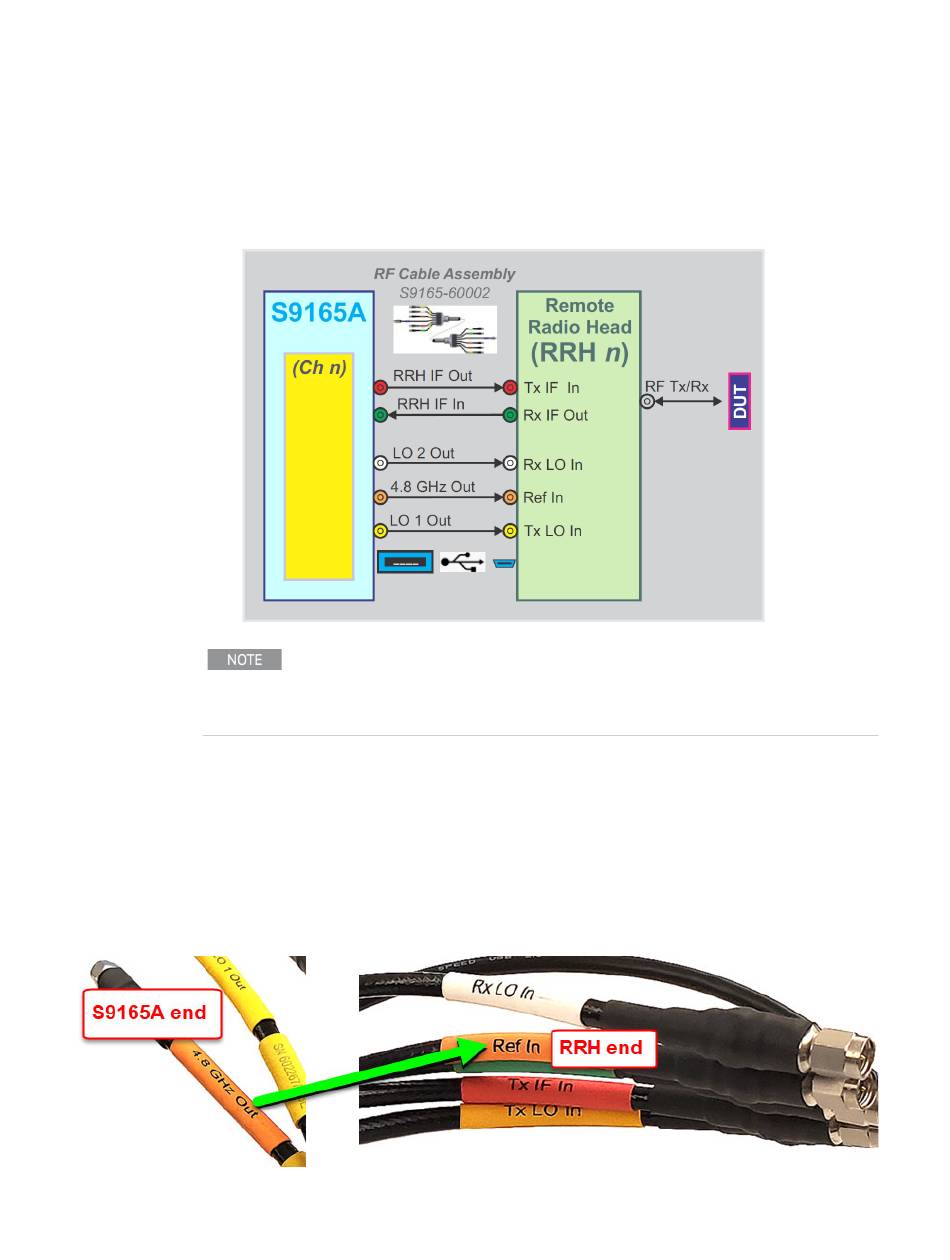

The diagram below shows the needed cable connections. Connections to the
RRH are made using the Cable Assembly, and must be repeated for each
channel. (See also:
Figure 4-1 Connections to the RRH

The RF cable bundle

One end of the cable bundle connects to the S1965A front panel, and the other
end connects to the RRH. A quick way to tell them apart is to compare the
cable endings with an orange collar: it is labeled "4.8 GHz Out" on the S9165A
end, and "Ref In" on the RRH end.
Figure 4-2 S9165A and RRH ends of the cable assembly
Getting Started Guide
"USB Channel Assignments" on page
The USB connection between the S9165A and the RRH is not "plug-and-play". It
should be connected before the S9165A is powered up. If it is disconnected
during use, the S9165A will have to be rebooted after the connection is
re-established.
29).
