Safety Labels / Symbols; Device Labels; Identification Label; Laser Targeting Light - KPM PROCESS SENSORS METIS M311 Operating Manual

2.4

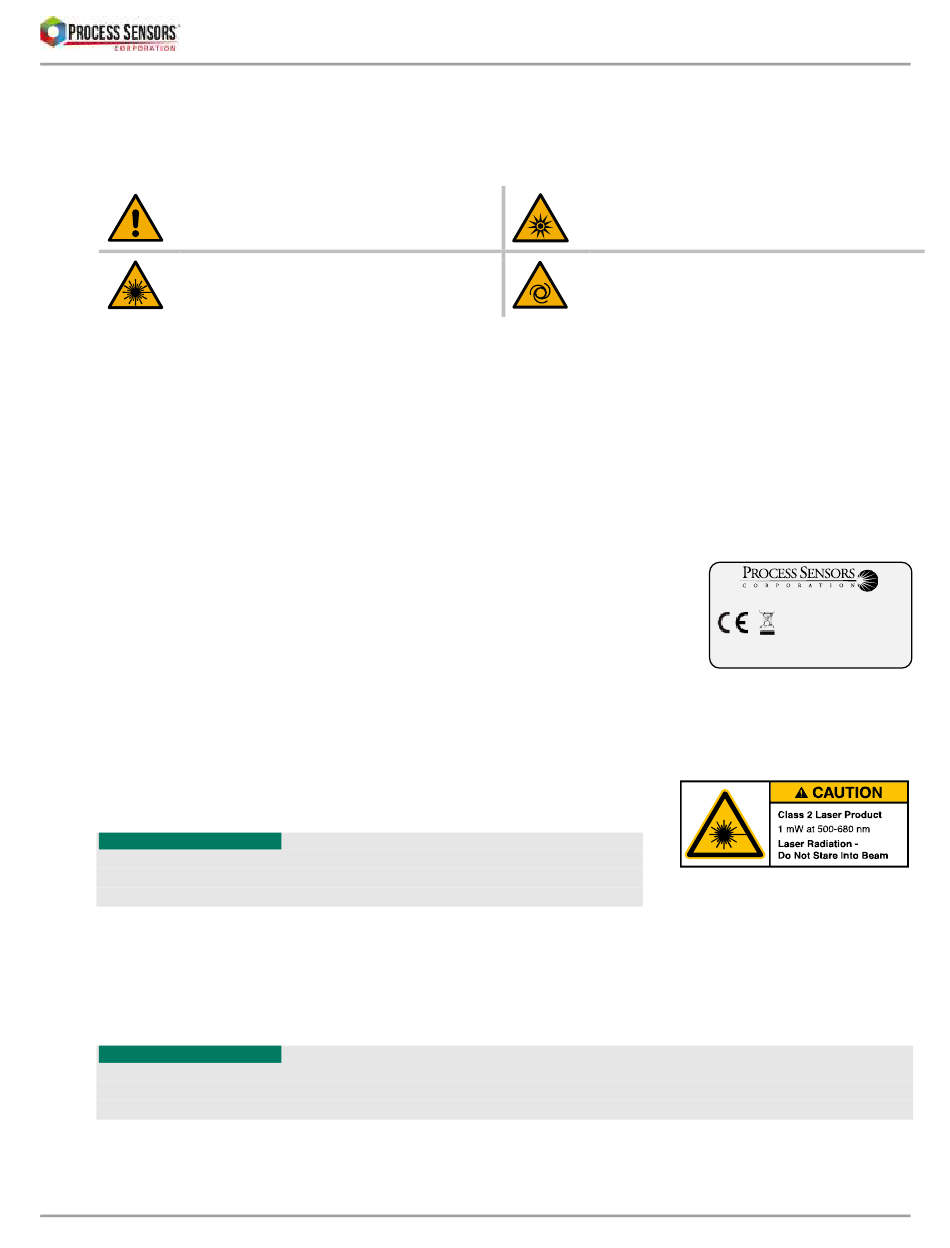

Safety Labels / Symbols

In addition to the warning notes used in this manual, the following warning symbols are used. Warning symbols
can also be found on the device. Follow all measures marked with the label to avoid injury.
Indicates general hazards.
Indicates the hazard for the eyes due to
a class 2 laser targeting light.
2.5

Device Labels

On the top of the pyrometer there is the label (nameplate) as well as a warning sticker for IR sensors with a

laser targeting light.

▪ Mount the device in a manner that the labels are still clearly visible after installation.
▪ Keep the warning signs in legible condition
▪ Replace damaged labels
2.6

Identification Label

The identification label on top of the device shows information to:
▪ Distributor logo
▪ Series / order number (for breakdown see chap. 9.2)
▪ Temperature range, serial number, serial interface(s), analog output and
power supply
▪ CE sign and crossed-out waste container product mark (see
▪ Manufacturing company.
2.7 Laser Targeting Light
For easy alignment, the pyrometers may be equipped with a laser target-
ing light, laser class 2 (according to IEC 60825-1). The laser emits a visi-
ble red light with a power of <1 mW and a wavelength around 650 nm.
SAFETY INSTRUCTIONS
▪ Never look into the direct or reflected laser beam.
▪ Do not point the laser to anyone.
▪ If laser radiation hits the eye, avert one's eyes immediately.
2.8

Through-lens Sighting

Devices with through-lens sighting and temperature range above 1400°C are equipped with an adjustable eye
protection filter in the eyepiece to reduce glare at high measurement temperatures. The unprotected look at
temperatures >1400°C can damage eye function permanently.
SAFETY INSTRUCTIONS
▪ Only look with darkened eyepiece at objects with temperatures above 1400°C / 2552°F to protect the eyes
against glare at high radiation temperatures.
▪ Before looking at the high temperatures, always first adjust the eyepiece by turning it to the darkest position.
6 / 81
METIS M311 / M322 / H311 / H322 (12-pin device connector)
Indicates the hazard for the eyes from op-
tical radiation.
Indicates the hazard of automatic startup
of machine parts.
1.8 Disposal)
M3
11 06001300058130423-A
Temp. Range: 600 - 1300 °C
1112 - 2372 °F
Serial no: 1234
Ser. interface: RS 232/485
Analog output: 2x 0/4 - 20mA
Power supply: 18 - 30V DC
Laser warning label on the device:
