Start / Stop From The Devices Tab; Start / Stop Via The Digital Input "Controller Start / Stop; Control Parameters - KPM PROCESS SENSORS METIS M311 Operating Manual

INFO
if the controller start does not work: If a digital input "Activate controller" is activated, the controller
process can only be started if 24 V are present at the input.
INFO
in processes where the temperature is to be controlled from a value higher than the setpoint to a lower
value, the controller cannot actively control anything, since reaching the temperature depends on the cooling
speed of the material.

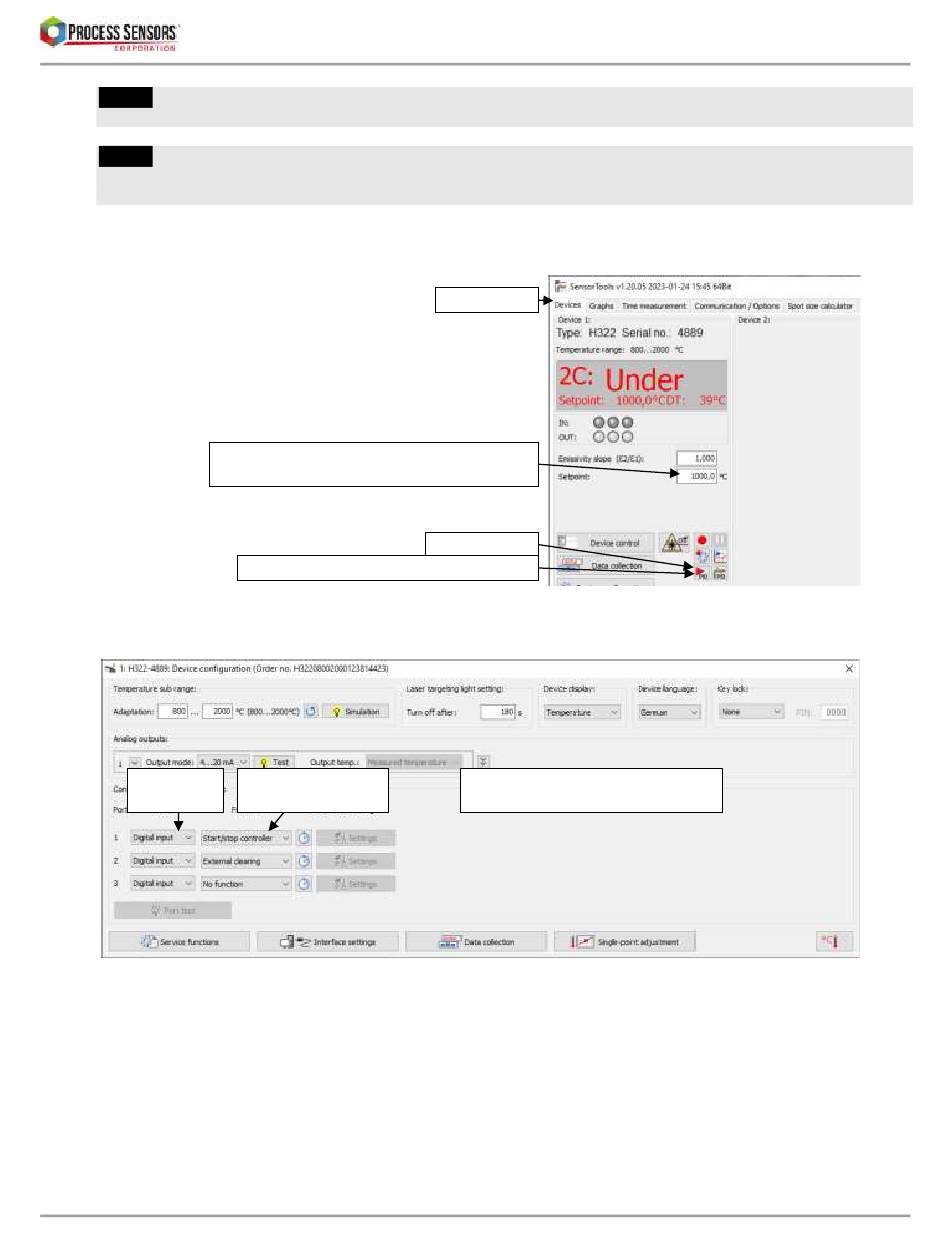

7.4.1 Start / Stop from the Devices Tab

If the controller parameter window is not open, the control
can be started or a recording can be made in the device tab.
The control takes place with all parameters that are set in
the controller parameter window.
and transfer it to the pyrometer with "Enter"

7.4.2 Start / stop via the Digital Input "Controller Start / Stop"

Select
digital input

7.4.3 Control Parameters

▪ Always visible parameters:
- Reference temperature: selects the temperature that is displayed in the control window (same function
as in the control window)
- Setpoint value: Setpoint specification
- Ramp time (in 100 ms): The setpoint temperature will be approached by increasing the temperature with
a uniform gradient of the temperature within the entered time (the setpoint temperature in the grey field
above can show updated ramp temperatures if the buffer mode settings in the data collection settings
(see 7.1.5.12) are set to "with state information").
58 / 81
Enter setpoint
Press again to stop the control process
Activate "controller
start / stop"
METIS M311 / M322 / H311 / H322 (12-pin device connector)
Devices Tab
Start control
Each voltage pulse starts or stops
(alternately) the control process.
