▪ The following file types can be selected:
- SensorTools data file (*.r2b, file icon:
SensorTools.
- SensorTools Viewer view file (*.stvcfg, file icon:
e.g. to be sent as a comparative detail view. When saving a workspace file, you can choose in a selection
window whether a folder should be created automatically in which the selected data files are saved as r2b
so that they can be sent easily or if the original file path should be used.
INFO
Loading an stvcfg file deletes already loaded and displayed r2b files from the Viewer.

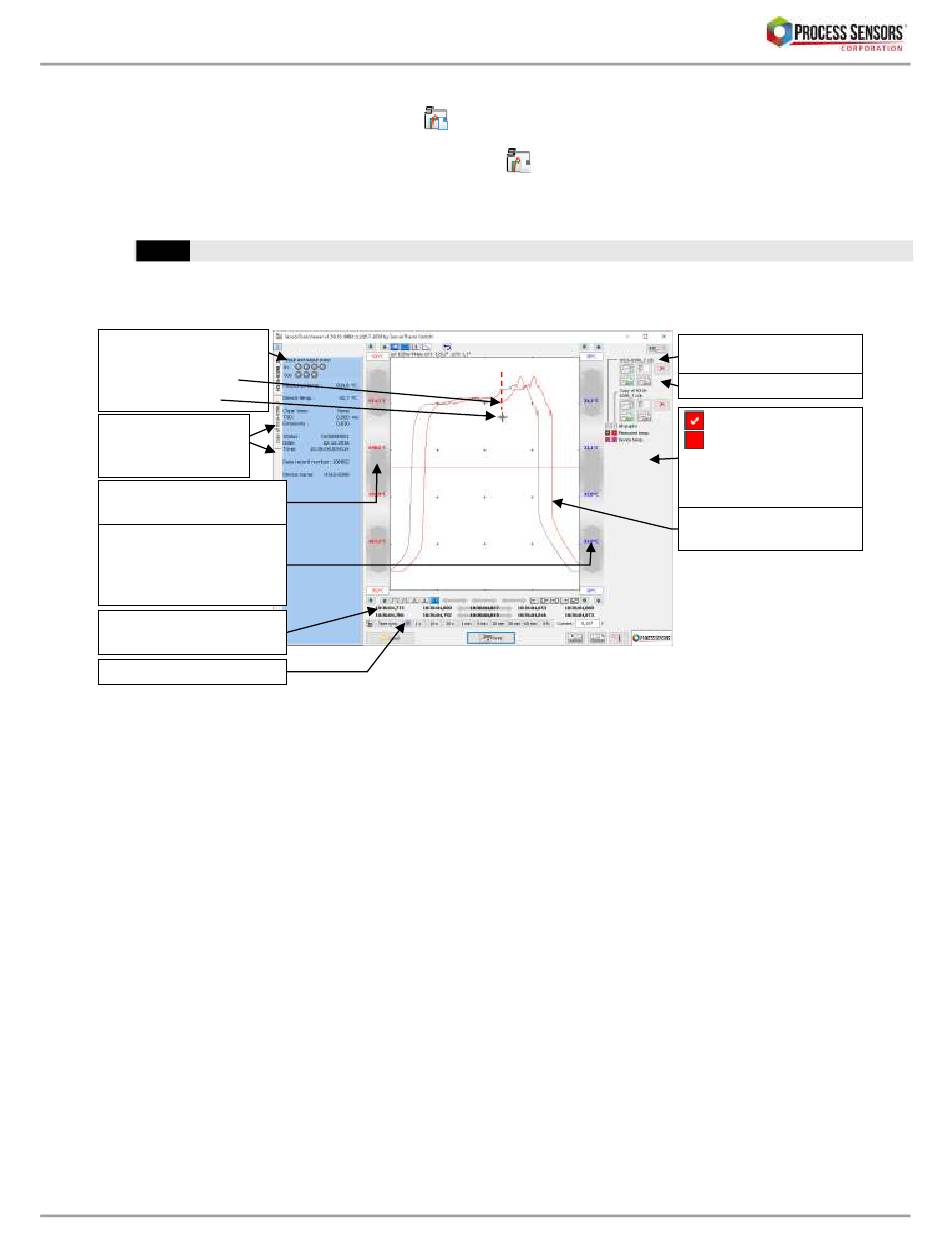

7.3.2 Overview

Info window for
measurement data
on vertical mouse
cursor position
Info window selec-
tion for multiple
loaded files
Measuring temperature
scale
Additional scales when
selecting device tem-
perature or signal
strength
Time scale (several if
several files are loaded)
Show / hide date scale
): The standard data format for recording measurement data in
): workspace files store a view of multiple data files,
Measurement data file
name
associated Functions
Select graph
or deselect.
Change color display:
right-click for color se-
lection
Display of selected
measurement graphs
