6

Configuring the Pyrometer

Basic pyrometer settings can be made using the setting buttons on the back of the device in order to adapt it to
the measuring task:
▪ Measurement parameters
▪ Analog outputs
▪ Interface
When connected to a PC, these and other settings can be made using the SensorTools software supplied (see
Chapter 6.2.9) or via interface commands (see Chapter 11).
▪ Scaling the analog outputs (see 7.1.5.6)
▪ Set the configurable inputs / outputs (see 7.1.5.8)
▪ Send test signals to the analog and digital inputs/outputs (see 7.1.5.9)
▪ Define measurement parameter sets for activation via digital inputs (see
▪ Perform single-point adjustment to match the measurement through windows (see 7.1.5.13)
6.1

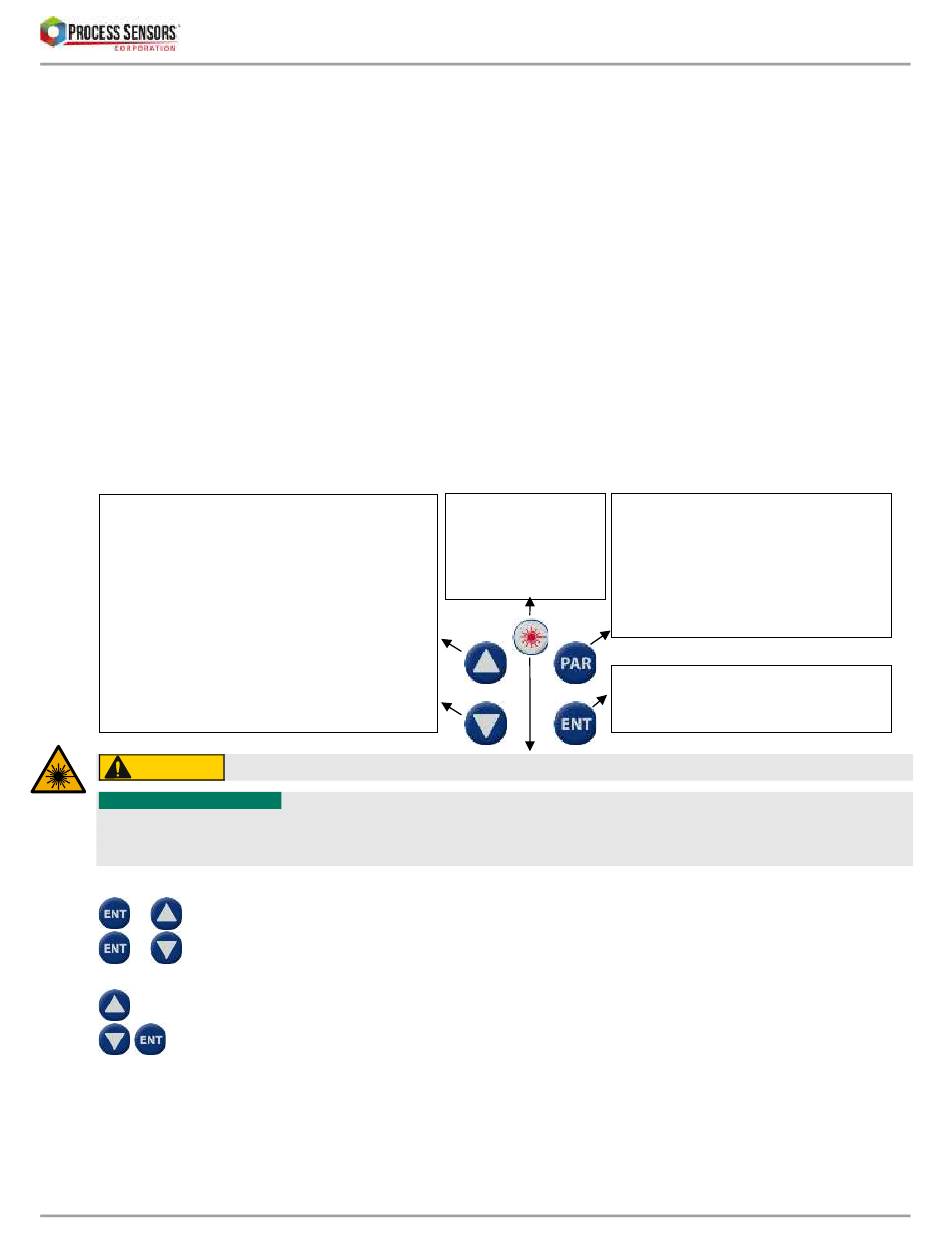

Key Functions

Arrow keys: Settings can be done with the
arrow keys. Keep the button pressed to
change the values faster, reasonable for ex-
ample when changing a temperature value.
A changed value is shown by a blinking dis-
play and will only be saved when pressing
"Enter", pressing PAR calls the next param-
eter point.
If 60 seconds of inactivity have been made,
the display jumps back to the measurement
display without taking over any modified val-
ues.
CAUTION
SAFETY INSTRUCTIONS
▪ Never look into the direct or reflected laser beam.
▪ Do not point the laser to anyone.
▪ If laser radiation hits the eye, avert one's eyes immediately.
Channel switching: When pressing an arrow key while holding down the ENTer key, the unit will
+
cycle through the channels 2C (2-color measurement) / C1 (1-color measurement in channel 1) /
+
C2 (1-color measurement in channel 2).
Key lock: Press the arrow keys and the ENTer key simultaneously for approx. 3 seconds to
activate or deactivate the key lock. With locked keys, no parameters can be called and changed.
26 / 81
Laser radiation, laser class 2, do not look into the beam.
METIS M311 / M322 / H311 / H322 (12-pin device connector)
Laser targeting Parameter: Press the button re-
light (depending on peated to get access to all settings
configuration): sequentially (see 6.2, Parameters /
Turns on and off the Settings). If a subcategory is found,
laser targeting light. this is indicated with a > (e.g.
MEASPARA.>). Pressing ENTer the
subcategories are called.
Enter: opens a parameter category
or takes over a modified parameter
value.
7.1.5.8.1.1 Setups)
