Choose your favorite display

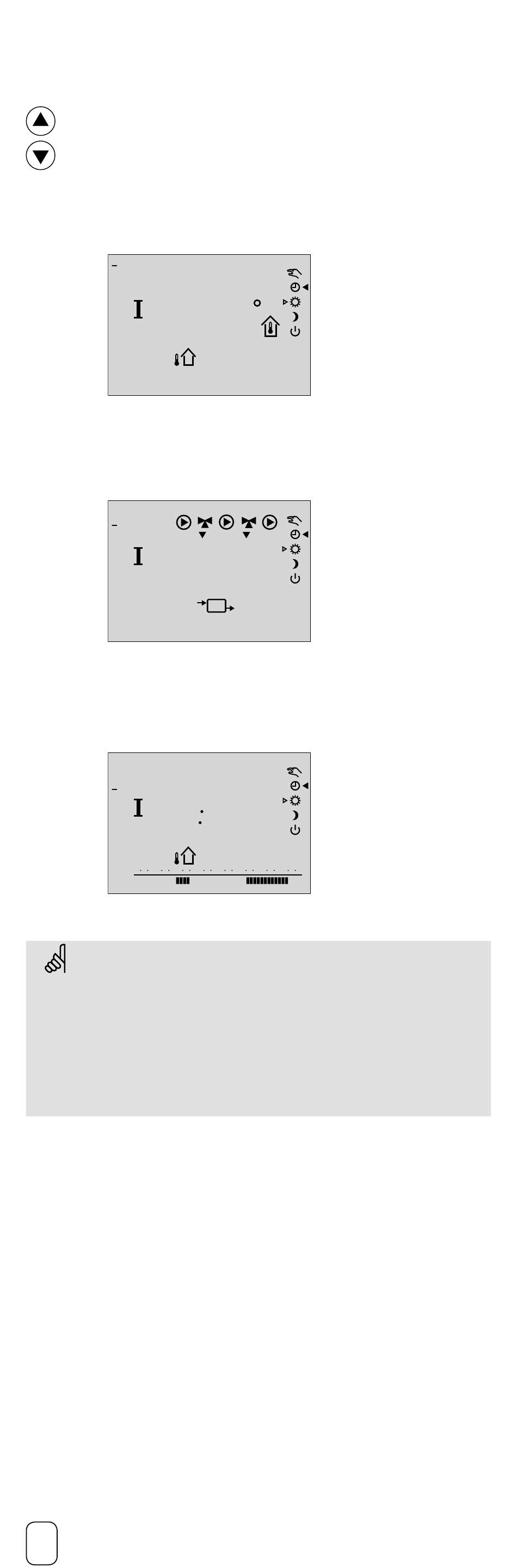

Choose the display - A, B, or C - for daily
operations.
Room / air duct temperature - display A
Line
A
Circuit
S1 temp.
System information - display B
Line
B
Circuit
Flow / air
duct temp.
Today's schedule - display C
Line
C
Circuit
S1 temp.
The controller automatically reverts to display C if the card has
been reinserted or the power supply has been interrupted.
If the temperature value is displayed as "- -", the sensor in
question is not connected. "- - -" means that the sensor is short-
circuited.
The yellow
side of the
ECL Card
Room / air duct temp. S2 / S3
20
3
State of controlled units
1 1
ON ON
6 5
Time
1 8 3
3
0 3 6 9 12
Today's schedule
1 9
2 2 3
ON
3 0
5
2 0
15 18 21 24
Desired room / air duct
temp. S2 / S3
Limitation temp.
Readout of desired room /
air duct temp. S2 / S3
