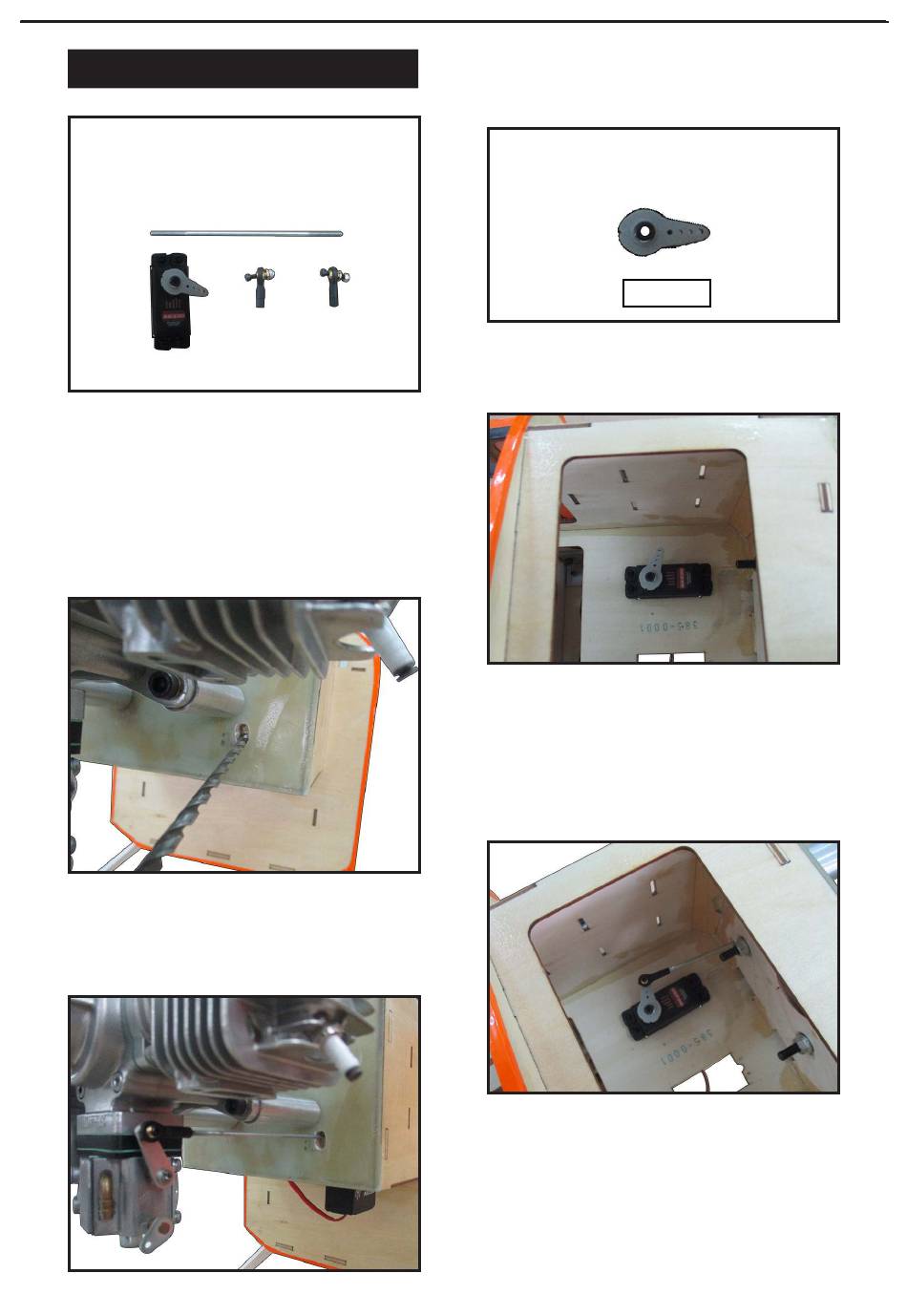

THROTTLE SERVO INSTALLATION
1.
Use a 1/4" bit to drill a pushrod exit
hole in the irewall in line with the engine
carburetor throttle arm.
Assemble ball link to threaded end of
pushrod.
2.
Attach throttle pushrod to the carbure-
tor throttle arm with the ball link.
3.
Install adjustable servo connector in the
servo arm as same as picture below:
4.
servo arm
Install throttle servo into servo mount
ing tray
5.
Reinstall the servo horn by sliding the
connector over the pushrod wire. Center
the throttle stick and trim and install the
servo horn perpendicular to the servo
center line.
6.
Move the throttle stick to the closed po-
sition and move the carburetor to closed.
Use a 2.5mm hex wrench to tighten the
screw that secures the throttle pushrod
wire. Make sure to use threadlock on the
screw so it does not vibrate loose.
