Installing The Aileron Servos - Seagull Models EDGE 540 V3 Assembly Manual

Edge 540 V3, 77.5" wingspan 35-40cc

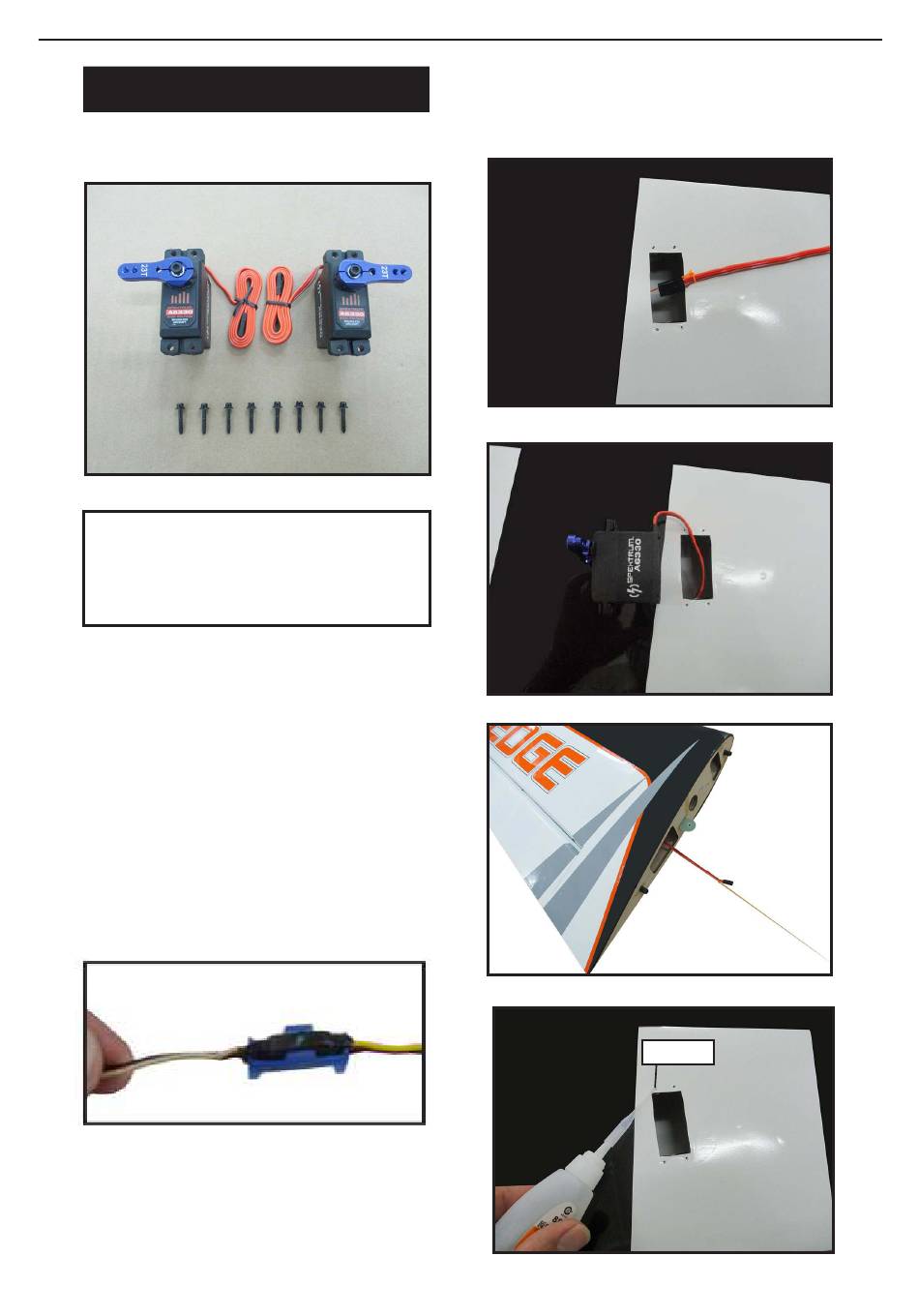

INSTALLING THE AILERON SERVOS

Please study images below.
1.
Maximum Servo spec.
Torque : 126.6 oz-in (9.11 kg-cm) @ 6.0V;
178 oz-in (12.82 kg-cm) @ 7.4V; 248 oz-
in (17.86 kg-cm) @ 8.4V
NOTE : servos arm for aileron is not
provided from manufacturer.
Layout the servo on the wing to test fit
the installation and ensure servo lead is
he correct length.
Attach the extension to the servo lead
and secure with Safety Clip, safety wire,
tape or other method. Ensure the plugs
will not come apart from vibration or
light tension.
2.
6
Instruction Manual.
Fasten the pull string from the servo
hole to the male plug of the servo exten-
sion.
3.
4.
5.
6.
hin CA
