Seagull Models EDGE 540 V3 Assembly Manual page 4

Edge 540 V3, 77.5" wingspan 35-40cc

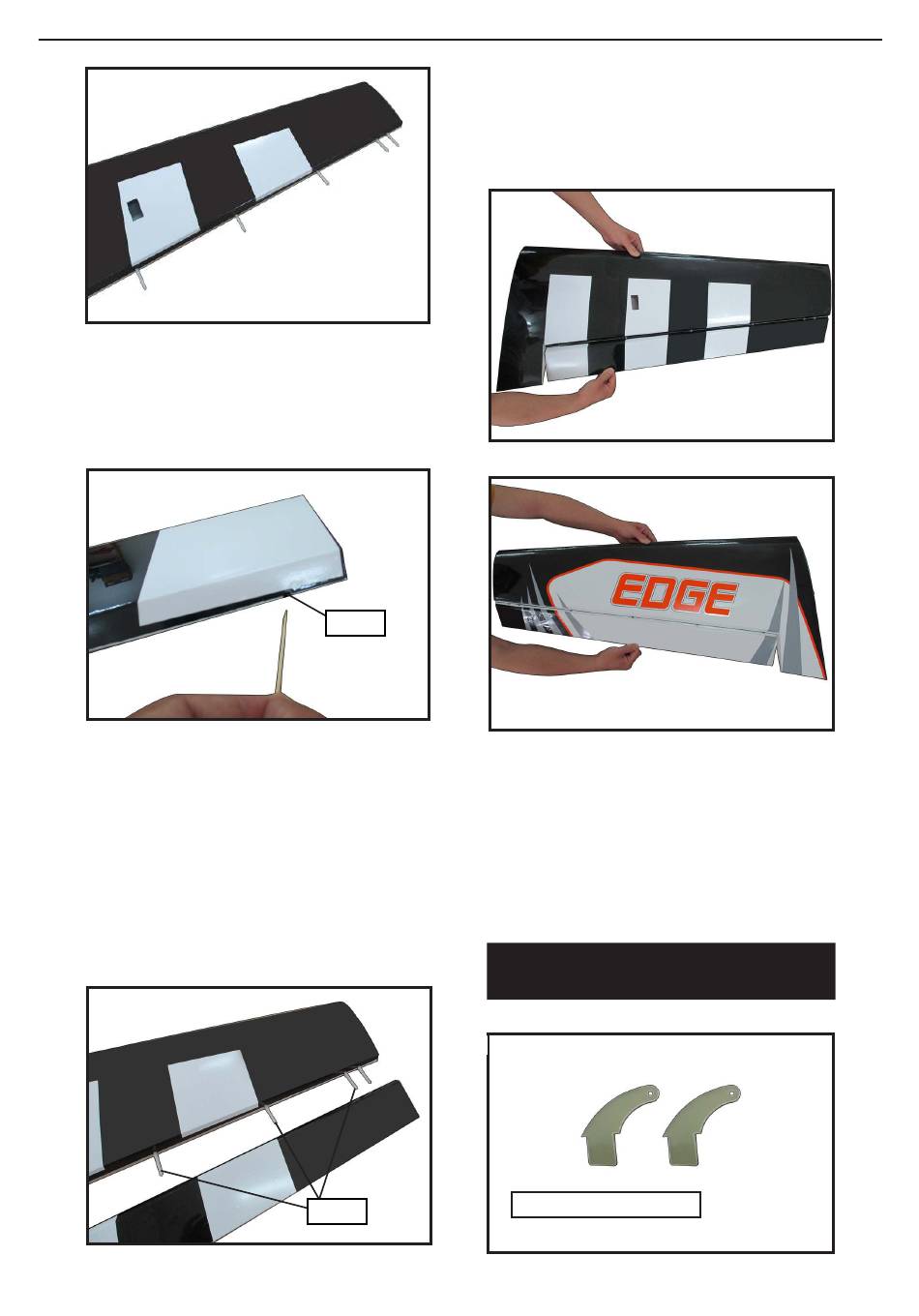

4.
Insert all four hinges in the ailerons at
this time. Make sure hinges move up and
down in right direction and not side to
side !
5.
Apply epoxy into each of the holes in the
ailerons using a spare piece of pushrod
wire or toothpick.
Make sure to use enough epoxy so it
securely adheres the hinge to the surfaces.
Do not use an excessive amount of epoxy
when gluing the hinges so that it expels
from the hinge area.
6.
4
7.
8.
Epoxy
1.
Epoxy
Instruction Manual.
Be sure to test the aileron hinges once
you insert them. Ensure that the hinge
pockets line up, and that the hinges move
freely before the epoxy dries.
Check the it of the aileron to the wing.
he top of the ailerons will align to the
top of the wing. Make sure movement is
smooth and bind free.
We prefer 30-minute epoxy to allow
enough working time during the hinge
installation.
INSTALL THE AILERONS
CONTROL HORN
Fiberglass control horn
