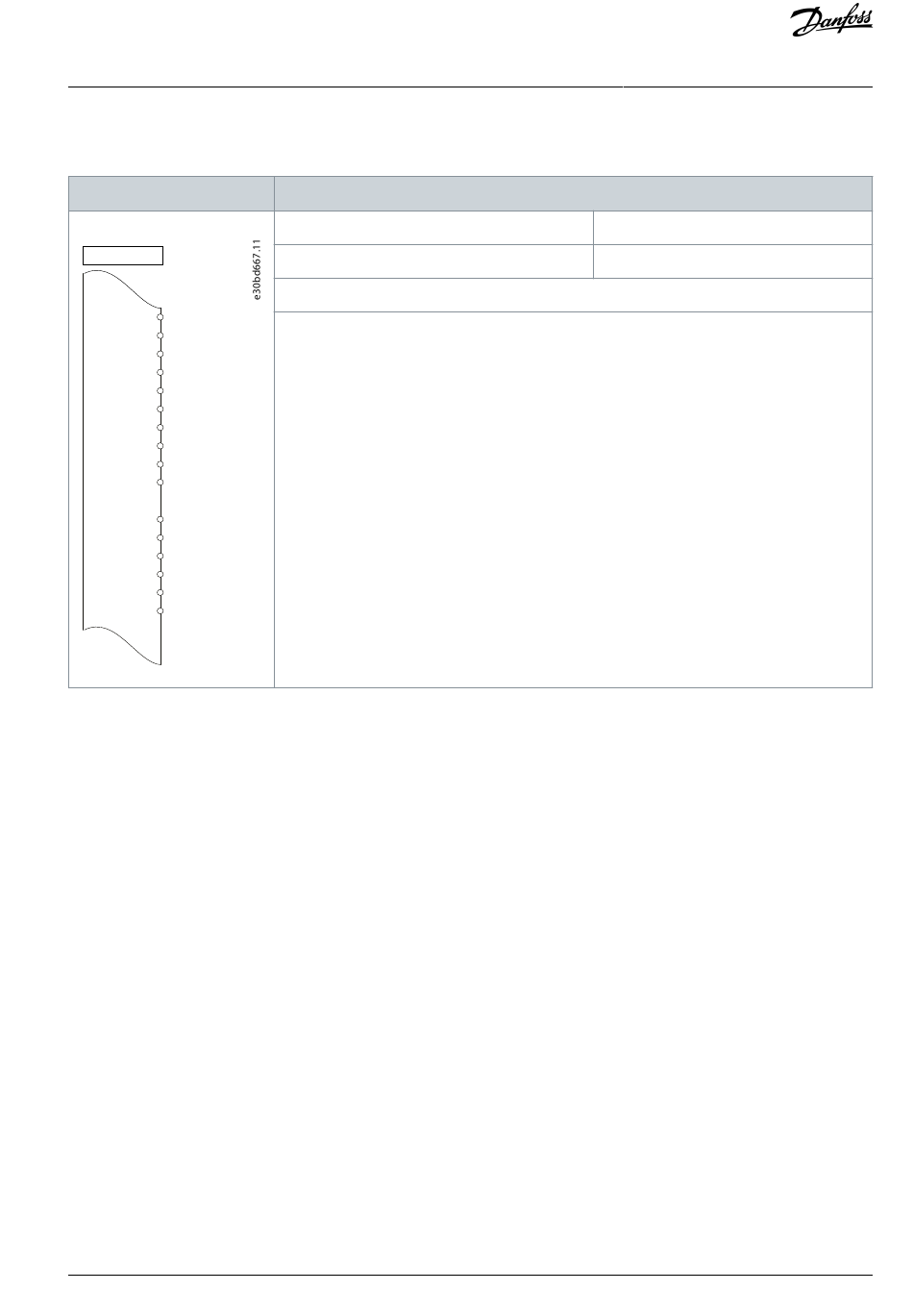

6.1.10 Wiring for Regen

Table 37: Regen
Drive
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Danfoss A/S © 2023.09
Parameters
Function
Parameter 1-90 Motor Thermal Protection
* = Default value
To disable regen, decrease parameter 1-90 Motor Thermal Protection to 0%. If the application
uses motor brake power and regen is not enabled, the unit trips.
Basic I/O Configuration
Setting
100%*
