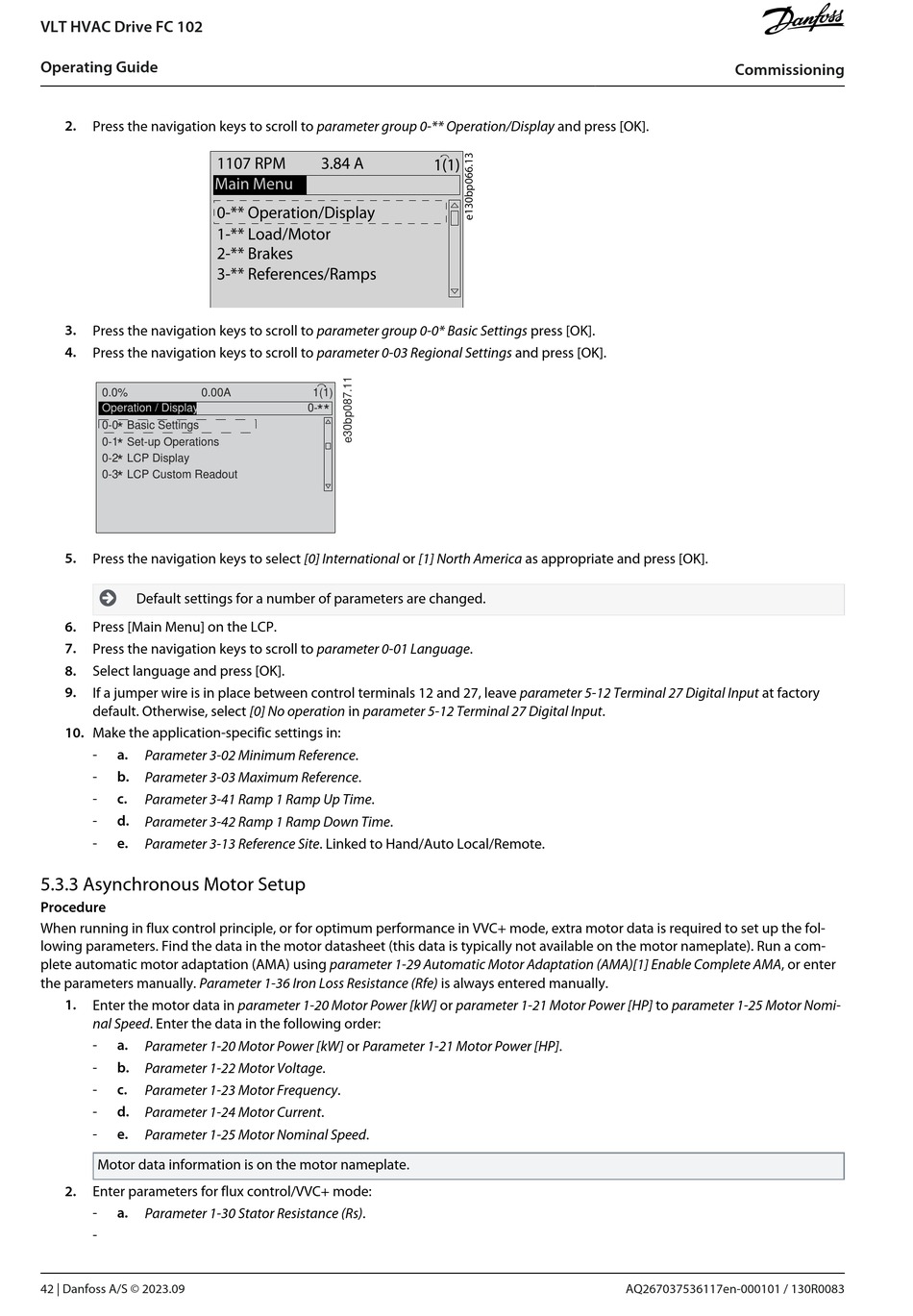

2.
Press the navigation keys to scroll to parameter group 0-** Operation/Display and press [OK].
3. Press the navigation keys to scroll to parameter group 0-0* Basic Settings press [OK].
4.
Press the navigation keys to scroll to parameter 0-03 Regional Settings and press [OK].
0.0% 0.00A
Operation / Display
0-0 Basic Settings
*
0-1 Set-up Operations
*
0-2 LCP Display
*
0-3 LCP Custom Readout
*
5.
Press the navigation keys to select [0] International or [1] North America as appropriate and press [OK].

Default settings for a number of parameters are changed.
6. Press [Main Menu] on the LCP.
7.
Press the navigation keys to scroll to parameter 0-01 Language.
8.
Select language and press [OK].
9.
If a jumper wire is in place between control terminals 12 and 27, leave parameter 5-12 Terminal 27 Digital Input at factory
default. Otherwise, select [0] No operation in parameter 5-12 Terminal 27 Digital Input.
10. Make the application-specific settings in:
- a. Parameter 3-02 Minimum Reference.
- b. Parameter 3-03 Maximum Reference.
- c.
Parameter 3-41 Ramp 1 Ramp Up Time.
- d.
Parameter 3-42 Ramp 1 Ramp Down Time.
- e.
Parameter 3-13 Reference Site. Linked to Hand/Auto Local/Remote.

5.3.3 Asynchronous Motor Setup

Procedure
When running in flux control principle, or for optimum performance in VVC+ mode, extra motor data is required to set up the fol-
lowing parameters. Find the data in the motor datasheet (this data is typically not available on the motor nameplate). Run a com-
plete automatic motor adaptation (AMA) using parameter 1-29 Automatic Motor Adaptation (AMA)[1] Enable Complete AMA, or enter
the parameters manually. Parameter 1-36 Iron Loss Resistance (Rfe) is always entered manually.
1.
Enter the motor data in parameter 1-20 Motor Power [kW] or parameter 1-21 Motor Power [HP] to parameter 1-25 Motor Nomi-
nal Speed. Enter the data in the following order:
a.
- Parameter 1-20 Motor Power [kW] or Parameter 1-21 Motor Power [HP].
b.
- Parameter 1-22 Motor Voltage.
c.
- Parameter 1-23 Motor Frequency.
- d. Parameter 1-24 Motor Current.
- e.
Parameter 1-25 Motor Nominal Speed.
Motor data information is on the motor nameplate.
2.
Enter parameters for flux control/VVC+ mode:
- a.
Parameter 1-30 Stator Resistance (Rs).
-
42 | Danfoss A/S © 2023.09
1107 RPM 3.84 A
Main Menu
0-** Operation/Display
1-** Load/Motor
2-** Brakes
3-** References/Ramps
1(1)
0-
**
1(1)
Commissioning
AQ267037536117en-000101 / 130R0083
