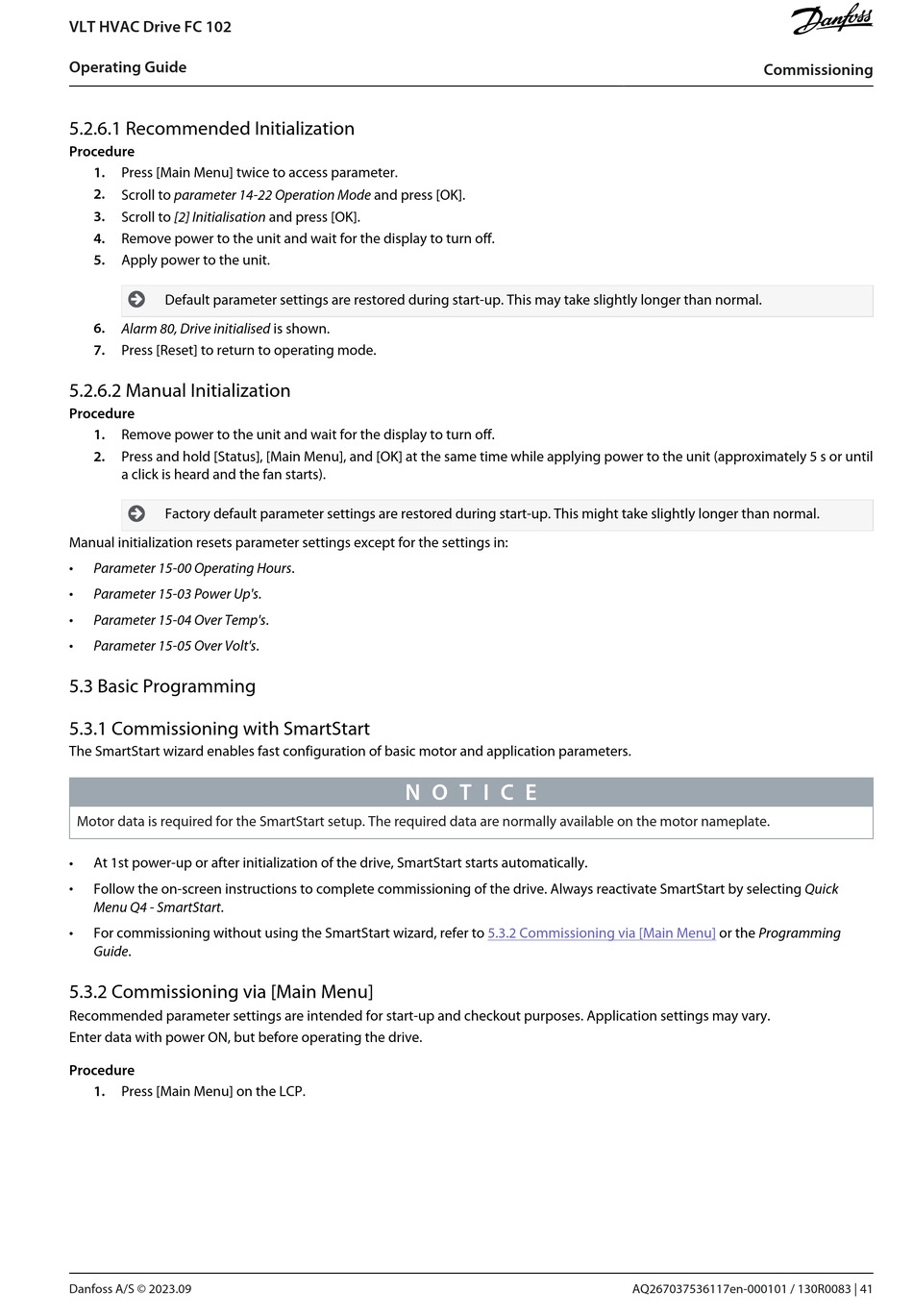

VLT HVAC Drive FC 102
Operating Guide

5.2.6.1 Recommended Initialization

Procedure
1. Press [Main Menu] twice to access parameter.
2.
Scroll to parameter 14-22 Operation Mode and press [OK].
3.
Scroll to [2] Initialisation and press [OK].
4.
Remove power to the unit and wait for the display to turn off.
5. Apply power to the unit.

Default parameter settings are restored during start-up. This may take slightly longer than normal.
6.
Alarm 80, Drive initialised is shown.
7. Press [Reset] to return to operating mode.

5.2.6.2 Manual Initialization

Procedure
1. Remove power to the unit and wait for the display to turn off.
2. Press and hold [Status], [Main Menu], and [OK] at the same time while applying power to the unit (approximately 5 s or until
a click is heard and the fan starts).

Factory default parameter settings are restored during start-up. This might take slightly longer than normal.
Manual initialization resets parameter settings except for the settings in:
•
Parameter 15-00 Operating Hours.
•
Parameter 15-03 Power Up's.
•
Parameter 15-04 Over Temp's.
•
Parameter 15-05 Over Volt's.

5.3 Basic Programming

5.3.1 Commissioning with SmartStart

The SmartStart wizard enables fast configuration of basic motor and application parameters.
Motor data is required for the SmartStart setup. The required data are normally available on the motor nameplate.
• At 1st power-up or after initialization of the drive, SmartStart starts automatically.
•
Follow the on-screen instructions to complete commissioning of the drive. Always reactivate SmartStart by selecting Quick
Menu Q4 - SmartStart.
•
For commissioning without using the SmartStart wizard, refer to
Guide.

5.3.2 Commissioning via [Main Menu]

Recommended parameter settings are intended for start-up and checkout purposes. Application settings may vary.
Enter data with power ON, but before operating the drive.
Procedure
1.
Press [Main Menu] on the LCP.
Danfoss A/S © 2023.09
N O T I C E
5.3.2 Commissioning via [Main Menu]
Commissioning
or the Programming
AQ267037536117en-000101 / 130R0083 | 41
