Table 30: Run Permissive
Drive
+24 V
12
+24 V 13
D IN 18
D IN 19
COM 20
D IN
27
D IN
29
D IN 32
D IN 33
D IN
37
+10 V
50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06

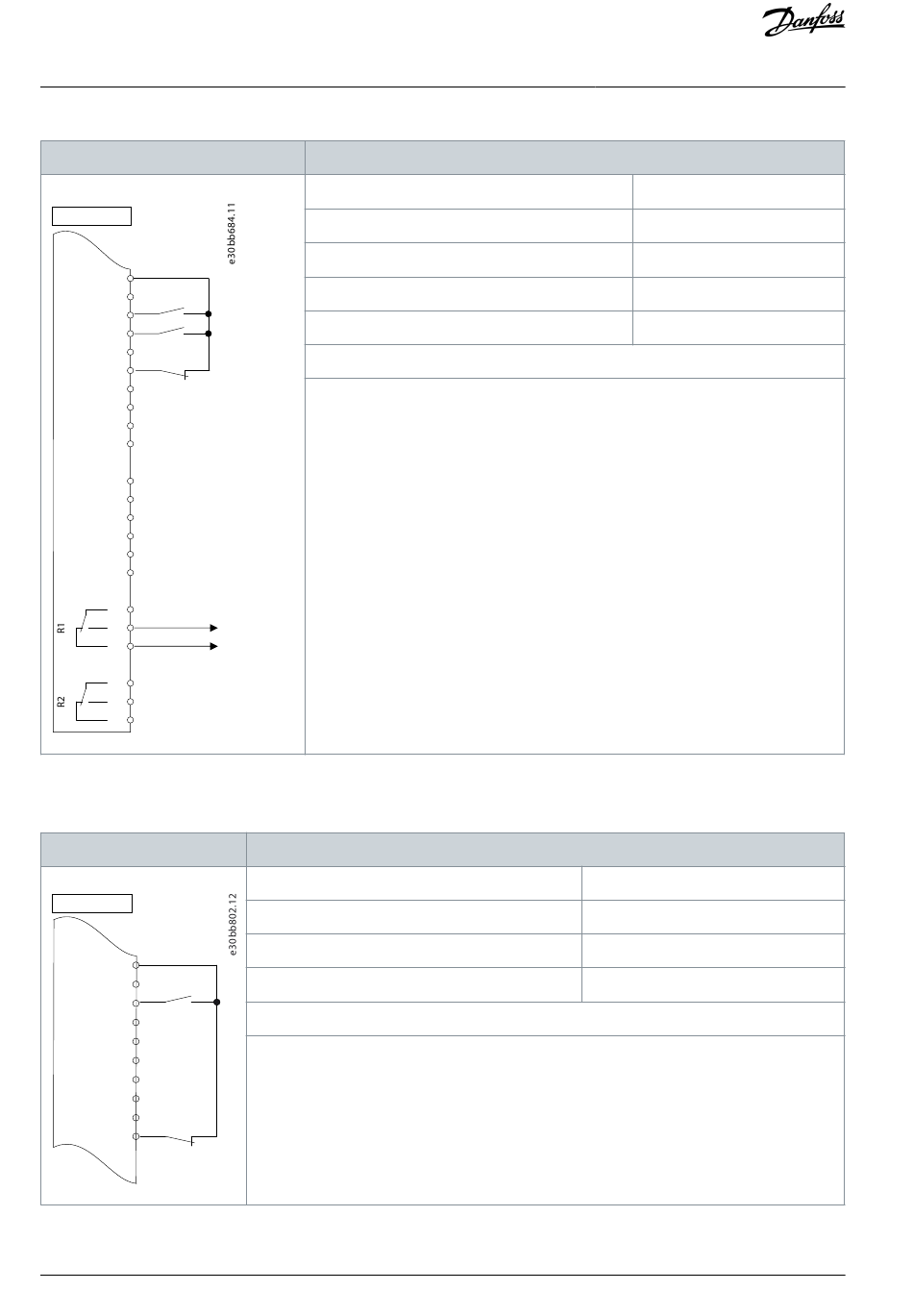

6.1.6 Wiring Configuration: Start/Stop

Table 31: Start/Stop Command with Safe Torque Off Option
Drive
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
54 | Danfoss A/S © 2023.09
Parameter
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-11 Terminal 19 Digital Input
Parameter 5-12 Terminal 27 Digital Input
Parameter 5-40 Function Relay
*=Default value
Notes/comments:
D IN 37 is an option.
Parameter
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
Parameter 5-19 Terminal 37 Safe Stop
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27 Digital Input is set [0] No operation, a jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
Basic I/O Configuration
Setting
[8] Start*
[52] Run permissive
[7] External interlock
[167] Start command act.
Setting
[Start]*
[0] No operation
[1] Safe Stop Alarm
AQ267037536117en-000101 / 130R0083
