7.16. DISASSEMBLING THE POWER SUPPLY BOX

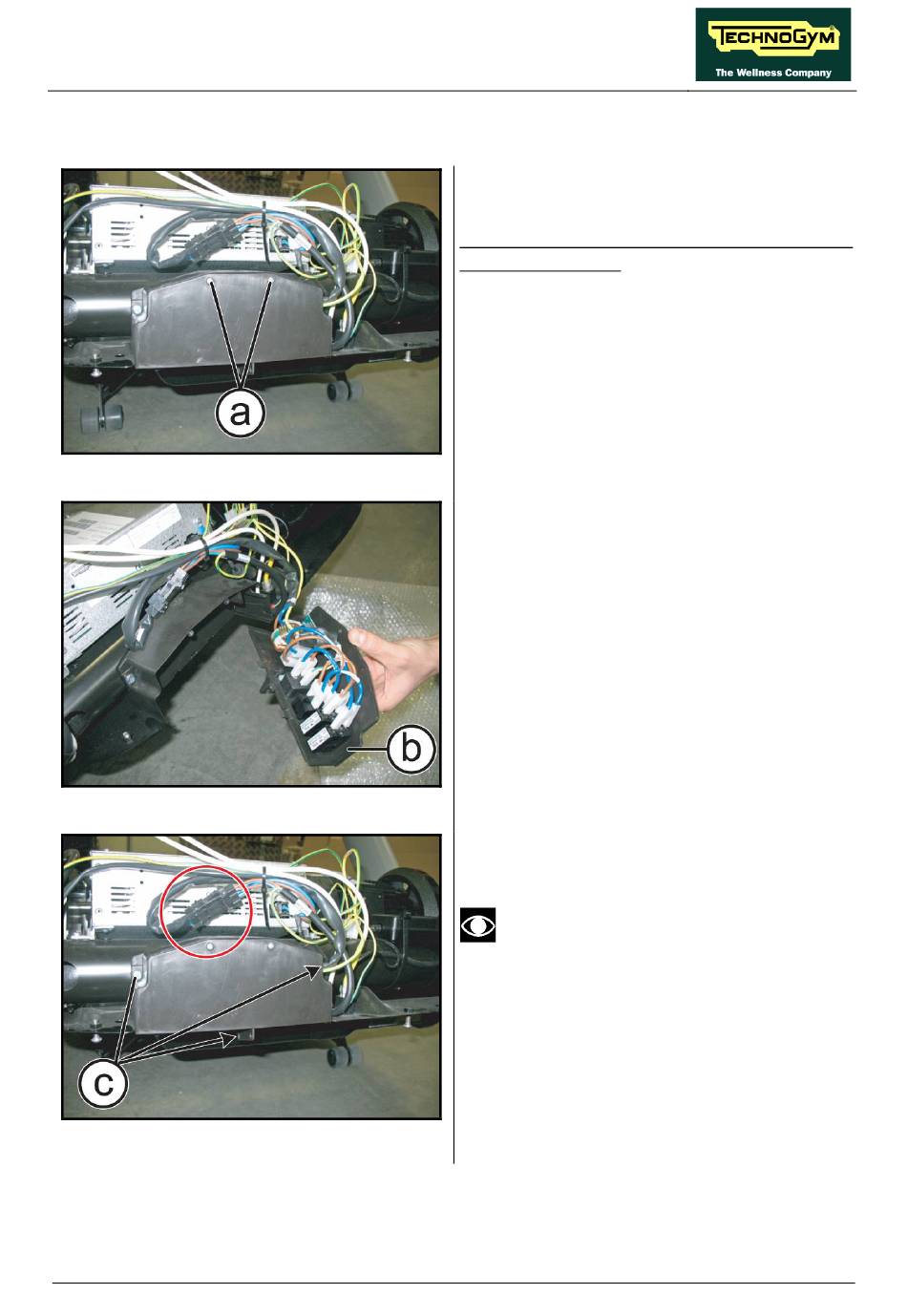

Figure 7-67
Figure 7-68
Figure 7-69
Turn off the machine and unplug the mains lead
from the wall outlet.
Carry out the procedure described in paragraph:
7.14.1. "Disassembling the upper guard".
1. Back off the 2 screws (a) using a medium
Phillips screwdriver.
2. Remove the cover of power supply box (b)
and unplug the faston if necessary.
To completely remove the Power Supply
Box: unplug the cable highlighted in the
figure and back off the 3 screws (c),
using a medium Phillips screwdriver.
To reassemble the Power Supply Box, carry out
the above steps in reverse order.
Page 7.37
