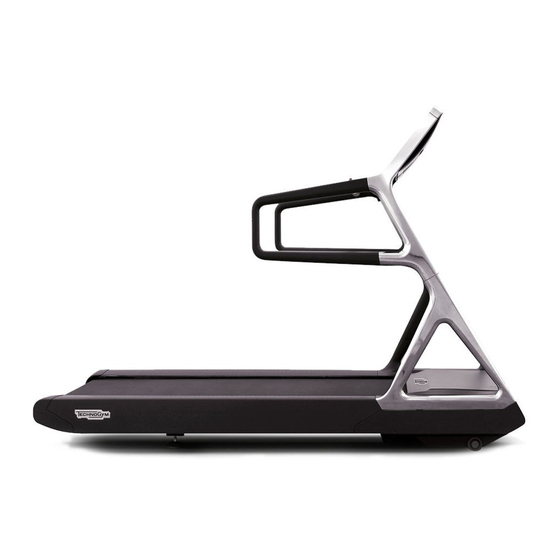

Technogym RUN PERSONAL Manual

Hide thumbs Also See for RUN PERSONAL:
Table of Contents

Advertisement

Quick Links

Download this manual
assembly kit
run personal
V
W
- U
2.0 U
isio
eb
nity
pgrade
i
nstrUctions
r
. 1.1 - (J
2017)
eV
anUary

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUN PERSONAL and is the answer not in the manual?

Questions and answers

Related Manuals for Technogym RUN PERSONAL

Summary of Contents for Technogym RUN PERSONAL

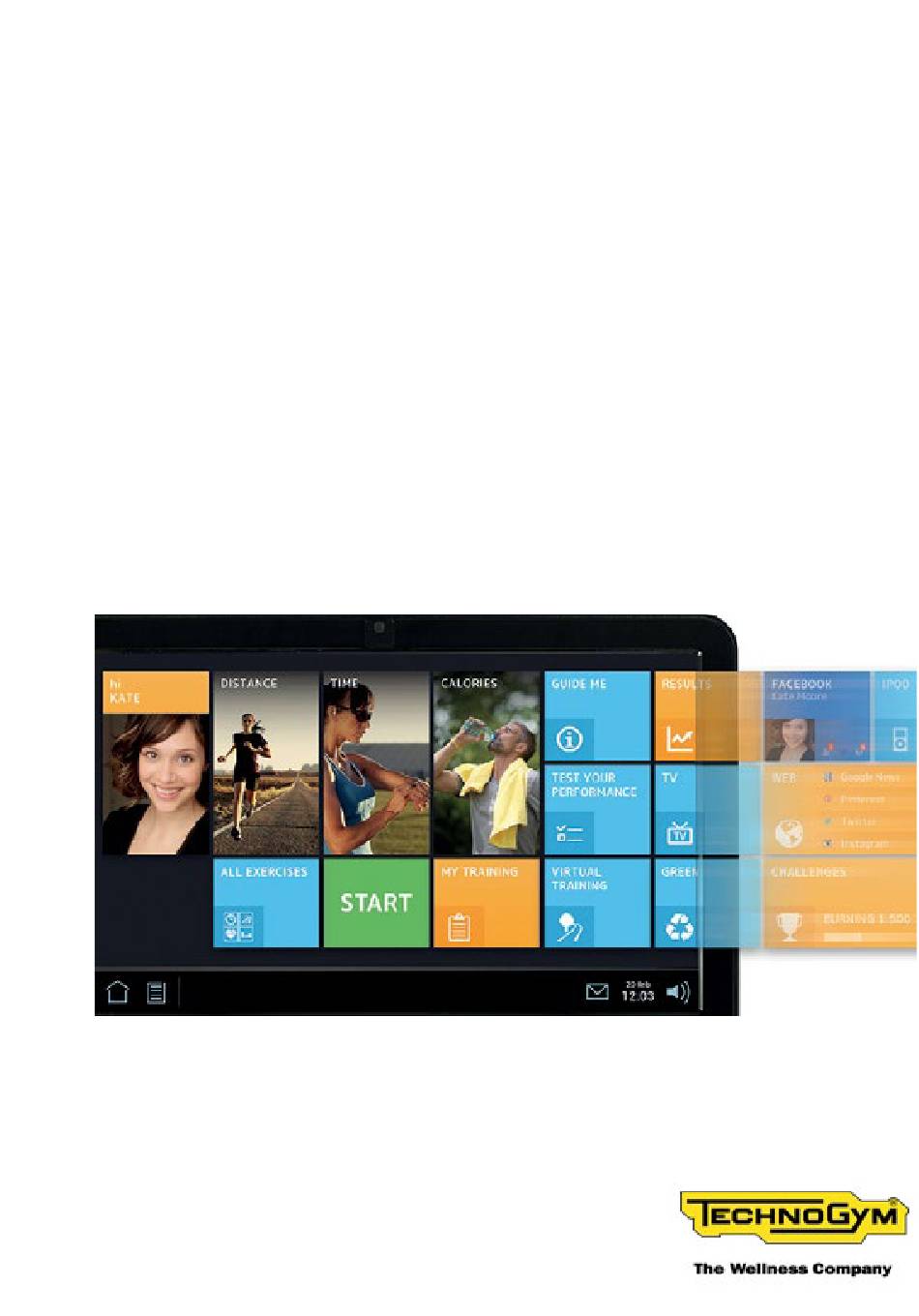

  • Page 1 2.0 U isio nity pgrade nstrUctions . 1.1 - (J 2017) anUary...

  • Page 3: Table Of Contents

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 Index GENERAL WARNINGS......................7 1 . 1 Introduction ....................7 1 . 2 useful advice ....................8 1 . 3 General regulations regarding service work ........8 1 . 4 Personal Protective Equipment ............... 8 RUN PERSONAL EQUIPMENT: VISIOWEB - UNITY 2.0 UPGRADE INSTRUC- TIONS ............................. 9 2 .
  • Page 4 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 e-mail: support@technogym.com Page 4...
  • Page 5 The information contained in this document may be changed without prior notification. Technogym does not issue guarantees of any kind regarding this material. Technogym will not be held responsible for any errors contained herein or for any accidental damage or damage conse- quent to the supply, services or use of this material.
  • Page 6 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 Blank page e-mail: support@technogym.com Page 6...

  • Page 7: General Warnings

    Assembly instructions- Rev. 1.1 GENERAL WARNINGS INTRODUCTION This document has been prepared specifically for Technogym After Sales Service, with the aim of providing authorised personnel with the information for carrying out maintenance and repair operations in the correct manner. A thorough understanding of the technical data contained herein is absolutely fundamental in order for the operator to achieve the highest level in professional training.

  • Page 8: Useful Advice

    Always mark any parts or positions which may be confused with each other at the time of reassembly. Use original Technogym spare parts and lubricants of the recommended brands. Use special tools where specified. Consult the Technical Newsletters and News Flashes, which may contain more up-to-date information on adjustments and maintenance than those contained in this manual.

  • Page 9: Run Personal Equipment: Visioweb - Unity 2.0 Upgrade Instructions

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 RUN PERSONAL EQUIPMENT: VISIOWEB - UNITY 2.0 UPGRADE INSTRUCTIONS Estimated time: 4H. No. of necessary technicians:1. For the following operations: turn off the device and disconnect the power supply plug from the wall socket.
  • Page 10 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 3. Remove the rear guard (C). 4. Using slide pressure, lift the guard as indicated by the arrows in the fig- ure to the side and remove it. e-mail: support@technogym.com Page 10...

  • Page 11: Disassembling The Display

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 DISASSEMBLING THE DISPLAY 1. Remove the screw (1) to the upper right, using a 4 mm hexagonal key. 2. Loosen the two black central screws (3) and (4), using a 5 mm hexagonal key.
  • Page 12 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 6. Loosen the two screws (a) to the right and left that support the magnetic sensor guard, using a 4 mm hexagonal key. 7. Disconnect the cable that prevents the removal of the guard, from the rear of the display.
  • Page 13 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 9. Remove the 4 side screws (a) from the panel assembly, using a ratchet with a 10 mm socket. 10. Disconnect all the cables arriving from the bottom from the panel assembly.

  • Page 14: Disassembling The Central Handlebar And Joystick

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 11. Remove the display assembly. DISASSEMBLING THE CENTRAL HANDLEBAR AND JOYSTICK 1. Remove the screw from the left bottle holder using a 2.5 mm hexagonal key. e-mail: support@technogym.com Page 14...
  • Page 15 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 2. Open the left post upper guard. 3. Slightly force the lower cover of the right and left joystick using a small flat screwdriver. 4. Remove the lower cover - right and left- indi- cated by the red arrow.
  • Page 16 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 5. Remove the screw below the right and left joystick, using a 5 mm hexagonal key. 6. Disconnect the cables that prevent the re- moval of the central handlebar (left side of the equipment).

  • Page 17: Replacing The Receiver And Joystick Signal Cable

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 REPLACING THE RECEIVER AND JOYSTICK SIGNAL CABLE Replace the joystick cable 0WCU0322 with the receiver and joystick signal cable supplied in the kit 0WCU0777. 1. Use electrical tape to fasten the 24 pin con- nector (12x2) to the cable, to make it easier for the cable to exit from the side frame.
  • Page 18 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 6. Connect the cables that exit the central han- dlebar (left side) with the connectors of the ca- ble 0WCU0777: light blue female faston cable and 5x2 pin connector. 7. Refit the central handlebar, following the procedure described in this paragraph in re- verse order.

  • Page 19: Assembling The Display Magnetic Sensor And Headphone Board

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 ASSEMBLING THE DISPLAY MAGNETIC SENSOR AND HEADPHONE BOARD 1. Fasten the new headphone board 0WQ00507 to the new guard W0008011, with the two new screws 0Z000145, using a medium Phillips screwdriver. 2. Fasten the two display magnetic sensors 0WR00686 to the guard, using two screws 0ZV00090.

  • Page 20: Reassembling The Unity Display And W0008011 Guard

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 3. Connect HIGH cable 0WCU0931xx to the UNITY MINI display board. REASSEMBLING THE UNITY DISPLAY AND W0008011 GUARD 1. Position the UNITY display R0007063 to the frame. 2. Snap in the display on the bay-...
  • Page 21 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 3. Make the cables coming from the bottom, from the rear of the display, exit, as shown in the figure. 4. Drive the safety screws on the back of the display. e-mail: support@technogym.com...
  • Page 22 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 5. Reposition the guard W0008011 below the display. Pay attention when positioning the cables. No cable must be in front of the monitor. The figure to the side shows the cable positioned incorrectly.
  • Page 23 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 6. Connect the headphone/amplifier cable to the headphone board, fastened to the guard. e-mail: support@technogym.com Page 23...

  • Page 24: Connecting Cables To The Unity Display

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 7. Fasten the two screws (A) on the rear of the display. CONNECTING CABLES TO THE UNITY DISPLAY After disconnecting cables from the Display, do not connect the cable 0WCU0390xx to any connector.
  • Page 25 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 2. Connect the AV IN cable to the patch connector that connects it to the display board. e-mail: support@technogym.com Page 25...
  • Page 26 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 3. Connect the blue faston of the power supply cable & LAN to the metal display plate. 4. Connect the ground cables A ( power sup- ply & LAN cable) and B (joystick and receiv- er signal cable) using the male male faston 0WCU0937xx, supplied in the kit.
  • Page 27 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 5. Connect the power supply & LAN cable to the display board. 6. Connect the connectors of the run high kit cable 0WCU0931xx to the two connectors of the magnetic sensors. e-mail: support@technogym.com...
  • Page 28 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 7. Connect the receiver and joystick signal cable 0WCU0777 to the display board. 8. Connect the power supply and LAN cable to the run high kit cable 0WCU0931xx. e-mail: support@technogym.com Page 28...

  • Page 29: Disassembling And Wiring The Low Kit

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 9. Reorganise the arrangement of the cables to reduce the dimensions, using the provided cable ties. DISASSEMBLING AND WIRING THE LOW KIT 1. Unscrew the 2 screws (A) located at the bot- tom of the guard, using a 4 mm hexagonal key.
  • Page 30 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 2. Remove the guard (B) lifting it in the direc- tion of the arrow, paying attention to disconnect the LED connector for the secondary switch on. View of the low kit. If necessary during reassembly, use a...
  • Page 31 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 3. Disconnect the additional power supply. It’s also possible to remove the addition- al power supply.. A: run low kit cable alewin 0WCU0932xx; B: adapter cable for alemet 0WCU0799xx. For ALEMET equipment, the run low kit cable alewin and the adapter cable alemet must be used.

  • Page 32: Reassembling The Display Guard And Low Kit

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 5. Connect the connector that arrives from the display to the run low kit cable alewin and the adapter cable for alemet. 6. Connect the adapter cable connector for alemet to the low kit.

  • Page 33: 2.10 Operating Test

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 2.10 OPERATING TEST Perform the following operating tests: 1. Connect the power supply and turn on the equipment. 2. Access the service menu: press next to the home box for a few seconds. Enter 2501. In the DE- VICE section, check that the equipment's serial number is correct.
  • Page 34 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 Blank Page e-mail: support@technogym.com Page 34...

  • Page 35: List Of Changes For Manual Version

    RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 LIST OF CHANGES FOR MANUAL VERSION The main changes made to this manual, are listed below in chronological order. MANUAL VERSION 1.0 Not applicable. First release of the document. MANUAL VERSION 1.1 Modified and enlarged the pictures.
  • Page 36 RUN PERSONAL-UPGRADE VISIOWEB-UNITY 2.0 Assembly instructions- Rev. 1.1 Blank page. e-mail: support@technogym.com Page 36...
  • Page 38 TECHNOGYM S.p.A. Via Calcinaro, 2861 - 47521 Cesena (FC) - Operational Headquarters ITALY Tel.: +39-0547-650638 Fax: +39-0547-650150 e-mail: support@technogym.com 0SM01003AA-UK...
