7.18. DISASSEMBLING THE ELEVATION MOTOR

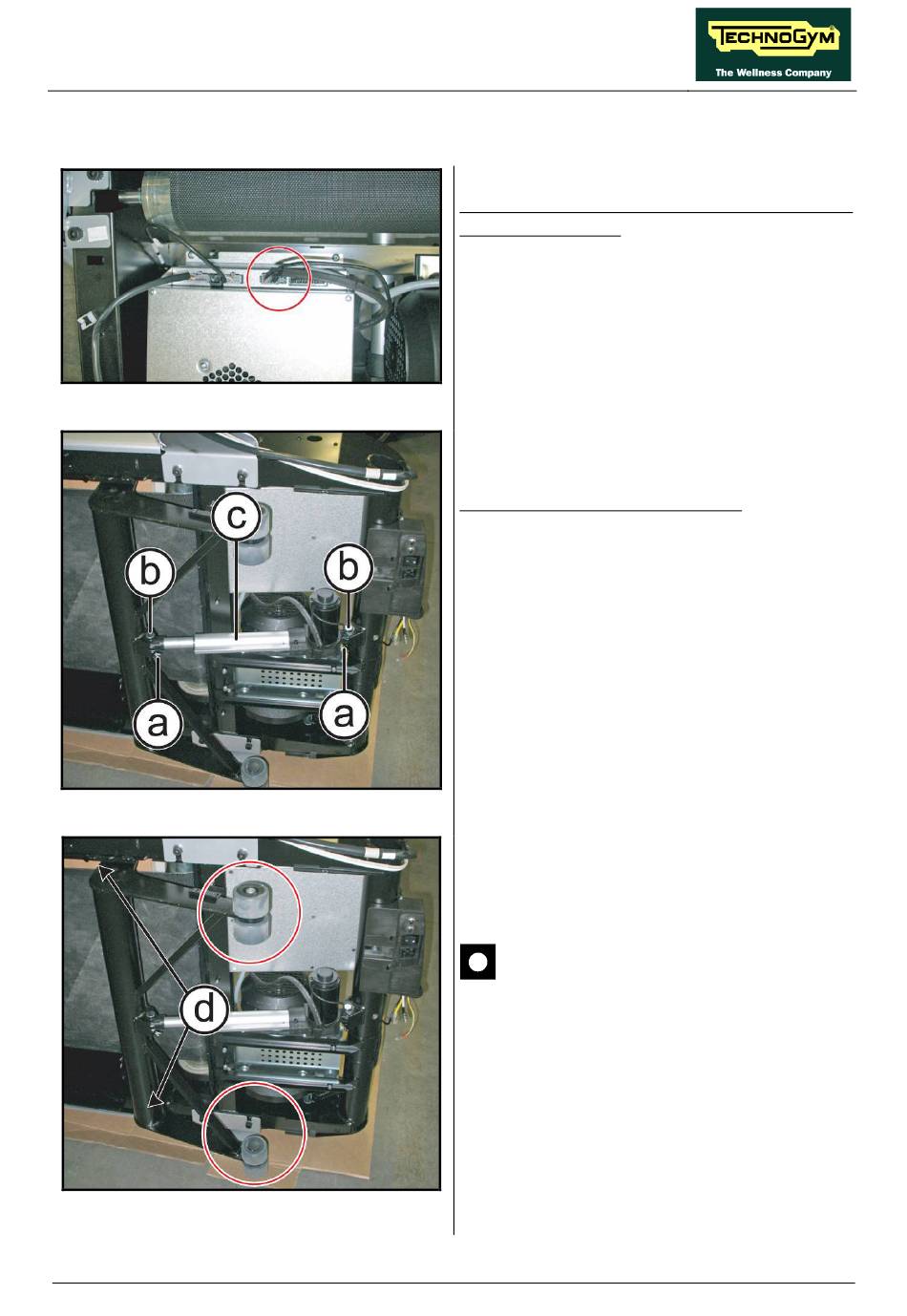

Figure 7-72
Figure 7-73
Figure 7-74
Turn off the machine and unplug the mains lead
from the wall outlet.
Carry out the procedure described in paragraph:
7.14.2. "Disassembling the lower guard".
1. Unplug the elevation motor connector from
the Driver.
Turn the machine over on one side:
2. Remove the 2 split pins (a) and remove the
pin (b) that fix the elevation motor to the
frame.
3. Remove the elevation motor (c).
To reassemble the Elevation Motor, carry out the
above steps in reverse order.
CAUTION: In case of elevation carriage
disassembly, during the reassembly lock
down the screws (d) using a torque
wrench set for 90Nm; and the carriage
wheels fixing screws, highlighted in the
figure, using a torque wrench set for
40Nm.
Page 7.39
