7.14.2. D
ISASSEMBLING THE LOWER GUARD
Figure 7-61
Figure 7-62
Figure 7-63
Page 7.34
RUN NOW Excite +: Technical Service guide - rev. 6.2
Turn off the machine and unplug the mains lead
from the wall outlet.
Carry out the procedure described in paragraph:
7.14.1. "Disassembling the upper guard".

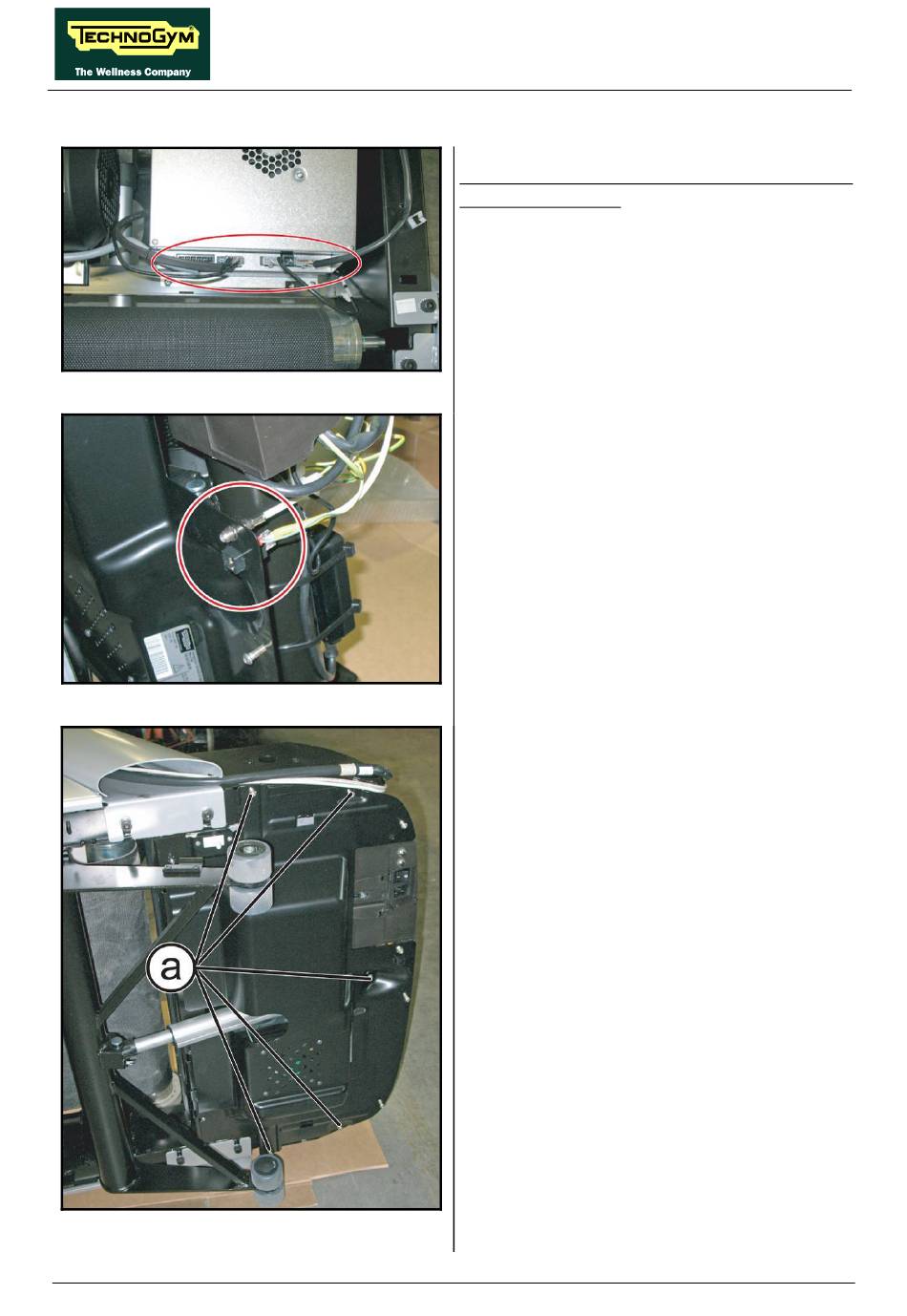

1. Unplug the micro connector and the Fan
connector highlighted at the side from the
Driver box.
2. To make the procedure easier, turn the
machine over on one side.
3. Unplug the cables highlighted in the figure,
using a 11mm wrench for the antenna cable.
4. Back off the 5 screws (a) using a 4mm
hexagonal wrench.
5. Remove the lower guard.
To reassemble the Lower Guard, carry out the
above steps in reverse order.
