Figure 7.21-2
Figure 7.21-3
Figure 7.21-4
Page 7.44
RUN NOW Excite +: Technical Service guide - rev. 6.2

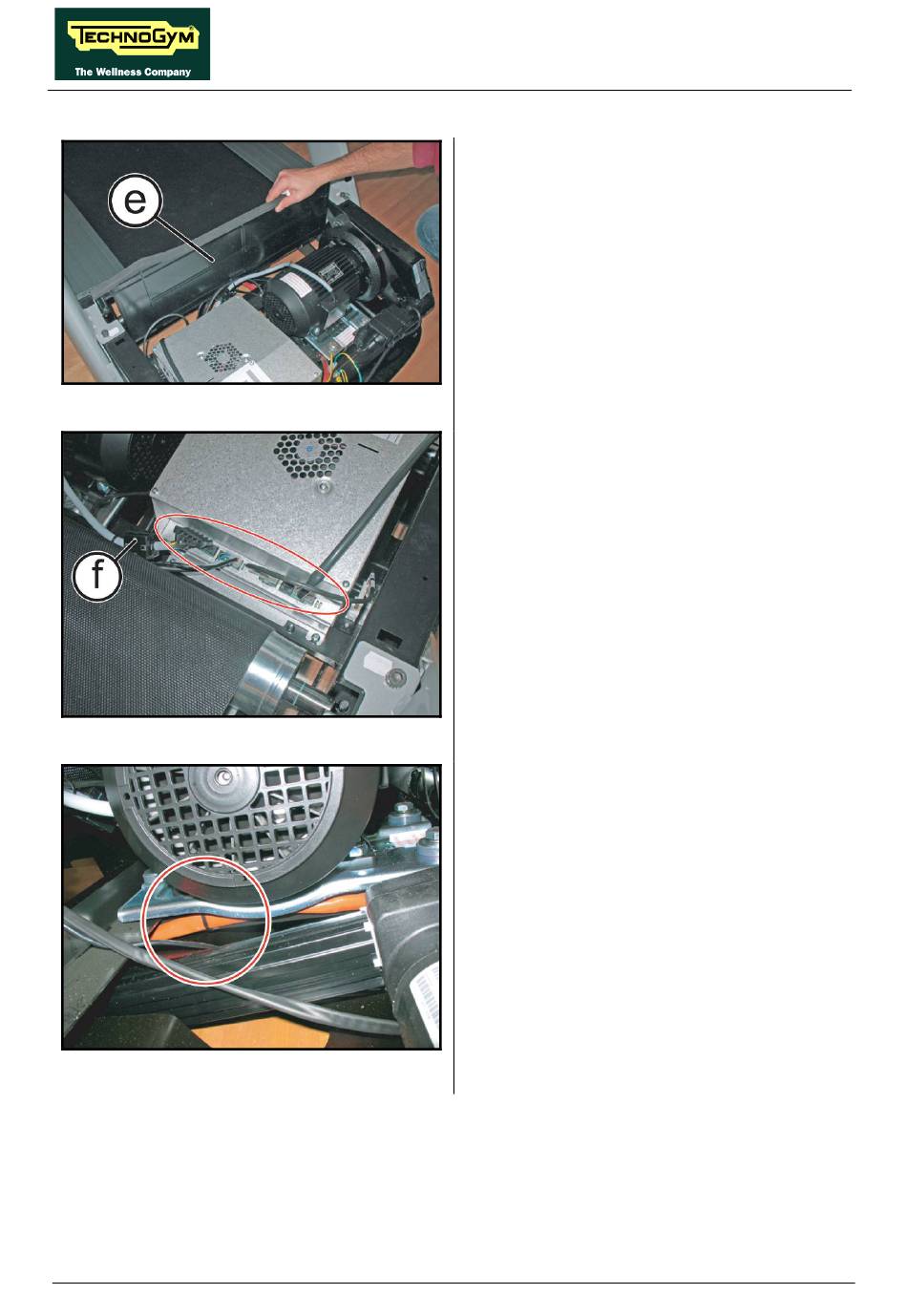

4. Remove the dust-guard (e).
5. Remove the ferrite (f) from the motor cable
and disconnect the other cables, highlight in
the figure, from the autotransformer.
Carry out the procedure described in paragraph:
7.15. "Disassembling the Lower Kit".
6. Cut the cable-tie highlight in the figure at the
side, paying attention to not damage the
autotransformer cable.
Continued on following page...
