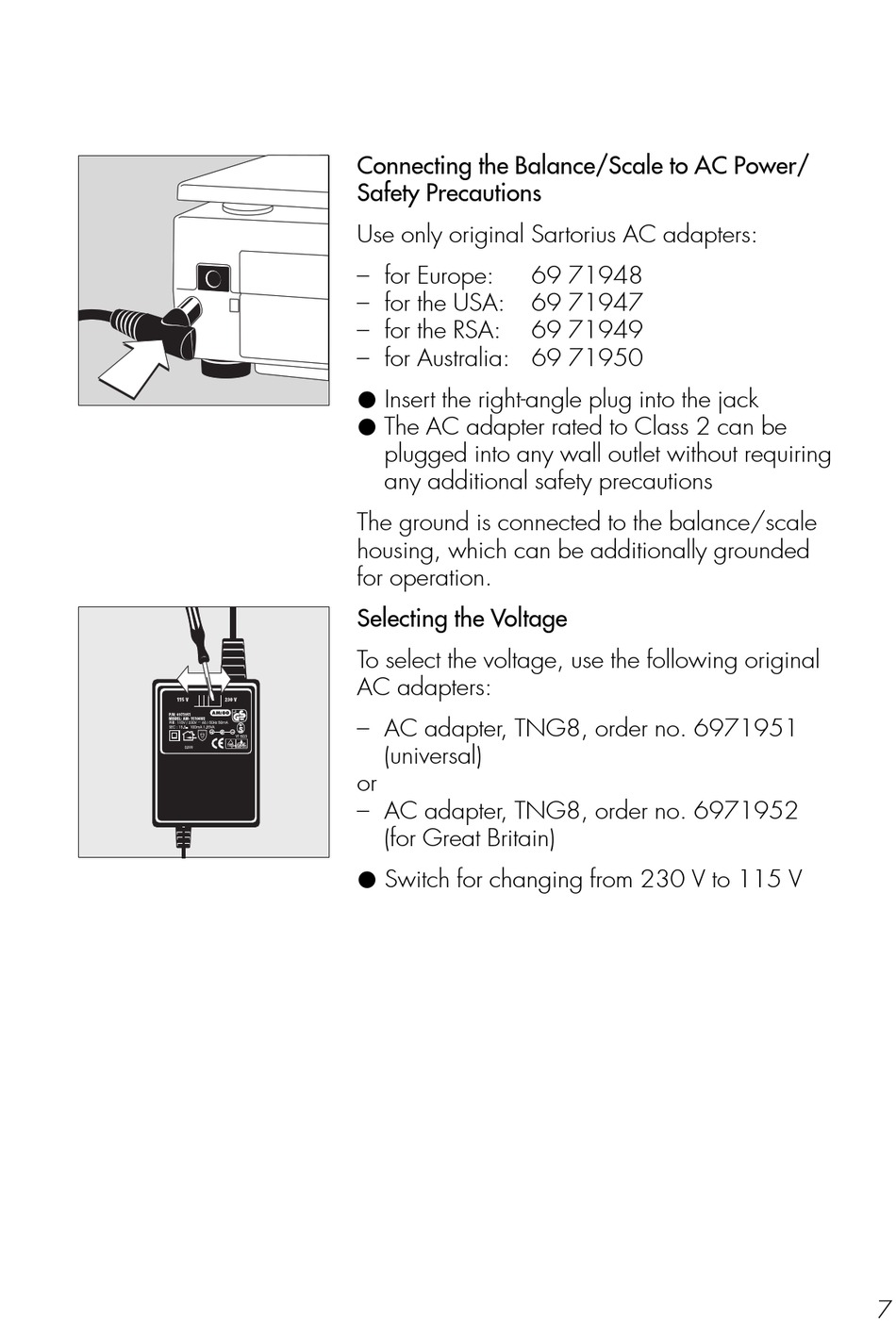

Sartorius Basiclite Installation And Operating Instructions Manual page 7

Connecting the Balance/Scale to AC Power/
Safety Precautions
Use only original Sartorius AC adapters:
– for Europe:
– for the USA:
– for the RSA:
– for Australia: 69 71950
§ Insert the right-angle plug into the jack
§ The AC adapter rated to Class 2 can be
plugged into any wall outlet without requiring
any additional safety precautions
The ground is connected to the balance/scale
housing, which can be additionally grounded
for operation.
Selecting the Voltage
To select the voltage, use the following original
AC adapters:
– AC adapter, TNG8, order no. 6971951
(universal)
or
– AC adapter, TNG8, order no. 6971952
(for Great Britain)
§ Switch for changing from 230 V to 115 V
69 71948
69 71947
69 71949
7
