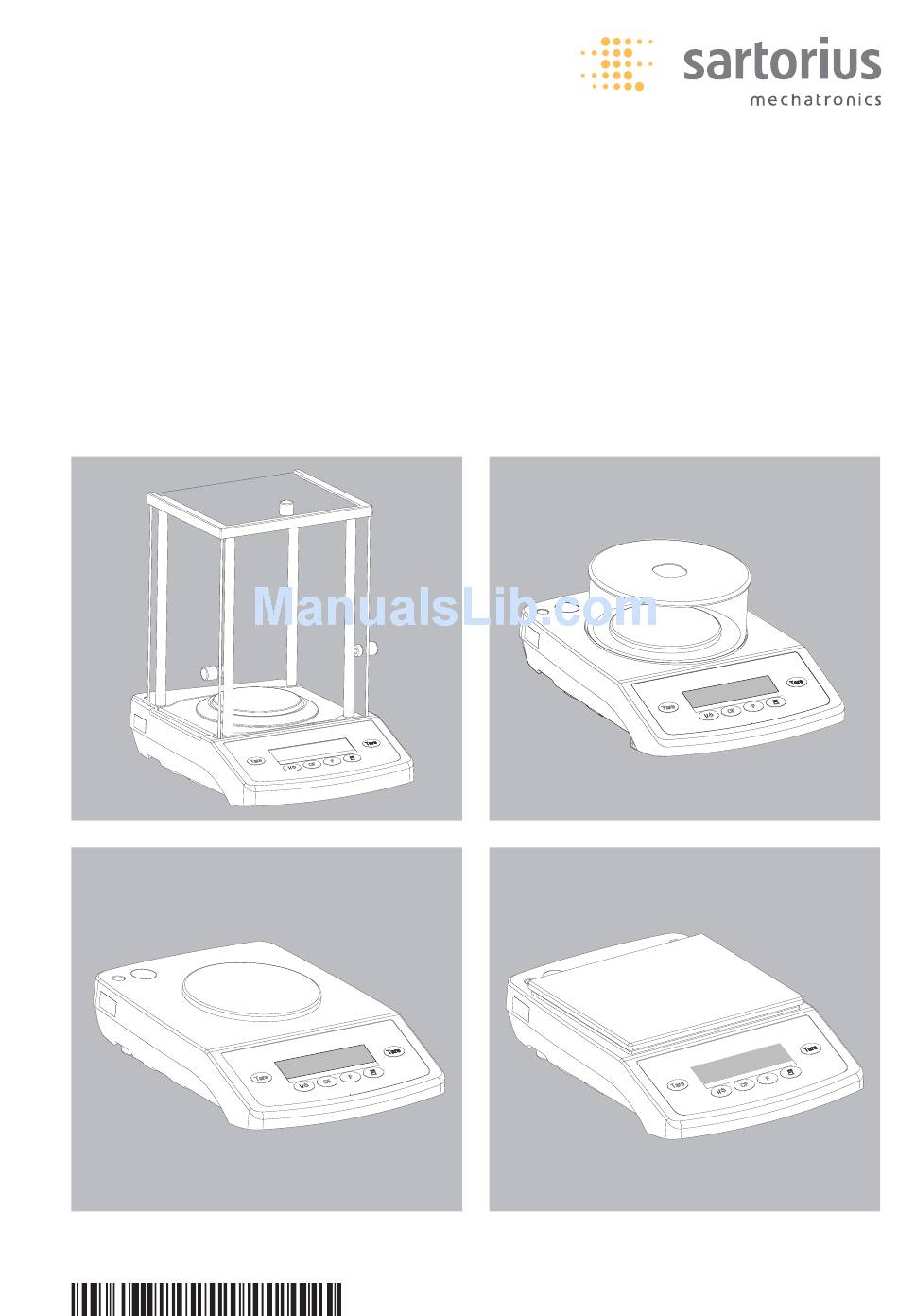

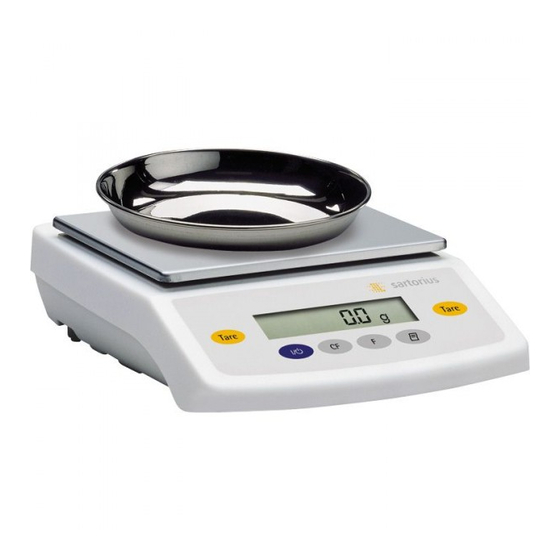

- Page 1 Operating Instructions Sartorius Talent, M-power Sartorius Gem, Gold Electronic Analytical and Precision Balances and Precious Metal Scales 98648-012-13...
-
Page 2: Warnings And Safety Precautions
Instructions for Recycling . . . . . 23 Do not try to solve any problems on your own. The operator shall be responsible for any mod- Overview ifications to Sartorius equipment and for any Specifications . . . . . . . . . . . . 24 connections of cables or equipment not Accessories (Options) . . . . . . . . 33 supplied by Sartorius and must check and, Declaration of Conformity . . . . . . -
Page 3: Getting Started
Getting Started Storage and Shipping Conditions Additionally supplied with – Do not expose the balance/scale to TE313S, TE153S, GD252 models: – Glass draft shield with cover extreme temperatures, blows, shocks, vibration or moisture. Additionally supplied with Unpacking the Balance/Scale GD252-DS, GD502-DS models: After unpacking the balance/scale, –... - Page 4 Setting up the Balance/Scale Balances/scales with a draft shield chamber with sliding doors Place the components listed below inside the chamber in the order given: – Shield plate – Shield ring (not for models TE313S-DS, TE153S-DS) – Pan support – Weighing pan –...
- Page 5 Connecting the Balance/Scale to AC Power/ Safety Precautions Use only original Sartorius AC adapters: – for Europe: 6971948 Insert the right-angle plug into the jack Plug AC adapter into electrical outlet The ground terminal is connected to the balance/scale housing, which can be additionally grounded for operation.
- Page 6 Selecting the Line Voltage (Mains Voltage) (Optional) Use the following original AC adapters for selecting the line voltage: – AC adapter TNG8 order no. 6971951 (universal) – AC adapter TNG8 order no. 6971952 (for the U.K.) Use the switch to toggle between 230 V and 115 V Leveling the Balance/Scale (only for models AZ…, GD…, GE3102, GE2102, GE1302, TE…-L, TE214S, TE124S, TE64, TE313S,...
-
Page 7: Operation
Operation Overview of Display and Operating Elements Tare Tare Position Designation Position Designation Weight units Delete (Clear Function) Calculated-value indicator This key is generally used to (i.e., not a weight value) cancel functions: Taring – Quit application program Symbol: “Printing mode active” –... -
Page 8: Basic Weighing Function
Basic Weighing Function Preparation Turn on the balance/scale: Press e To change configurations: See the chapter entitled “Configuring the Balance/Scale” $ To tare the balance/scale: Press t Additional Functions: To turn off the balance/scale: Press e Warmup Time To ensure accurate results, the balance must warm up for 30 minutes before operaion. -
Page 9: Calibration/Adjustment
Calibration/Adjustment Available Features Calibration/adjustment can only be performed when – there is no load on the balance/scale, – the balance/scale is tared, – the internal signal is stable. If these conditions are not met, an error message is displayed. Otherwise, the weight required for calibration/adjustment is displayed (see “Accessories”... -
Page 10: Application Programs
Application Programs Net-Total Formulation/Second Tare Memory With this application program you can weigh in components for formulation of a mixture. Preparation Configure the Net-Total Formulation/Second Tare Memory application in the operating menu: See “Configuring the Balance/Scale.” Menu code: 2.1.3 Example Step Key (or instruction) Display/Printout 65.0... -
Page 11: Counting
Counting $ Reference sample quantity: Purpose With the Counting program you can deter- Code 3. 3. 1 5 pcs mine the number of parts that each have Code 3. 3. 2 10 pcs (factory setting) approximately equal weight. Code 3. 3. 3 20 pcs Code 3. -
Page 12: Weighing In Percent
Weighing in Percent $ Reference percentage: Purpose This application program allows you to Code 3. 3. 1 obtain weight readouts in percent which are Code 3. 3. 2 10 % (factory setting) in proportion to a reference weight. Code 3. 3. 3 20 % Code 3. -
Page 13: Weigh Averaging
Weigh Averaging $ Number of subweighs for weigh Purpose Use this program to determine weights under averaging: unstable ambient conditions. In this program, 5 subweighs 3. 3. 1 the balance/scale calculates the weight as 3. 3. 2 10 subweighs the average value from a defined number of (factory setting) individual weighing operations. -
Page 14: Configuring The Balance
Toggle Between Weight Units With this application program you can toggle the display of a weight value back and forth between two weight units. Configure the “Toggle Weight Units” application in the operating menu: See “Configuring the Balance/Scale.” Menu code 2.1. 2 Menu code Unit Conversion factor... - Page 15 Configuring the Balance/Scale Setting the Parameters (Menu Codes) You can configure your balance/scale to meet individual requirements by selecting from the parameters available in the menu. Example: Adapt the balance/scale to unstable ambient conditions Menu code 1. 1. 4 Step Key (or instruction) Display 1.
- Page 16 Balance/Scale Operating Menu (Overview) ο Factory setting √ User setting Menu Balance/scale 1.1. Adapt filter 1.1.1 Minimum vibration functions 1.1.2 ο Normal vibration 1.1.3 Strong vibration 1.1.4 Extreme vibration 1.3. Stability range 1.3.1 1/4 digit 1.3.2 1/2 digit 1.3.3 1 digit 1.3.4 ο...
- Page 17 5. Data interface 5.2 Parity 5.2.1 Mark 5.2.2 Space 5.2.3 ο Odd 5.2.4 Even No. of stop bits 5.3.1 ο 1 stop bit 5.3.2 2 stop bits Handshake mode 5.4.1 Software 5.4.2 Hardware 2 char. after CTS 5.4.3 ο Software 1 char.
-
Page 18: Iso/Glp-Compliant Printout
6 1 3, 6 1 4 (automatic ! The record can only be output to printout) and 7 1 1 a Sartorius data printer YDP20-0CE. Function Keys Press p to output header and first measured value. > Header is output the first time p is... - Page 19 The ISO/GLP-compliant record can contain the following lines: Dotted line -------------------- Date/time (beginning of measurement) 17-Jan-2003 10:15 Balance/scale manufacturer SARTORIUS AG Balance/scale model Mod. TE6100 Balance/scale serial number Ser. no. 10105355 Software version Ver. no. 00-19-41 Dotted line -------------------- Measurement series no.
-
Page 20: Data Interface
The many and versatile properties of these balances/scales can be fully utilized for printing out records of the results when you Pin Assignment Chart, 25-pin connect your balance/scale to a Sartorius female interface connector, RS-232: data printer. The recording capability for Pin 1: Shield... -
Page 21: Error Codes
The weight readout The balance/scale has not been Calibrate/adjust the balance/scale is obviously wrong calibrated/adjusted The balance/scale was not Tare the balance/scale tared before weighing If any other errors occur, contact your local Sartorius Service Center! -
Page 22: Care And Maintenance
Care and Maintenance Service Regular servicing by a Sartorius technician will extend the service life of your balance/scale and ensure its continued weighing accuracy. Sartorius can offer you service contracts, with your choice of regular mainte- nance intervals ranging from 1 month to 2 years. The... -
Page 23: Instructions For Recycling
AC power immediately > Lock the equipment in a secure place to ensure that it cannot be used for the time being In this case, notify your nearest Sartorius Service Center or the International Technical Support Unit based in Goettingen, Germany. -
Page 24: Specifications
Overview Specifications Talent Series Model TE214S TE124S TE64 Weighing capacity Readability Tare range (subtractive) <±mg Repeatability <±mg Linearity Operating temperature range +10…+30 °C (50°F to 86°F) Allowable ambient operating temperature +5…+40°C (41°F to 104°F) Sensitivity drift –6 –6 –6 >±/K within +10…+30 °C (50°F–86°F) - Page 25 Gem Series Model GD603 GD103 GD502-DS GD252, GD252-DS Weighing capacity 605 ct/121 g 185 ct/37 g 505 ct/101 g 255 ct/51 g Readability 0.001 ct/0.2 mg 0.001 ct/0.2 mg 0.005 ct 0.005 ct Tare range (subtractive) 605 ct/121 g 185 ct/37 g 505 ct/101 g 255 ct/51 g Repeatability...
- Page 26 Talent and Gold Series Model TE313S, TE153S, TE3102S, GE2102 TE313S-DS TE153S-DS GE3102 Weighing capacity 3,100 2,100 Readability 0.001 0.001 0.01 0.01 Tare range (subtractive) 3,100 2,100 <±g Repeatability 0.001 0.0015 0.01 0.015 <±g Linearity 0.002 0.003 0.02 0.04 Operating temperature range +10…+30 °C (50°...
- Page 27 Talent and Gold Series Model TE1502S GE1302 GE812 GE612, TE612, TE612-L Weighing capacity 1,500 1,300 Readability 0.01 0.01 0.01 0.01 Tare range (subtractive) 1,500 1,300 <±g Repeatability 0.015 0.015 0.01 0.01 <±g Linearity 0.03 0.03 0.02 0.02 Operating temperature range +10…+30 °C (50°...
- Page 28 Talent and Gold Series Model GE412, TE412, GE212, TE212, GE7101 TE6101, TE412-L TE212-L TE6101-L Weighing capacity 7,100 6,100 Readability 0.01 0.01 Tare range (subtractive) 7,100 6,100 <±g Repeatability 0.01 0.01 <±g Linearity 0.02 0.02 Operating temperature range +10… +30°C (50° to 86°F)
- Page 29 Talent and Gold Series Model GE4101, GE2101, GE811 TE601, TE12000, TE6100, TE4100, TE4101, TE2101, …-L …-L …-L …-L …-L …-L Weighing capacity 4,100 2,100 12,000 6,100 4,100 Readability Tare range (subtractive) 4,100 2,100 12,000 6,100 4,100 Repeatability <±g Linearity <±g Operating temperature range +10…+30°C (50°F to 86°F)
- Page 30 Specifications M-power Series Model AZ214 AZ124 AZ64 Weighing capacity Readability Tare range (subtractive) <±mg Repeatability <±mg Linearity Operating temperature range +10…+30 °C (50°F to 86°F) Allowable ambient operating temperature +5…+40°C (41°F to 104°F) Sensitivity drift –6 –6 –6 >±/K within +10…+30 °C (50°F–86°F) 2 ·...
- Page 31 M-power Series Model AZ313 AZ153 AZ3102 AZ1502 AZ612 Weighing capacity 3,100 1,500 Readability 0.001 0.001 0.01 0.01 0.01 Tare range (subtractive) 3,100 1,500 <±g Repeatability 0.003 0.003 0.015 0.015 0.015 Linearity <±g 0.004 0.004 0.03 0.03 0.03 Operating temperature range +10…+30 °C (50°...
- Page 32 M-power Series Model AZ212 AZ6101 AZ4101 AZ2101 AZ601 Weighing capacity 6,100 4,100 2,100 Readability 0.01 Tare range (subtractive) 6,100 4,100 2,100 <±g Repeatability 0.015 Linearity <±g 0.03 Operating temperature range +10… +30°C (50° to 86°F) Allowable ambient operating temperature +5… +40°C (41°F to 104°F) Sensitivity drift –5 –5...
-
Page 33: Accessories (Options)
20 or 40, depending on balance/scale model) SartoConnect data transfer program for interfacing YSC01L a Sartorius balance to a PC with a Windows 95/98 or NT operating system This software enables you to transfer the data recorded by your balance to any PC application program (e.g., Excel). - Page 34 Product Order No. In-use dust cover – Only over operating elements for models 6960TE01 GD…, AZ214, AZ124, AZ64, TE214S, TE124S, TE64, TE…-DS – for models with a rectangular weighing pan 6960TE03 – for models with a round weighing pan 6960TE02 Attaching the in-use dust cover to models with a glass draft shield: –...
- Page 37 Sartorius AG Weender Landstrasse 94–108 37075 Goettingen, Germany Phone +49.551.308.0 Fax +49.551.308.3289 www.sartorius-mechatronics.com Copyright by Sartorius AG, Goettingen, Germany. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior written permission of Sartorius AG.
