g

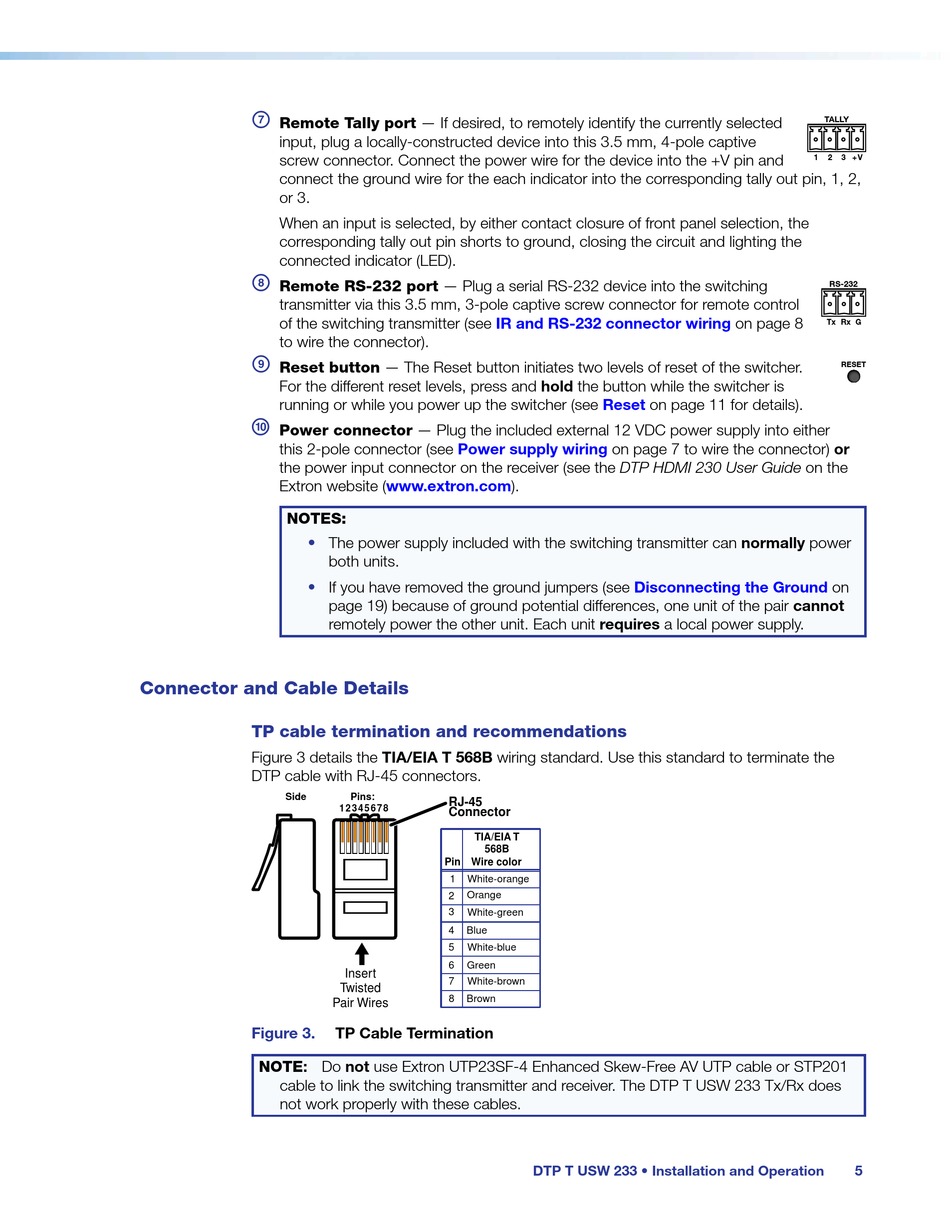

Remote Tally port — If desired, to remotely identify the currently selected
input, plug a locally-constructed device into this 3.5 mm, 4-pole captive
screw connector. Connect the power wire for the device into the +V pin and
connect the ground wire for the each indicator into the corresponding tally out pin, 1, 2,
or 3.
When an input is selected, by either contact closure of front panel selection, the
corresponding tally out pin shorts to ground, closing the circuit and lighting the
connected indicator (LED).
h
Remote RS-232 port — Plug a serial RS-232 device into the switching
transmitter via this 3.5 mm, 3-pole captive screw connector for remote control
of the switching transmitter (see
to wire the connector).
i
Reset button — The Reset button initiates two levels of reset of the switcher.
For the different reset levels, press and hold the button while the switcher is
running or while you power up the switcher (see
j
Power connector — Plug the included external 12 VDC power supply into either
this 2-pole connector (see
the power input connector on the receiver (see the DTP HDMI 230 User Guide on the
Extron website (www.extron.com).
NOTES:
•
•
Connector and Cable Details
TP cable termination and recommendations
Figure 3 details the TIA/EIA T 568B wiring standard. Use this standard to terminate the
DTP cable with RJ-45 connectors.
Side
Figure 3.
NOTE: Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201
cable to link the switching transmitter and receiver. The DTP T USW 233 Tx/Rx does
not work properly with these cables.
IR and RS-232 connector wiring
Power supply wiring
The power supply included with the switching transmitter can normally power
both units.
If you have removed the ground jumpers (see
page 19) because of ground potential differences, one unit of the pair cannot
remotely power the other unit. Each unit requires a local power supply.
Pins:
RJ-45
1 2 3 4 5 6 7 8
Connector
TIA/EIA T
568B
Pin
Wire color
1
White-orange
Orange
2
3
White-green
4
Blue
5
White-blue
6
Green
Insert
7
White-brown
Twisted
8
Brown
Pair Wires
TP Cable Termination
Reset
on page 11 for details).
on page 7 to wire the connector) or
Disconnecting the Ground
DTP T USW 233 • Installation and Operation
TALLY
1
2
3
+ V
RS-232
on page 8
Tx
Rx
G
RESET
on
5
