Top View

Processor
4 DIMM Slots
1 M.2 Slot
5 System Fans
Feature Description
Dual redundant 800 W module (SYS-110D-4C/8C/14C/16C/20C-FRAN8TP) or
Power Supply
Dual redundant 600 W modules (SYS-110D-4C/8C/14C/16C/20C-FRDN8TP)
M.2 slot Single PCIe 3.0 x4/SATA3 M.2
SuperDOM ports Disk-on-Module port allows for flash cards to be mounted directly on the motherboard
DIMM slots Dual in-line memory module (DIMM) slots
Processor Intel® Xeon D Ice Lake 4/8/14/16/20 Cores Processor from 65 W to 120 W
System fans Hot-swappable, counter-rotating fans used to provide cooling for the system

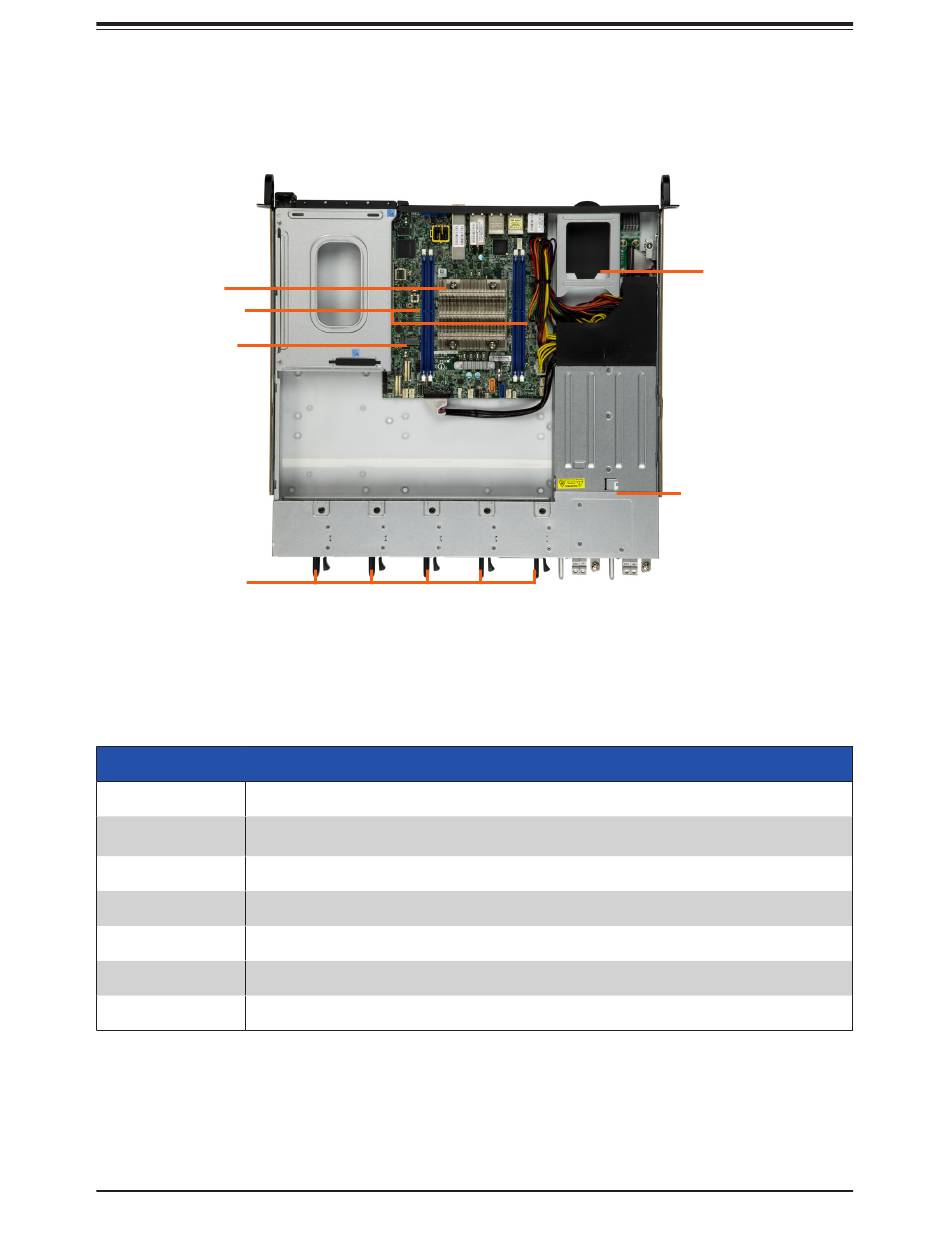

Figure 1-5. System: Top View
System Features: Top
14
Chapter 1: Introduction
Fixed HDD Bays
Power Supply Module(s)
