Top View

Slots 1 and 2:
One PCIe 5.0 x16 (FHFL) in slot 1 -or-
One PCIe 5.0 x8 (FHFL) in slot 1 and one
PCIe 5.0 x8 (FHFL) in slot 2
Slot 3: One PCIe 4.0 x4 (in x16) LP
Four DIMM Slots
Feature
Power Supply
M.2 slots
DIMM slots
Processor
Expansion Slots
System fans

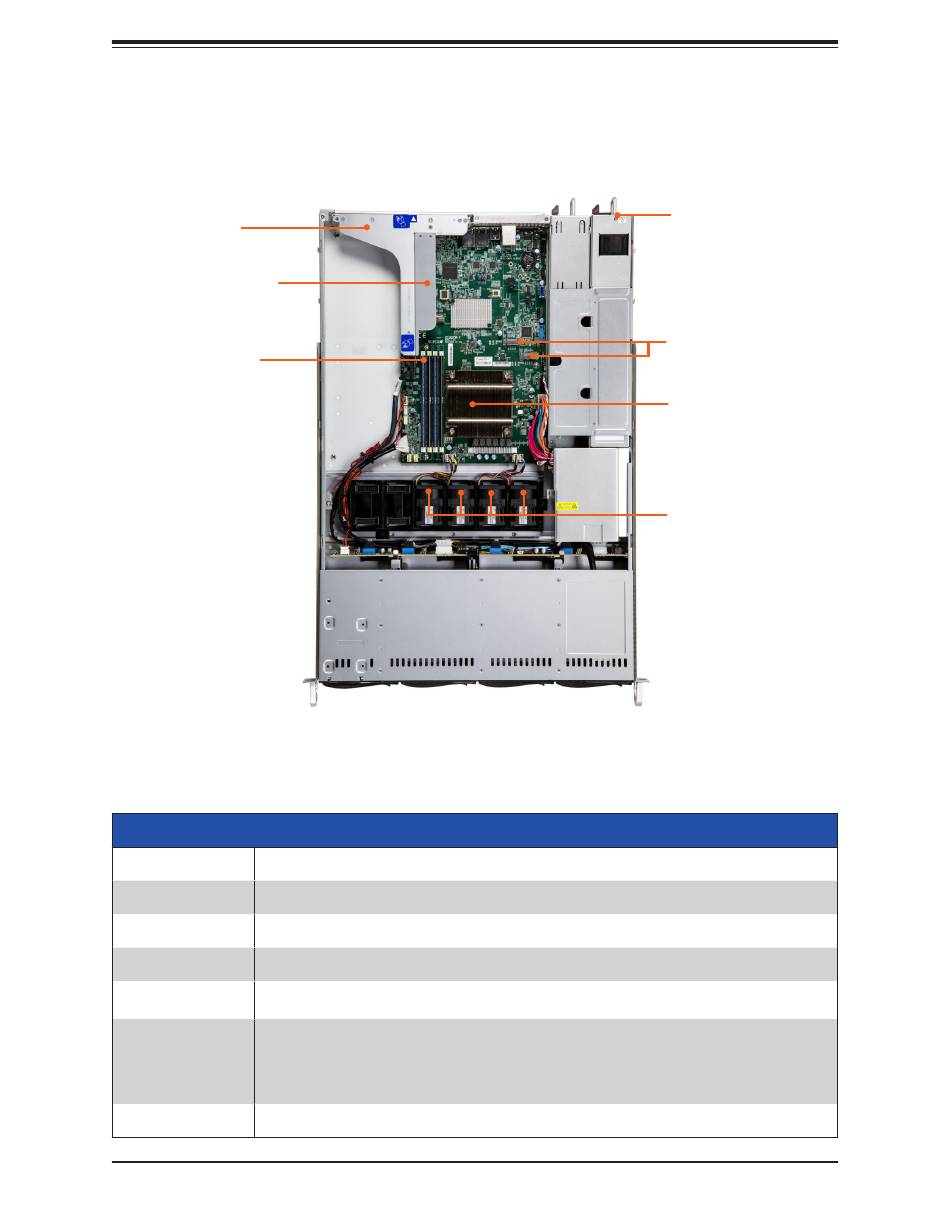

Figure 1-4. System: Top View
System Features: Top
Description
Single 600 W high-efficiency power supply (Titanium level, 96%) with redundant option
Two PCIe 4.0 x4 M-Key NVMe, one from CPU and one from PCH
Four DIMM slots
Intel® Xeon® E-2400 or 12th Generation Pentium® (socket V0 - LGA1700) series
processor with up to eight cores
For slots 1 and 2:
One PCIe 5.0 x16 (FHFL) in slot 1 -or-
One PCIe 5.0 x8 (FHFL) in slot 1 and one PCIe 5.0 x8 (FHFL) in slot 2
For slot 3:
One PCIe 4.0 x4 in x16 slot (LP)
Four 4-cm counter-rotating fans with space for two additional fans
14
Chapter 1: Introduction
600 W Titanium Level
Two M.2 Slots
® ®
Intel Xeon E-2400
or 12th Generation
®
Pentium (Socket
V0 - LGA 1700) series
processor
Four System Fans
