Air Shrouds
The SYS-110D-4C/8C/14C/16C/20C-FR(A/D)N8TP supports two air shrouds, one to direct
airflow to the CPU and another to direct airflow to the PCIe cards. There are two types of
PCIe card air shrouds, one for full-height cards and one for half-height cards.
Replacing the Air Shroud
1. Position the air shrouds in the chassis, as illustrated on the two next page. The air
shroud fits just behind the fans.
2. Slide the air shroud into the grooves just behind the fan rack. If necessary, move any
cables that interfere with the air shroud placement.
3. Remove perforated tabs, if necessary, for a good fit.
Chapter 3: Maintenance and Component Installation
Lever

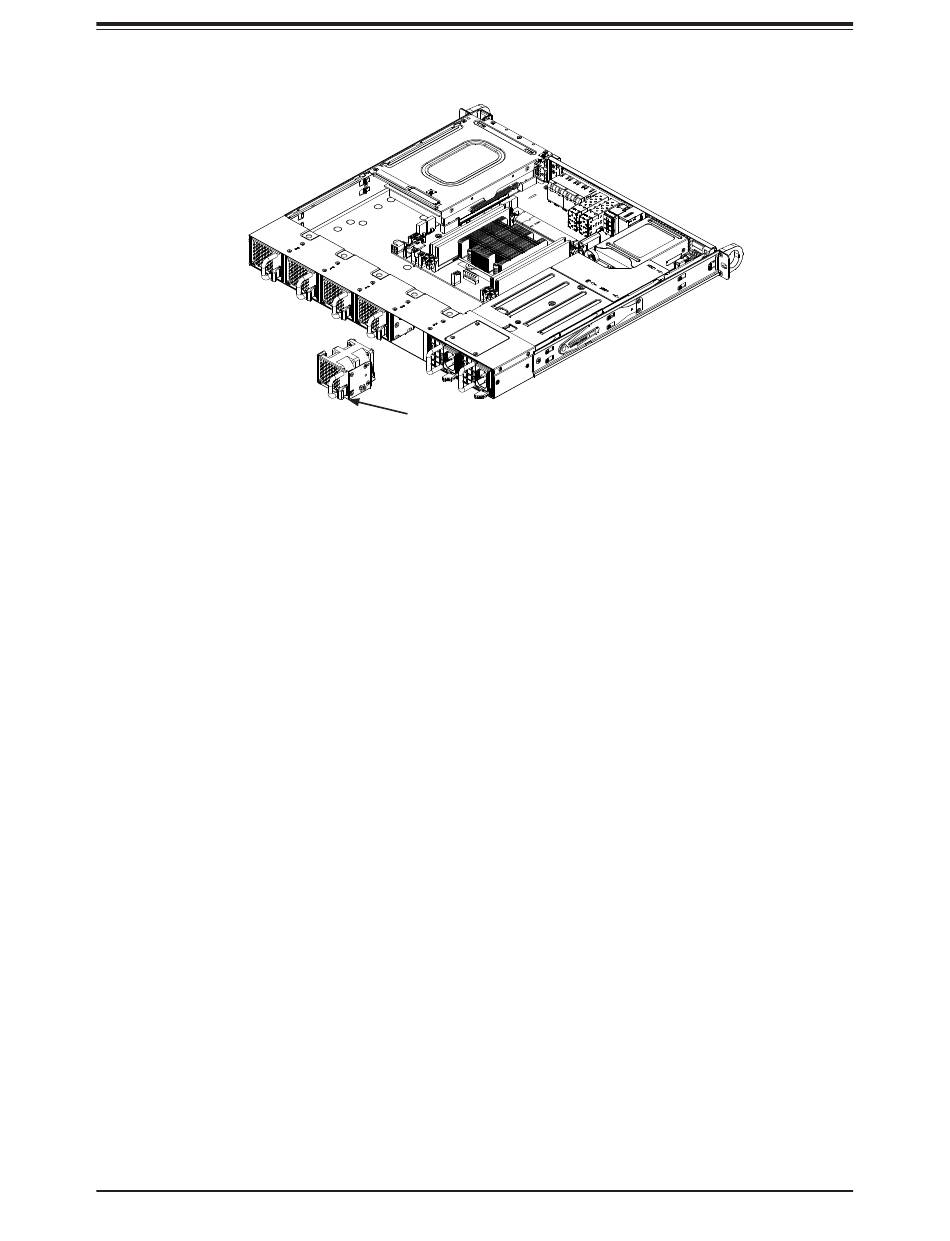

Figure 3-9. Replacing the System Fans
41
