Robotics - Spectra Logic Spectra 12000 User Manual

Robotics

To set system time, add keys, or set IP addresses select Robotics.
The System Configuration screen displays (Figure 2-4).

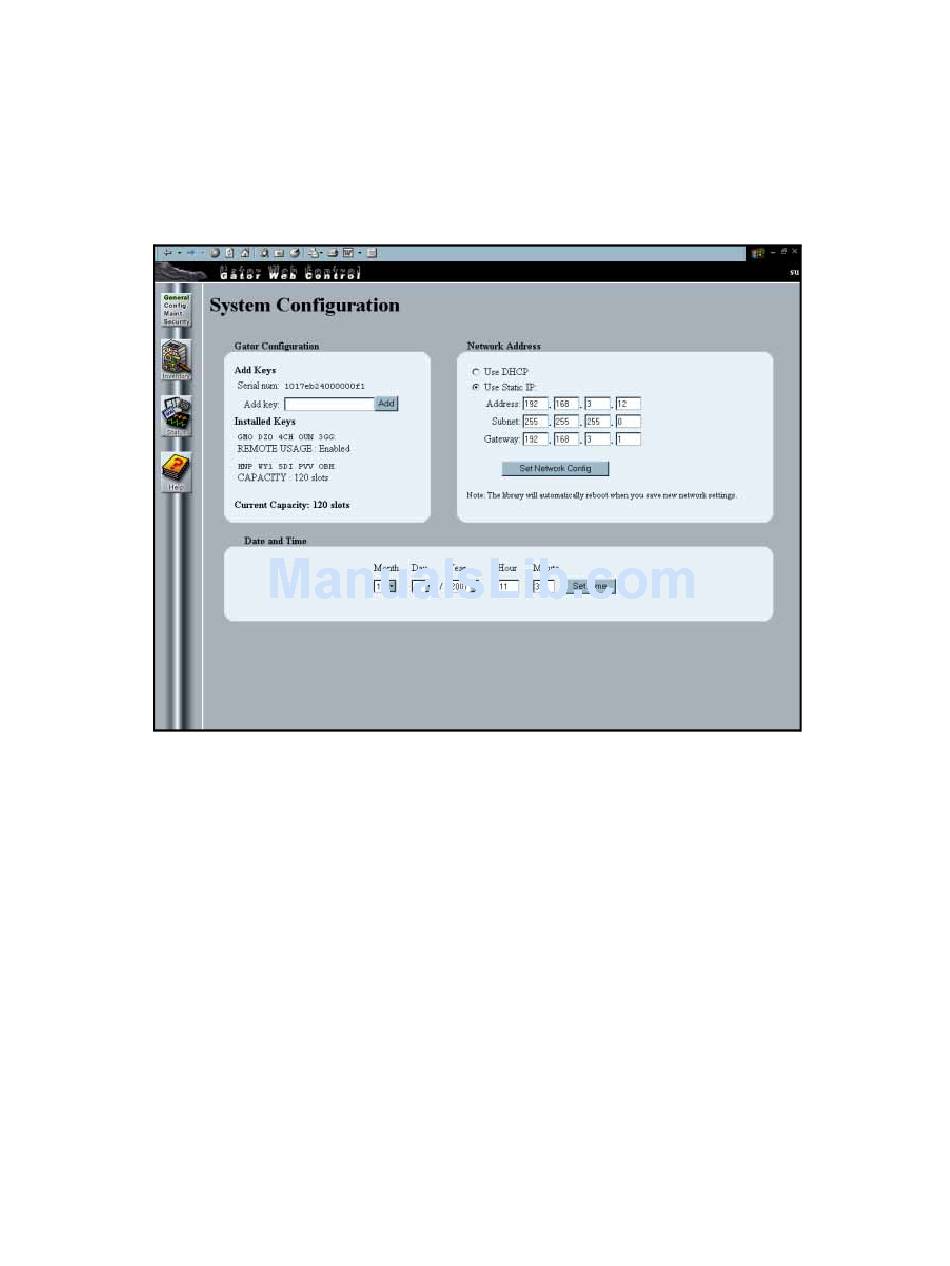

Figure 2-4 System Configuration screen.
In the System Configuration screen the following fields will be available:
Gator Configuration This section shows the installed keys, current capacity,
and allows the user to add extra functions to the library including: RLC,
NDMP enabled by TAOS, Serverless Backup enabled by TAOS, and add
extra tape capacity with CoD.
Š
To enable a key, you will need to obtain an activation key from
Spectra Logic. Contact Spectra Logic Technical Support at
(800) 227-4637 with the serial number of the device, as displayed in
the Serial # field, to purchase the activation key. Once you have
purchased the activation key, enter the key into the Add Key section,
then select Add.
