28 Remote Library Controller User Guide
4. To create a new partition, select New Partition (you will need at least
one unassigned set of 15 slots and one unassigned drive to create a
new partition); to edit an existing partition, select Configure in the
appropriate Partition bar. The Edit Partition screen displays
(Figure 3-2).

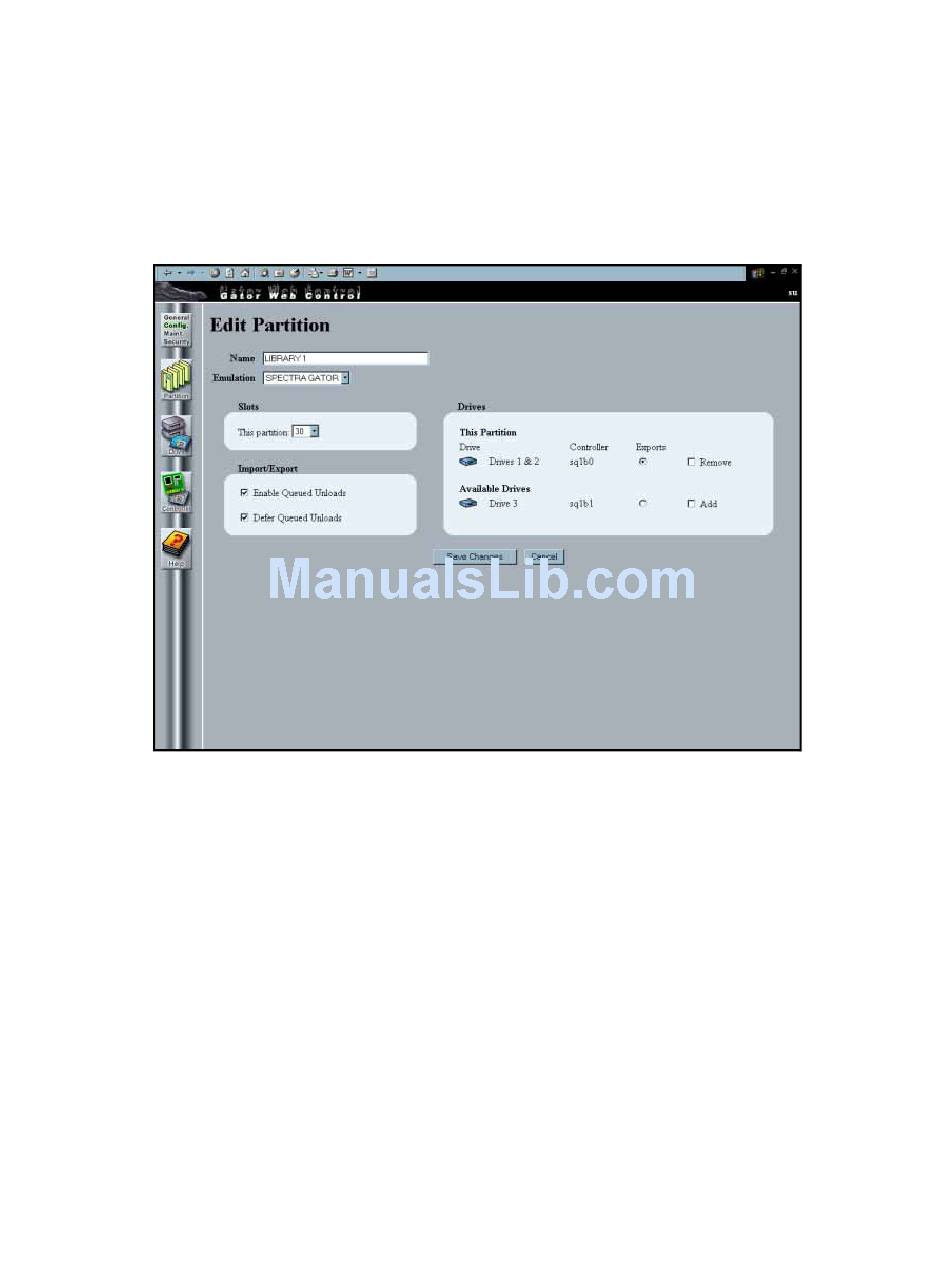

Figure 3-2 The Edit Partition Screen.
5. Create or edit a partition using the following functions in this screen:
Name Type in the name of a partition you want to create or edit.
Emulation Use the drop down menu to select an identity you want the
library to emulate. This is recommended only if software does not have
native support. Select No Change to have the library emulate a SPECTRA
GATOR.
Slots Use the scroll down menu to add/remove slots in increments of 15.
When creating multiple partitions, make sure you have enough
unassigned slots remaining for any other partitions you may be creating.
