Spectra Logic Spectra 12000 User Manual page 43

2. Select the Update F/W button. The Update Firmware screen displays
(Figure 4-1).

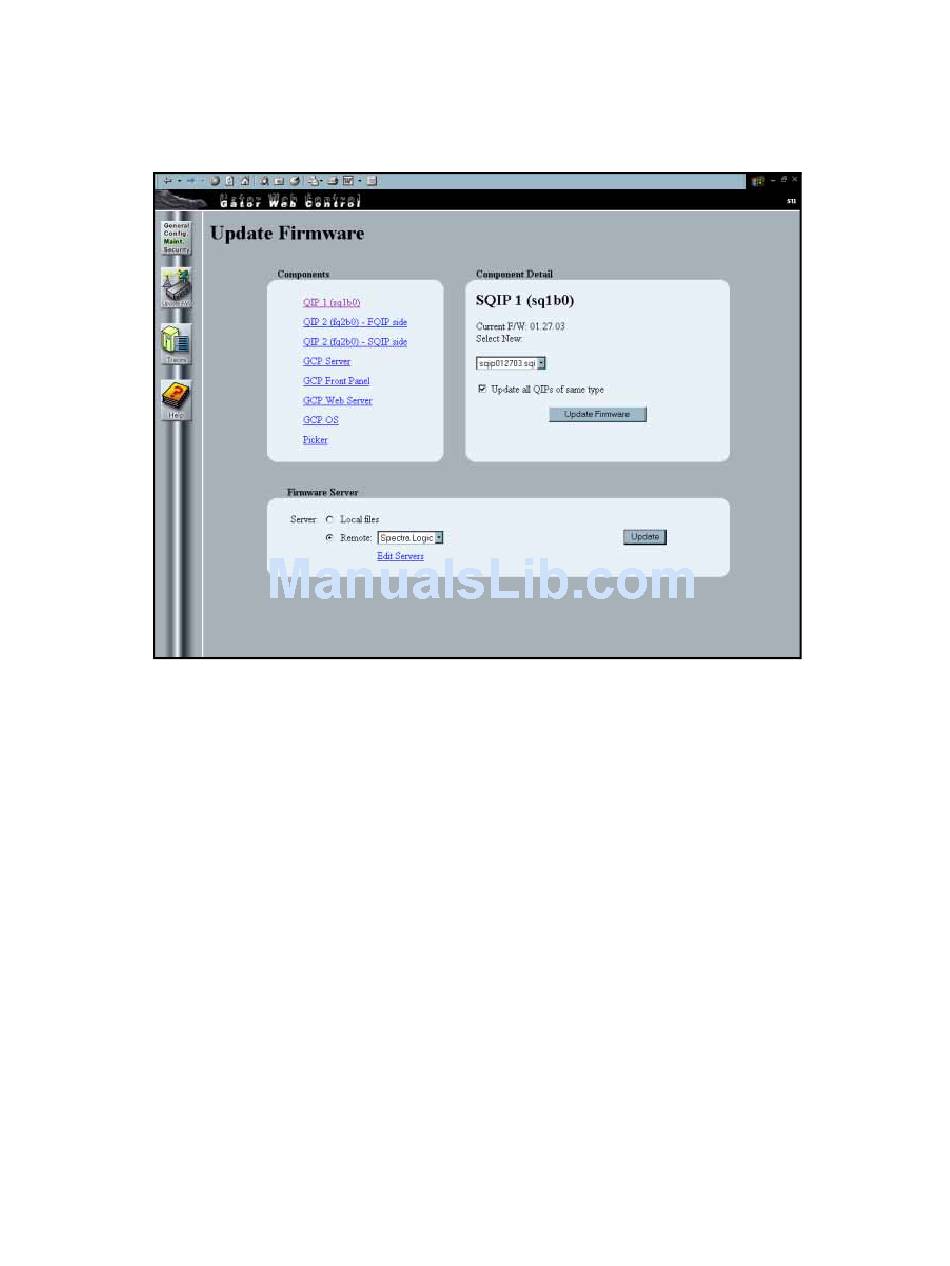

Figure 4-1 The Update Firmware screen.
3. In the Firmware Server section, select the server from where you
would like to obtain the most current firmware. You can choose
firmware from the local files, or firmware from a remote site,
including the Spectra Logic Web site.
4. After you select the firmware server, select Update. This will update
the current firmware list to the Component Detail list under the
Select New drop down menu.
5. Once you have the newest firmware available, select the component
you would like to update in the Components section.
6. The current level of firmware for the component you have selected
will display in the Components Detail section.
7. From the Select New drop down menu in the Components Detail
section, select the firmware level for the component you want to
update.
Chapter 4. Maintenance 43
