38 Remote Library Controller User Guide
Select Configure for the controller that you would like to configure. The
Edit QIP Configuration screen displays (Figure 3-9).

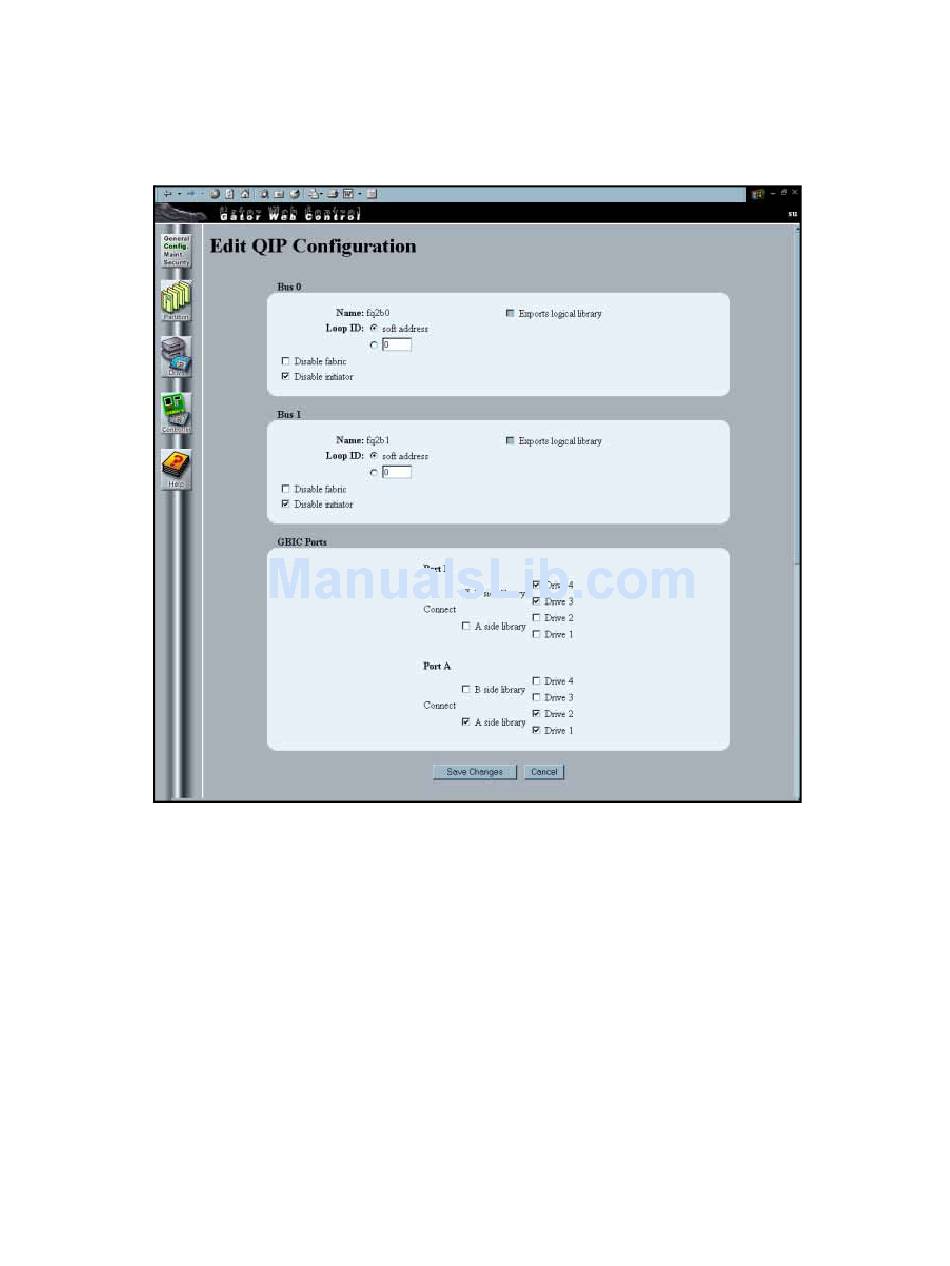

Figure 3-9 The Edit F-QIP Configuration screen.
In the Edit QIP Configuration screen, the following fields will be
available:
Name The assigned bus name displays here.
Loop ID Soft Address is the default setting. Otherwise, select the empty
name box and type the desired Hard Address.
Soft and Hard Addresses When a Fibre Channel loop initializes, it tries to
assign requested ID numbers to devices that use hard addresses. It then
dynamically assigns soft addresses to other devices from remaining
