Installation; Gate Operator Position - Maximum Controls MAX MEGATRON 1400HP Installation And Owner's Manual

Read and understand this entire manual before installation. Check with the local building department prior to installing this gate
operator to comply with local building code requirements. The gate must be installed in a location so that enough clearance is
supplied between the gate and adjacent structures when opening and closing to reduce the risk of entrapment. Swinging gates
should not open into public access areas.

Gate Operator position

The gate must be properly installed and work freely in both directions prior to installation of the gate operator.

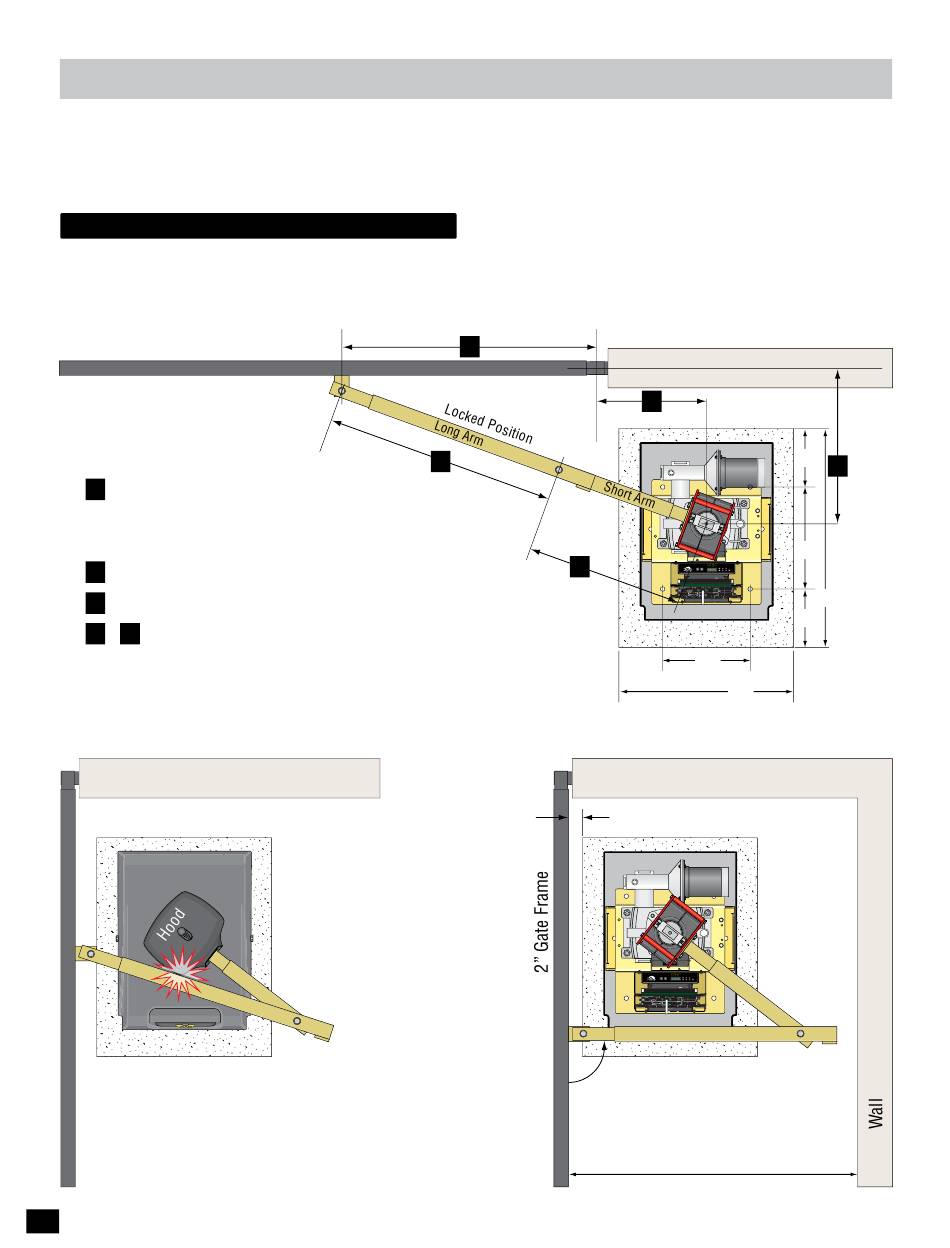

Gate Bracket Pivot Point
Measurement Guidelines
A
Should be at least 1/4 the gate length.
NOTE: Uphill or heavy gates should be at least
1/3 gate length.
B
15" minimum for open gate clearance (2" thick gate).
C
Distance "A" minus 17 inches (A - 17 = C).
D E
& Arm should be 90° from gate when OPEN
and in the straight "locked" position when CLOSED.
Maximum arm length is 71 inches.
DO NOT allow arm to touch
hood in gate's OPEN position.
TOO MUCH STRESS is put on
the arm in this position during
gate operation.
6

installation

Closed Position
A
D
Longer
than "E"
Open Position
Preferred arm position
is 90° from open gate.
See page 10 for arm
position options and
connection to gate.
Hinge Pivot Point
B
Arm
15" Min Concrete Pad
Pivot
Point
E
MC-200
ERD
Motor Sensitivity JOG JOG MATRIX Motor Controller
OverLoad LEFT RIGHT ON-LINE Edge UL Entrap
5 4
3 1 POWER
MAX 2
ERD
12 13 14 15 16 LED ON Limit SW Edge PhotoCell
POWER
POWER/SOLAR
IN IN
Shorter
TO MOTOR
CONTROLLER
BATTERY BATTERY
MA TRIX 1 BACK-UP BA TTERY IN MODE PRIMARY GA TE PACK
MADE in USA OPEN LEAVE CLOSED LEAVE 1 OPEN TIME LEFT OPEN RIGHT OPEN OFF MAGLOCK 1.5Sec DELA Y 2Sec LOCK MAG
AUTOMA TIC ANTI OPEN/CLOSE CONTROLS T amper
EXIT ON T AILGA TE OFF EXIT CENTER SAFETY T AMPER GA TE T amper
CENTER PHOTOCELL
SAFETY CLOSE MIN OFF TIMER MAX ENTRAP UL EDGE EDGE
ID OPEN P ARTIAL MOTOR MOTION ERROR ID
PLUG POSITION OPEN STOP CLOSE UL ALARM ALARM
12VDC GND RECORDER BLACK OBD PORT BOX MAX GA TE MIN SPEED REVERSE NO MOTOR LIMIT SENSITIVITY OVERLOAD SWITCH / ST A TUS GA TE
24VDC GND MAX SWITCH LIMIT CLAMP SLIPPING BA TTERY
PRIMARY MOTOR ON-LINE ON-LINE SEC
www.max.us.com GA TE GA TE
than "D"
Made in USA
12"
2" Min
ERD MC-200
Motor Sensitivity JOG JOG Motor Controller
OverLoad LEFT RIGHT MATRIX
5 4 ON-LINE Edge UL Entrap
3 1 POWER
ERD MAX 2
12 13 15 16 LED ON Limit SW Edge PhotoCell
14
POWER
POWER/SOLAR
IN
IN
TO MOTOR
CONTROLLER
BATTERY BATTERY
MA TRIX 1 BA TTERY IN PRIMARY PACK
MADE in USA OPEN LEAVE BACK-UP LEAVE CLOSED MODE OPEN TIME 1 LEFT OPEN GA TE RIGHT OPEN OFF MAGLOCK DELA Y 1.5Sec 2Sec LOCK MAG COM
AUTOMA TIC OPEN/CLOSE CONTROLS NC
EXIT T AILGA TE ANTI ON OFF EXIT CENTER SAFETY T AMPER GA TE T amper T amper NO GND COM IN
CENTER PHOTOCELL
SAFETY MIN OFF MAX ENTRAP UL EDGE EDGE 1 2
CLOSE TIMER P ARTIAL OPEN MOTOR MOTION ID ERROR PLUG
PLUG ID OPEN STOP CLOSE UL ALARM ALARM RESET 12V RET
12VDC GND RECORDER OBD POSITION BLACK PORT BOX MAX GA TE SPEED REVERSE MOTOR OVERLOAD SENSITIVITY GA TE GND OPEN
24VDC GND MAX MIN LIMIT NO CLAMP LIMIT SLIPPING SWITCH / ST A TUS CLOSE COM
ON-LINE SWITCH ON-LINE MOTOR BA TTERY IN POWER USE
PRIMARY GA TE GA TE SEC
www.max.us.com
Made in USA
NOTE: If dimension between OPEN gate
and wall is 20" to 32" then compact
installation is necessary, see page 12.
Illustrations not to scale
8"
C
Operator
Pivot
14"
Point
COM
NC NO
GND COM IN
2 1 30"
PLUG
RESET GND 12V RET
COM OPEN
CLOSE
IN POWER USE
