Maximum Controls MAX SUPER ARM 1300 Manual

Heavy duty residential linear gate operator, overload clutch release on 2-ton impact
Hide thumbs Also See for MAX SUPER ARM 1300:
Table of Contents

Advertisement

Quick Links

Rev. 1.3_ April 29

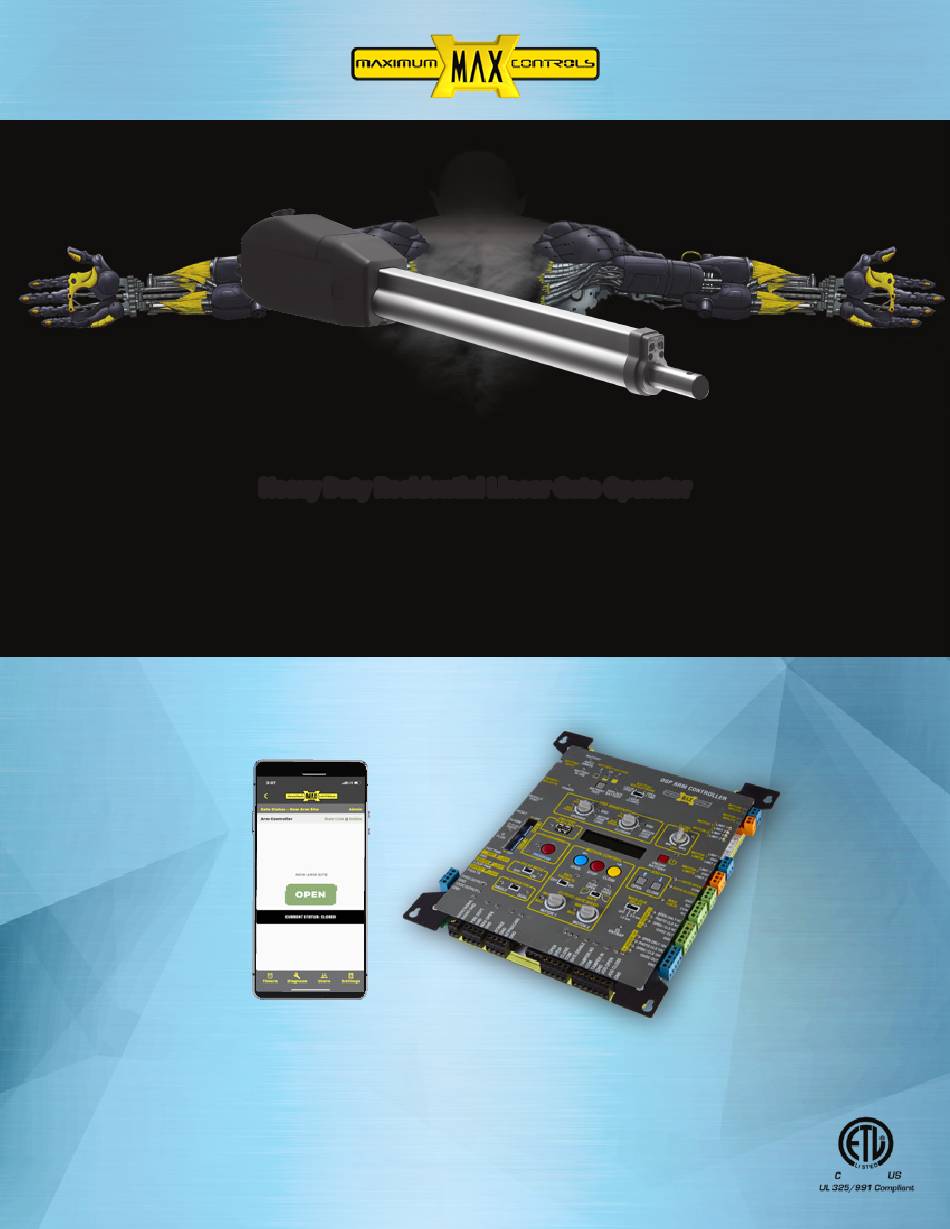

MAX SUPER ARM 1300
MAX SUPER ARM 1300
Heavy Duty Residential Linear Gate Operator
Overload clutch release on 2-ton impact
Max cloud app &
DSP controlLer
2 Year Warranty
or 100,000 Cycles
whichever comes first
UL 2018 THE NEW STANDARD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX SUPER ARM 1300 and is the answer not in the manual?

Questions and answers

Related Manuals for Maximum Controls MAX SUPER ARM 1300

Summary of Contents for Maximum Controls MAX SUPER ARM 1300

  • Page 1 Rev. 1.3_ April 29 MAX SUPER ARM 1300 MAX SUPER ARM 1300 Heavy Duty Residential Linear Gate Operator Overload clutch release on 2-ton impact Max cloud app & DSP controlLer 2 Year Warranty or 100,000 Cycles whichever comes first UL 2018 THE NEW STANDARD...

  • Page 2: Mechanical Specifications

    • On-board switch for solar mode enables 5 milliamp idle in sleep mode • Gold contact input connections and automobile grade connectors • -4F to 165F (-20C to +74C) operational range including battery backup without a heater = Unique to Max SUPER ARM 1300...

  • Page 3: Security Specifica Tions

    • Vehicle hit protection technology protects the gate operator from collision damage caused by automobile impact, avoiding costly repairs • Built in advanced entrapment protection and alarm output • Built in gate-in-motion alarm for industrial applications = Unique to Max SUPER ARM 1300...
  • Page 4 OPTIONAL MAX CLOUD APP MAX CLOUD APP Affordable and unique APP control solution for the residential and commercial gate operator market. Compatible with Max Operators except Phantom F6 and 2000 Plus Smartphone · Tablet VIRTUAL TRANSMITTER: • To open or close a gate from anywhere in the world - via Max Cloud App •...

  • Page 5: Mechanical Release

    MECHANICAL RELEASE The Max SUPER ARM 1300 has a solid stainless steel output shaft and key lock for mechanical release. For emergency release unlock the key and lift up the hood. To engage the actuator, push down the hood and lock to resume automatic operation.
  • Page 6 EHICLE ROTECTION Maximum Controls recognizes swing gates are more prone to vehicular collisions. For this reason, the Max SUPER ARM 1300 will collapse on impact when struck by vehicular traffic. When a vehicle hits a moving gate, to avoid damage to the actuators, the SUPER ARM 1300 reset automatically.
  • Page 7 ASYMMETRIC SPEED CONTROL Opening one 90° and the other is 75° 75° Open 90° Open For asymmetric installations, the two independent closing speeds can be adjusted to achieve a smooth closing sync. Whichever gate closes first, slow it down. This enables the installer to visually sync the closing cycle. This feature is unique to Maximum Control’s actuators.

  • Page 8: Ac Control Box

    AC CONTROL BOX Control Panel Steel housing 2- layer protection Two 12V 7 AGM Batteries Gold zinc Electrostatic powder coating UL Reset Button Jog Open/Close Key Switch for emergency Gold plated access to property automobile connectors throughout the system Selectable Switch 115V or 230V AC 7 amp Fuse...
  • Page 9 MAX SOLAR CONTROL BOX Control Panel Steel housing 2-layer protection Two 12V 18 Agm Batteries Gold zinc Electrostatic UL Reset Button powder coating Jog Switch input OPTIONAL Gold plated automobile connectors through the system Solar Regulator 24V, 20A (MORNING STAR) Loop Rack OPTIONAL FUSE...

  • Page 10: Control Fea Tures And Connections

    CONTROL FEA TURES AND CONNECTIONS Battery Backup Mode Switch Solar Mode Application Battery Test Switch Motion Control Buttons ERD Sensitivity Maglock Delay OBD Port LCD Display DIP Switches Close Timer Switch Program Button Jog Open/Close Loop Status Closing Gate Speed Battery Input UL Alarm Power/Solar Input...
  • Page 11 MAX SOLAR CONTROL BOX Control Panel Steel housing 2-layer protection Two 12V 18 AH Gold zinc (AGM Rechargeable Batteries) Electrostatic UL Reset Button powder coating Jog Switch OPTIONAL Gold plated automobile connectors through the system SOLAR MODE Switch to enable Solar Regulator low power draw 24V, 10A...
  • Page 12 Solar Application Guide/Wiring GATE WEIGHT LESS THAN 1000 LBS SWING PRO OPERATORS MEGATRON PRO Gate solar cycles per day Total Select proper solar panel and battery size Zone 1 Zone 2 Zone 3 System GATE WEIGHT LESS THAN 1000 LBS (6 Hrs Sunlight/Day) (4 Hrs Sunlight/Day) (2 Hrs Sunlight/Day)

  • Page 13: Lightning Protection

    50 FEET 50 FEET The Max SUPER ARM 1300 offers the most robust lightning protection available in the industry. The Super Arm protects all peripheral inputs, loop inputs, power inputs, relay outputs, and all communication lines (over 35 channels of protection) in 1/1,000,000,000 of a second. With special emphasis on power supply protection, the Max SUPER ARM 1300 is guaranteed to withstand any lightning hit more than 50 feet away.
  • Page 14 Damages due to vandalism Section III RMA Shipping Policy a. Maximum Controls LLC will pay for return shipping via standard ground UPS or USPS FOB CA on all RMA’s within one year of Distributor’s purchase b. Any form of “Expedited Shipping” on any RMA will be paid by Distributor...
  • Page 15 SUPER ARM SUPER ARM 1300 1300 MADE IN GERMANY DSP Control MADE IN USA Independent Dealer or Distributor Maximum Controls LLC 949.699.0220 10530 Lawson River Ave. Fountain Valley CA 92708...
