la yout and arm height of 1400/2200/FAST or 1400hp
The gate must be properly installed and work freely in both directions prior to the installation of the gate operator.
See "Gate Operator Position" on page 6 for operator position and "Arm Connection to Gate" on page 10.
Support Bar: See below
Ground Level
"Optional" Input Power Note:
24VDC low voltage power wires can be run
from a remote power supply (MAX Magic
Box) to power the gate operator if desired.
See page 11 for more information.
Support Bar

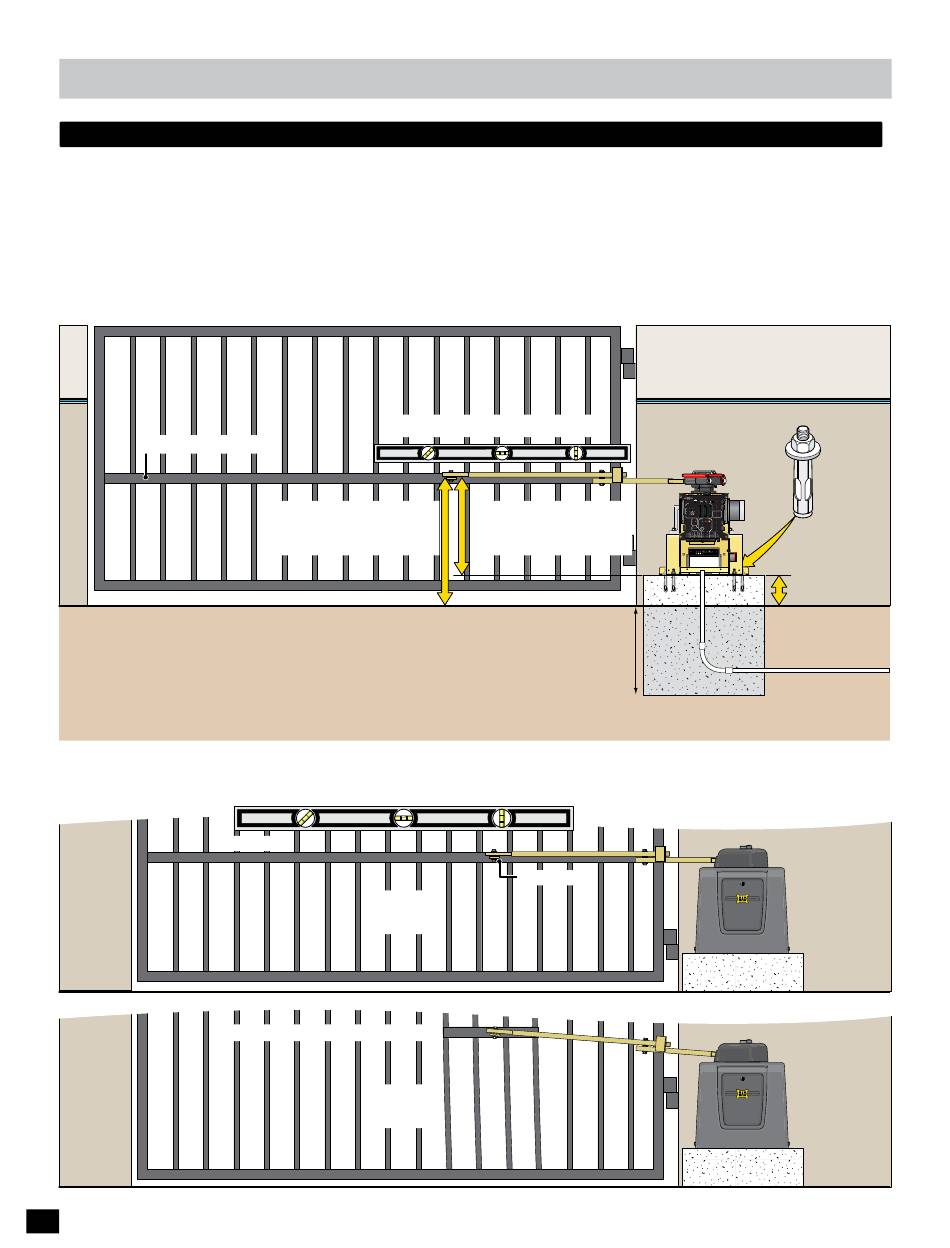

A support bar should be installed at the gate bracket height across the ENTIRE gate to keep the gate pickets from bending.
Support Bar
Support Bar Too High & Not Long Enough
8
installation
Conduit Guidelines and Suggestions
• REQUIRED - AC input power wire.
• REQUIRED - Entrapment protection (photocell and/or sensing edge). See page 13.
• Normally open photocell. See page 13.
• In-ground loop wires. See page 14.
Arm MUST be installed level.
1400/2200/FAST = 25"
1400HP = 33.5"
YES YES
NO NO
(See page 7)
19"=1400/2200/FAST
27.5"=1400HP
Check local building
codes in your area for
depth of concrete
before installation.
Concrete Depth Note: The heavier the gate, the deeper the concrete
pad should be. At least two feet recommended for heavier gate.
Gate Bracket
Illustration not to scale
Secure gate operator
to concrete pad with
six (6) 1/2" x 3"
(min) sleeve anchors.
1/2
