megatron options / unique Features

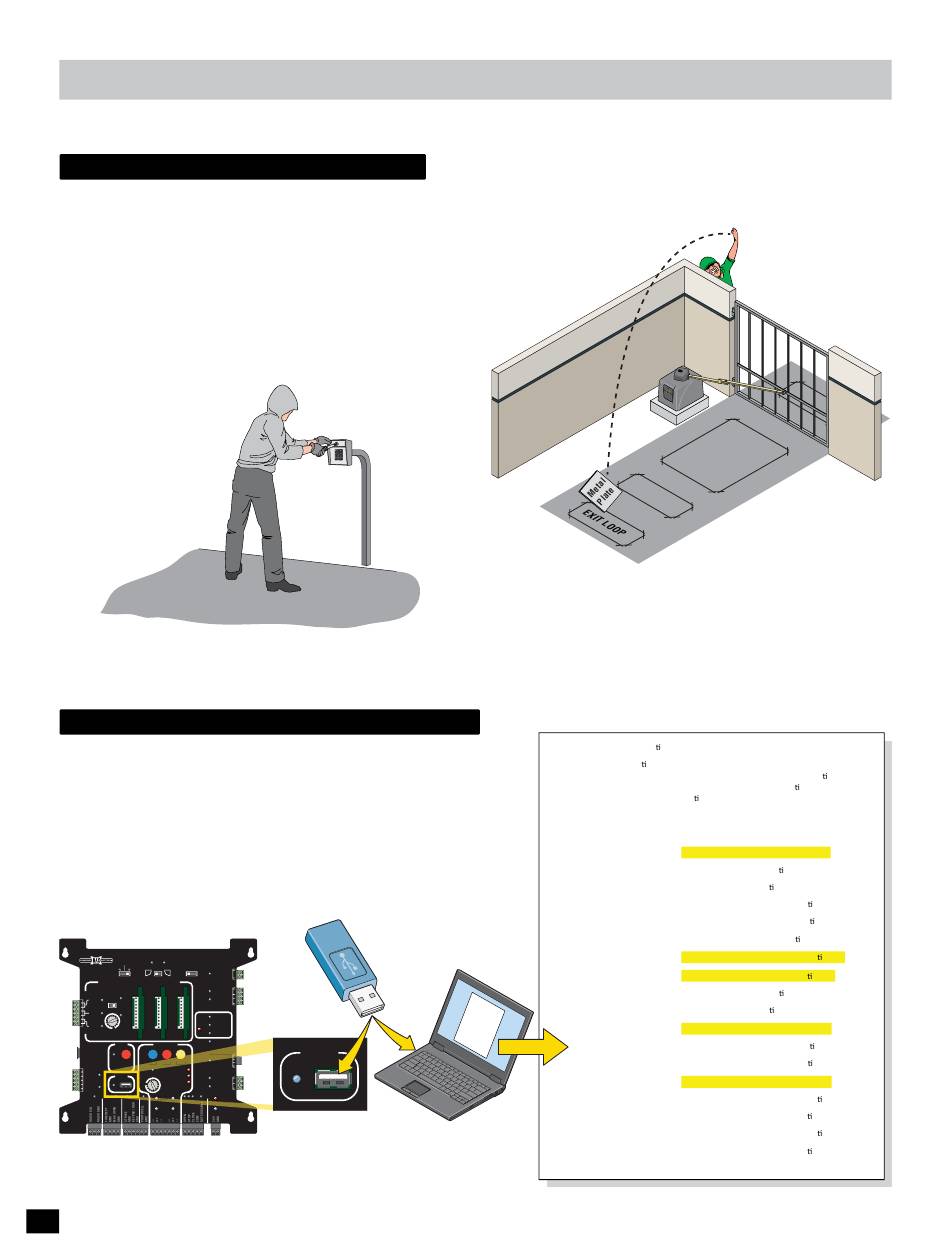

Gate disable feature

This unique GATE DISABLE feature is useful when the gated area needs to be secured from ALL but emergency and/or autho-
rized vehicle entry. Some examples are:
The GATE DISABLE feature will allow the FIRE DEPT/MAX and
RADIO inputs to operate but nothing else. It helps with some
major security problems that can occur when no one is
available to monitor the property.
GATE DISABLE
prevents breaking into
a keypad box and
trying to trigger the
wires to get the gate
to open.
IMPORTANT: It is NOT recommended activating GATE DISABLE while persons are present inside the property.

event history download

This unique EVENT HISTORY feature has an On Board Diagnostics (OBD)
port to download a simple .txt file to troubleshoot gate operator errors
and to view normal transaction logs. This file will log intermittent
problems with the gate operator that can be difficult to solve. This file
can even be e-mailed to the factory from out in the field at the job site for
additional technical support if necessary.
The event history can store up to 1000 transactions.
MATRIX 1
BATTERY PRIMARY
BACK-UP MODE GATE
LEAVE MAGLOCK
CLOSED
DELAY
OPEN OPEN MAG
MADE in USA LEAVE OPEN
OPEN 1 TIME LEFT RIGHT
OFF 1.5Sec 2Sec LOCK
AUTOMATIC OPEN/CLOSE CONTROLS
ANTI
GATE
TAILGATE EXIT CENTER SAFETY
TAMPER
EXIT ON OFF
CENTER
PHOTOCELL
UL
SAFETY
MIN MAX
OFF
ENTRAP
CLOSE TIMER
PARTIAL MOTOR MOTION
OPEN
ID
PLUG
UL ALARM 12V UL ALARM 12V
ALARM RET ALARM RET
OPEN OPEN STOP STOP CLOSE CLOSE
POSITION N
RECORDER RECORDER
MAX MAX
REVERSE SENSITIVITY
12VDC
GATE SPEED
MOTOR OVERLOAD
GND OBD PORT
BLACK BOX GATE
MIN
NO LIMIT SWITCH /
STATUS
24VDC CLAMP SLIPPING
MAX
GND
LIMIT
SWITCH SWITCH
ON-LINE ON-LINE
MOTOR
ON-LINE
PRIMARY SEC
GATE GATE
46
"Like NO other Gate Operator in the World"
• Residential home vacation period.
• During closed hours of a business.
USB Flash Drive
COM
NC
Tamper NO
COM
GND
Tamper IN
EDGE 1
EDGE 2
ID PLUG
ERROR
OBD PORT
BLACK BOX
RESET
GND
OPEN
COM
CLOSE
BATTERY
IN US IN USE
POWER
GATE DISABLE prevents trying to trigger
the exit loop to get the gate to open.
Event History Text Document Sample
Event type clarifica on:
INFO: informa onal message only
WARNING: unusual event but doesn't cause system malfunc on
ERROR: abnormal event, could cause system malfunc on
ENTRAP: entrapment detec on event
Event Report:
Fri 07/11/2014 10:59:41 INFO : Cycle Counter
Fri 07/11/2014 10:59:41 ENTRAP : SEC_MC: First ERD Detected
Fri 07/11/2014 10:59:37 INFO : Radio Input Deac vated
Fri 07/11/2014 10:59:36 INFO : Radio Input Ac vated
Fri 07/11/2014 10:58:54 INFO : PRI_MC: Fully Open Posi on Learned
Fri 07/11/2014 10:58:53 INFO : SEC_MC: Fully Open Posi on Learned
Fri 07/11/2014 10:57:40 INFO : PRI_CIO: Communica on Established
Fri 07/11/2014 10:57:38 ENTRAP : PRI_MC: Photo Cell Deac vated
Fri 07/11/2014 10:57:34 ENTRAP : PRI_MC: Photo Cell Ac vated
Fri 07/11/2014 10:57:21 INFO : Radio Input Deac vated
Fri 07/11/2014 10:57:21 INFO : Radio Input Ac vated
Fri 07/11/2014 10:56:46 WARNING: PRI_MC: Tamper Reported
Fri 07/11/2014 10:56:36 INFO : SEC_MC: Fully Open Posi on Unknown
Fri 07/11/2014 10:56:36 INFO : PRI_MC: Fully Open Posi on Unknown
Fri 07/11/2014 10:56:36 WARNING: PRI_MC: Tamper Reported
Fri 07/11/2014 10:56:33 ENTRAP : PRI_MC: Photo Cell Deac vated
Fri 07/11/2014 10:56:33 ENTRAP : PRI_MC: Photo Cell Ac vated
Fri 07/11/2014 10:56:33 ENTRAP : PRI_MC: Photo Cell Deac vated
Fri 07/11/2014 10:56:33 ENTRAP : PRI_MC: Photo Cell Ac vated
