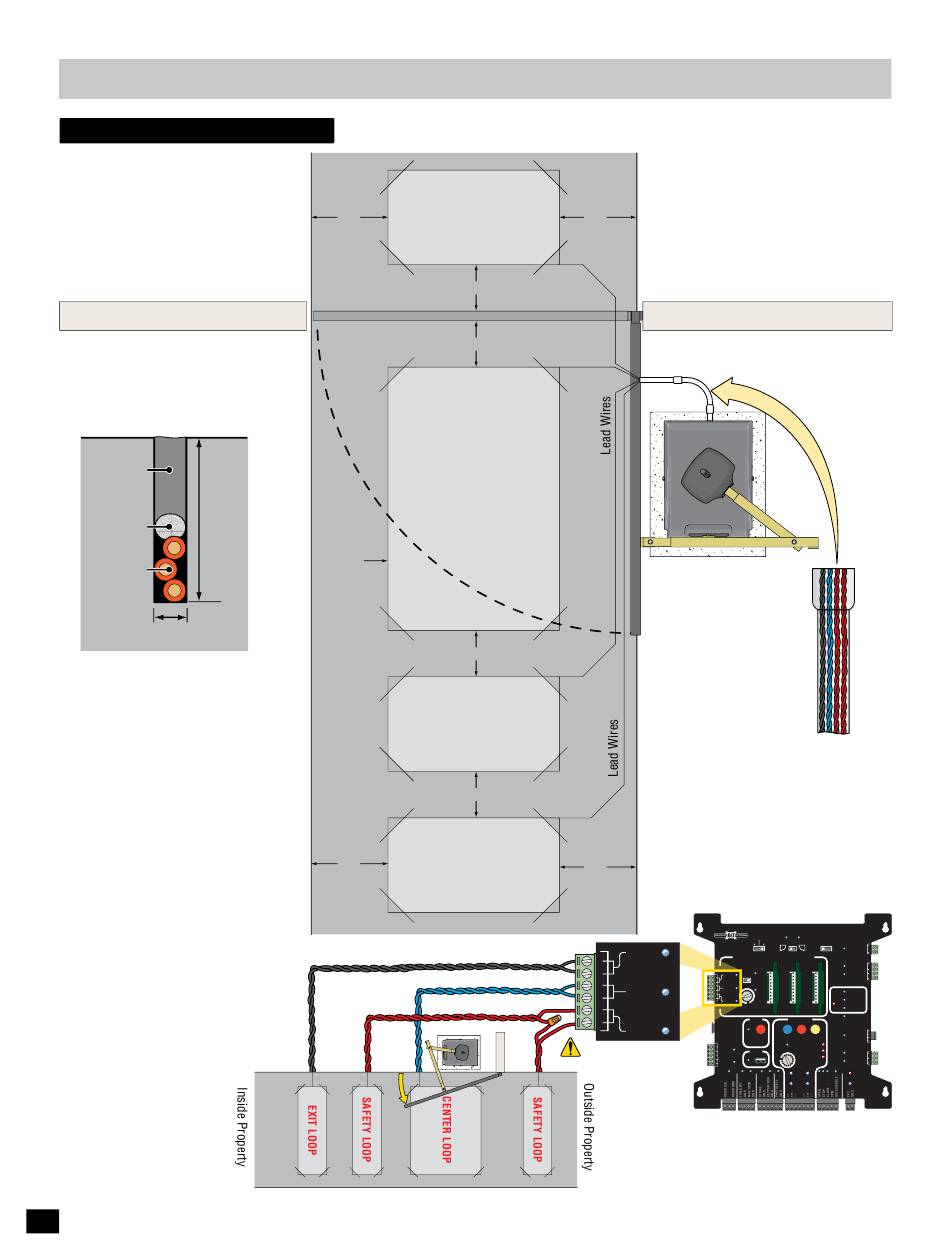

in-ground loops

Install in-ground loops to help
protect vehicles from a moving
gate. See pages 25 & 29 for
wiring instructions.
Outside Property
Illustration not to scale
Inside Property
Side View of
Saw Cut
Sealant
1 1/2"
Backer Rod
Typical
Loop Wire
1/4" Saw Cut
Pavement
Safety Loops
Are placed on each side of the gate to prevent
the gate from closing on a vehicle in it's path.
They will stop or reverse the cycling of the
gate while a vehicle is in or near the gate's
pathway.
Center Loop
Will ONLY HOLD the gate in the Full Open
Position when a vehicle is on the center loop.
However, it WILL NOT stop or reverse the
gate once it starts to close.
Exit Loop
Automatically opens the gate for exiting
vehicles without having to use a radio
transmitter (remote control). The exit loop
can be placed a minimum of 4 feet away from
the safety loop or far enough away from the
gate so it has opened by the time the vehicle
approaches it.
14
installation
Safety
4 ft
Loop
4 ft
4 ft
Center
Loop
Saw Cut
4 ft
Safety
Loop
4 ft min.
Exit
4 ft
Loop
Lead Wires
Refer to loop maunufacturer's
instructions to determine specific
loop dimensions.
4 ft
It is recommended that a
licenced installer perform
this work.
Conduit
4 ft
Matrix 1 Wiring
MATRIX 1
BATTERY
BACK-UP MODE
LEAVE
CLOSED
MADE in USA LEAVE
OPEN
EXIT
AUTOMATIC OPEN/CLOSE CONTROLS
ANTI
T TAILGATE
EXIT ON OFF
CENTER
CENTER
SAFETY
MIN MAX
OFF
CLOSE TIMER
PARTIAL
OPEN
ID
PLUG
SAFETY
POSITION
RECORDER
Safety loops need
12VDC
GND OBD PORT
BLACK BOX
24VDC
to be wired in series.
GND
Loop lead wires are
twisted 6 twists per
foot minimum inside
conduit.
PRIMARY
GATE
MAGLOCK
DELAY
OPEN OPEN MAG
OPEN
1 TIME LEFT RIGHT
OFF 1.5Sec 2Sec LOCK
COM
NC
Tamper NO
GATE
EXIT CENTER SAFETY COM
TAMPER
GND
Tamper IN
PHOTOCELL
EDGE 1
UL
EDGE 2
ENTRAP
ID PLUG
MOTOR MOTION ERROR
UL ALARM 12V
ALARM RET
OPEN STOP CLOSE RESET
GND
MAX
REVERSE SENSITIVITY
GATE SPEED
MOTOR OVERLOAD
OPEN
GATE
MIN
NO LIMIT SWITCH / COM
STATUS
CLAMP SLIPPING
MAX
CLOSE
LIMIT BATTERY
SWITCH
IN USE
ON-LINE
MOTOR
POWER
ON-LINE
PRIMARY SEC
GATE GATE
