Maximum Controls MAX Quick Start Manual

MAX Wireless Push Button
FOR PRO SERIES
o r
t d o
O u
Indoor Unit
Gate Monitoring LED
Normal OPEN operation.
Activates Relay 1.
24 VDC Power
Wire polarity does not matter.
Maximum Controls LLC. • 949.699.0220 • 10530 Lawson River Ave, Fountain Valley, CA 92708
E D
O S
C L
E N
O P
E N
O P
U n
o o r
I n d
i t
U n
OPEN
Open Button
POWER
OPEN
12-24 V AC/DC
Mount Indoors
in a secure place NOT exposed to the elements.
ONLY use existing 4 holes to mount box.
DO NOT drill any extra holes in box.

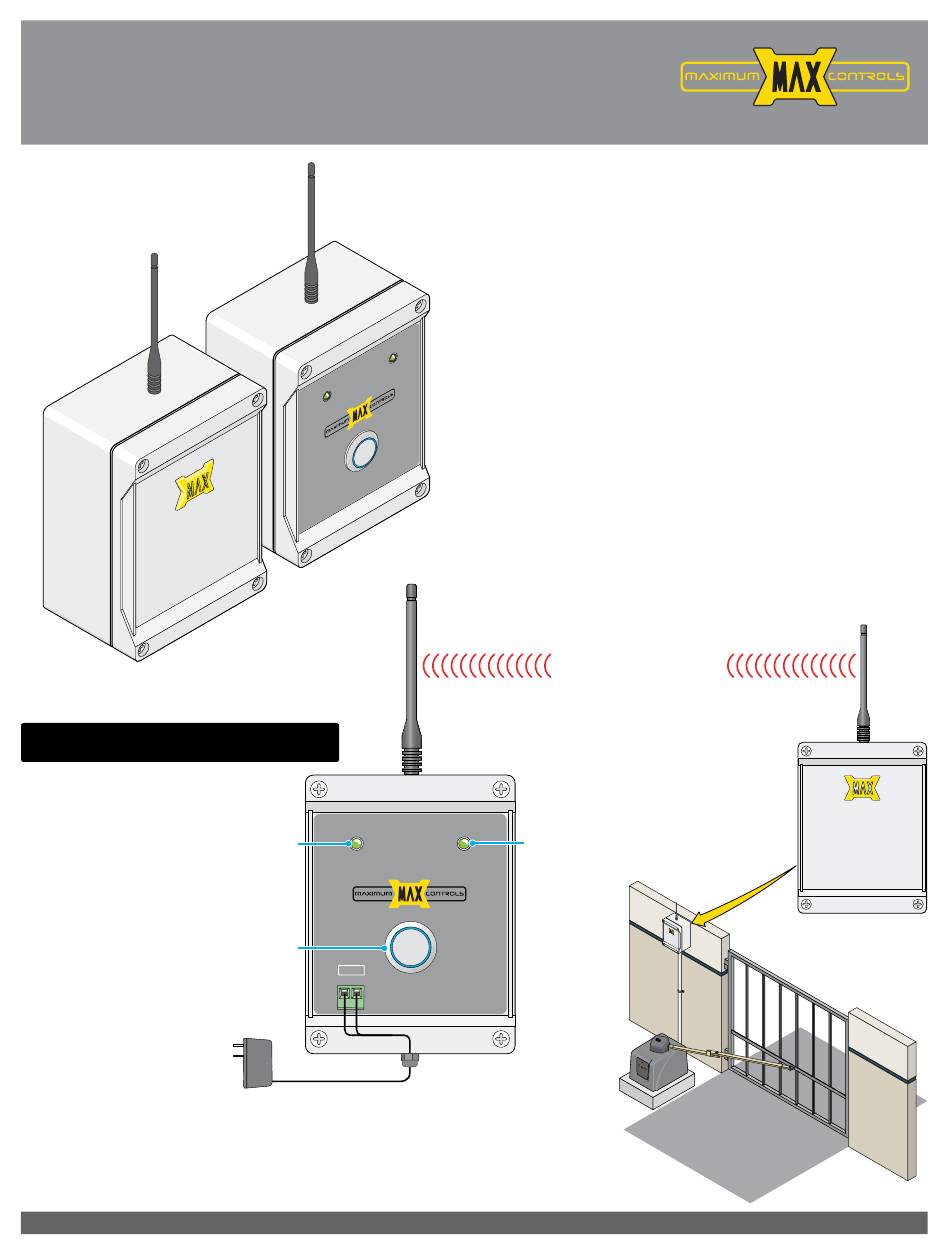

The MAX wireless Open Button is designed to wirelessly OPEN or
CLOSE a gate. It will also monitor the position of the gate with the
LEDs.
Press the Open Button to open the gate. Auto-close timer on gate
operator will close the gate. If auto-close timer is turned OFF, press
open button again to close gate.
Install the indoor unit in a secure place protected from the
elements. The outdoor unit gets installed at the gate operator within
3500 feet (Line-of-Sight) of the indoor unit. It can be exposed to the
elements. Do not drill any extra holes in the boxes when mounting
or running wires to them.
i t
900MHz Robust Signal
Up to 3500 ft using Line-of-Sight
Gate Monitoring LED
CLOSED
Wire Conduit
www.max.us.com
See reverse side to
wire outdoor unit
to gate operator's
Matrix 1.
Outdoor Unit
