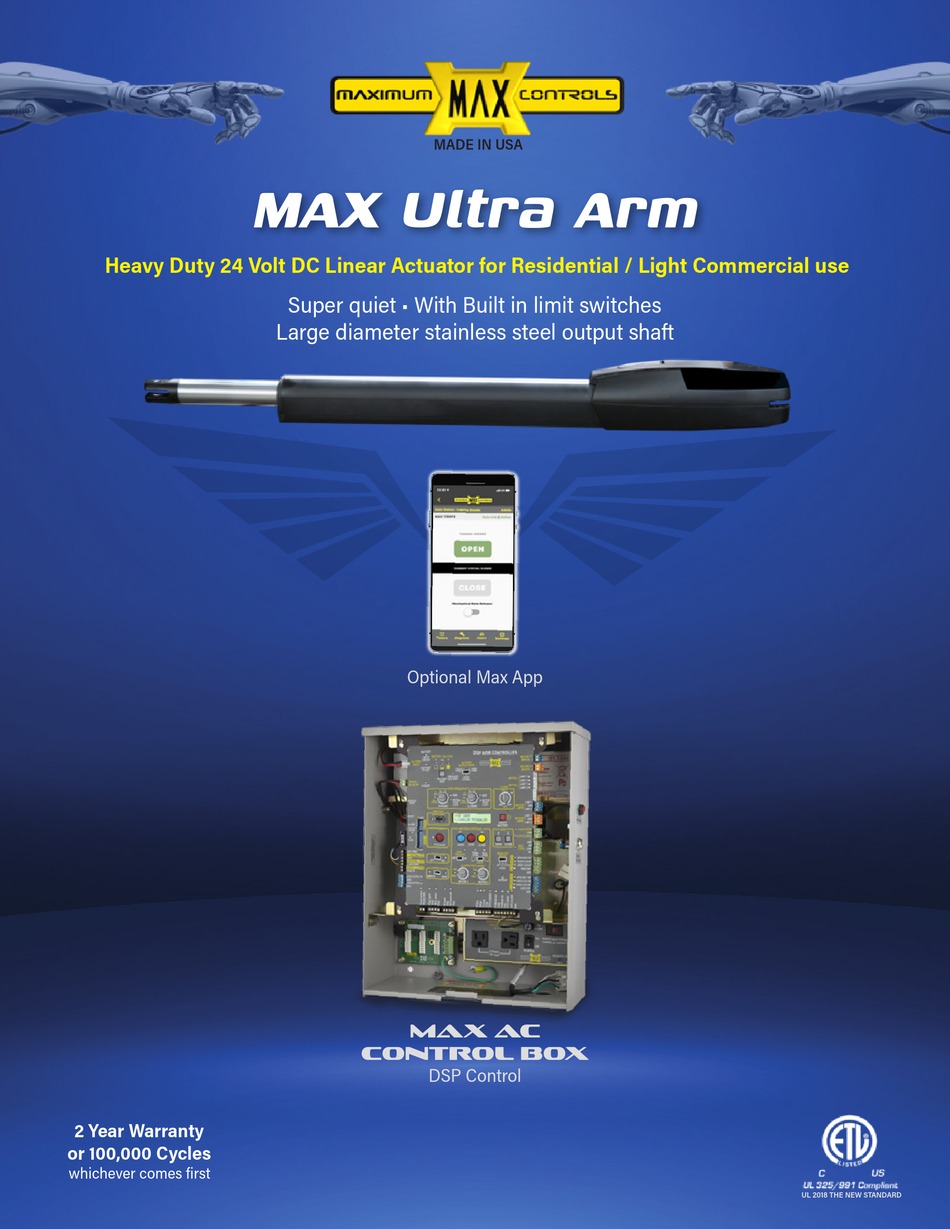

MADE IN USA
MAX Ultra Arm
Heavy Duty 24 Volt DC Linear Actuator for Residential / Light Commercial use
Super quiet • With Built in limit switches
Large diameter stainless steel output shaft
Optional Max App
MAX AC
control box
DSP Control
2 Year Warranty
or 100,000 Cycles
whichever comes first
UL 2018 THE NEW STANDARD
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maximum Controls MAX Ultra Arm
Summary of Contents for Maximum Controls MAX Ultra Arm
- Page 1 MADE IN USA MAX Ultra Arm Heavy Duty 24 Volt DC Linear Actuator for Residential / Light Commercial use Super quiet • With Built in limit switches Large diameter stainless steel output shaft Optional Max App MAX AC control box...
-
Page 2: Mechanical Specifications
MAX Ultra Arm V1 12ft 16ft 18ft 5” • Shipping weight of Actuator: Max Ultra Arm (27 lbs) 127mm • Shipping weight of AC Control Box (38 lbs) Max = 60.3” (+/-.39“ • Stainless steel output shaft 2” tubular • Direct gear drive (no internal chains, belts, or pulleys) 7.35”... -
Page 3: Security Specifica Tions
• Advanced anti-tailgate feature prevents unwanted intrusion SAFETY SPECIFICA TIONS • UL 325/991 compliant Class I, II, III, and IV. CSA approved • Built-in advanced entrapment protection and alarm output • Built-in “gate-in-motion” alarm for industrial applications = Unique to Max Ultra Arm... - Page 4 OPTIONAL MAX CLOUD APP MAX CLOUD APP Affordable and unique APP control solution for the residential and commercial gate operator market. Compatible with Max Operators except Phantom F6 and 2000 Plus Smartphone · Tablet ALARM GATE / CLOSE RESET OPEN Seri withou CLEAR...
- Page 5 Slow Limit Switch Down Down Switch Closed Switch Switch MOTION CONTROL Cycle operator OPEN and CLOSE a few times and readjust limits and slow downs if necessary. Reinstall limit cover. OPEN CLOSE STOP MAX Ultra Arm V1 CLOSED Closed OPEN...
- Page 6 ASYMMETRIC SPEED CONTROL Opening one 90° and the other is 75° 75° Open 90° Open 75° Open 90° Open For asymmetric installations the two independent closing speeds can be adjusted to achieve a smooth closing sync. Whichever gate closes first, slow it down.
-
Page 7: Ac Control Box
AC CONTROL BOX Control Panel Steel housing 2- layer protection Two 12V 7 AGM Batteries Gold zinc Electrostatic powder coating UL Reset Button Jog Open/Close Key Switch for emergency Gold plated access to property automobile connectors throughout the system Selectable Switch 115V or 230V AC 7 amp Fuse... -
Page 8: Control Fea Tures And Connections
CONTROL FEA TURES AND CONNECTIONS Battery Backup Mode Switch Solar Mode Application Battery Test Switch Motion Control Buttons ERD Sensitivity Maglock Delay OBD Port LCD Display DIP Switches Close Timer Switch Program Button Jog Open/Close Loop Status Closing Gate Speed Battery Input UL Alarm Power/Solar Input... - Page 9 MAX SOLAR CONTROL BOX Control Panel Steel housing 2-layer protection Two 12V 18 AH Gold zinc (AGM Rechargable Batteries) Electrostatic UL Reset Button powder coating Jog Switch OPTIONAL Gold plated automobile connectors through the system SOLAR MODE Switch to enable Solar Regulator low power draw 24V, 10A...
- Page 10 MAX Keypad MAX Keypad • Custom durable zinc die cast front door • Audio help messaging • LCD for greeting, help and other messages • Back lit keypad & Light sensor • Solar ready / low power operation management • Side LEDs for goose neck applications –...
-
Page 11: Warranty
Damages due to vandalism Section III RMA Shipping Policy a. Maximum Controls LLC will pay for return shipping via standard ground UPS or USPS FOB CA on all RMA’s within one year of Distributor’s purchase b. Any form of “Expedited Shipping” on any RMA will be paid by Distributor... -
Page 12: Lightning Protection
50 FEET 50 FEET The Max Ultra Arm offers the most robust lightning protection available in the industry. The Max Ultra Arm protects all peripheral inputs, loop inputs, power inputs, relay outputs, and all communication lines (over 35 channels of protection) in 1/1,000,000,000 of a second. With special emphasis on power supply protection, the Max Ultra Arm is guaranteed to withstand any lightning hit more than 50 feet away. - Page 13 Independent Dealer or Distributor Independent Dealer or Distributor Maximum Controls LLC Maximum Controls LLC 949.699.0220 949.699.0220 10530 Lawson River Ave. 10530 Lawson River Ave. Fountain Valley CA 92708 Fountain Valley CA 92708 v1.2 -04-29-21...
