reverse sensor (erd)

This operator is equipped with an ERD Sensor - Electronic Reversing Device (Type A) that functions as entrapment protection
according to UL 325 standards. The gate will reverse direction after encountering an obstruction in either the OPEN or
CLOSE gate cycle.
When the gate encounters an obstruction during the CLOSE cycle, it will reverse to the open position and PAUSE the gate. An
input command (press remote button or exit loop) is needed BEFORE the gate will reset and close again.
When the gate encounters an obstruction during the OPEN cycle, it will reverse approximately 6 inches and PAUSE the gate. An
input command (press remote button or exit loop) is needed BEFORE the gate will reset and open again.
For the ERD Sensitivity to function correctly:
• THE RELEASE HANDLE CLAMP MUST NOT SLIP when the gate encounters an obstruction.
• Limit switches must be learned BEFORE adjusting the ERD Sensitivity.
ERD
JOG
Sensitivity
Motor
LEFT
OverLoad
5
4
3
MAX
ERD
12
16 LED ON
13 15
14
16 sensitivity setting positions.
NO mechanical hard stop for knob.

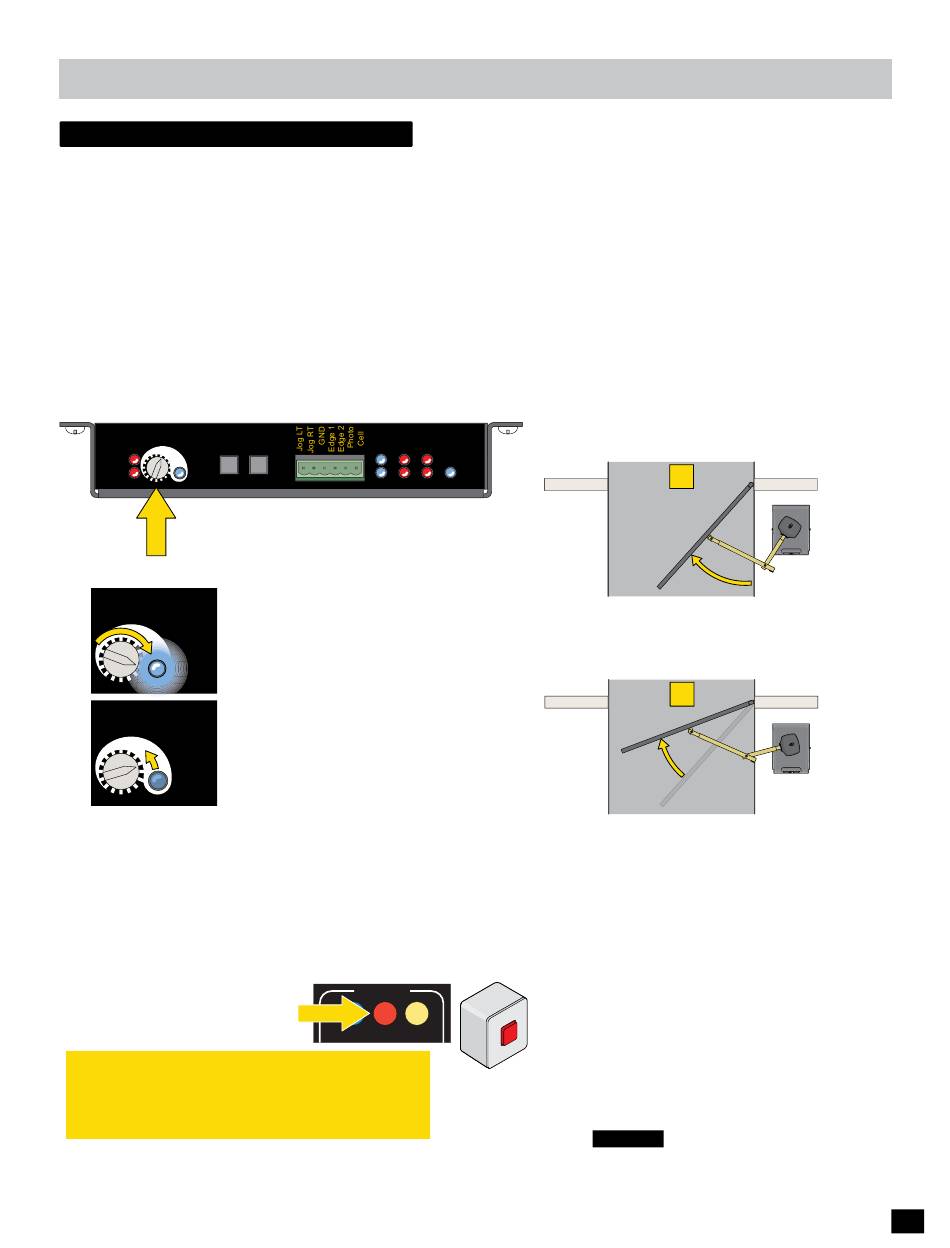

Adjusting ERD Sensitivity
A. Turn knob until blue LED lights up.
ERD
Sensitivity
Max sensitivity reached, Position 1.
5
4 4 4
3 3 3 3 3 3 3
M M M M M M M MAX
12
16 1 1 16 16 6 L L L LED ON LE LE E ED E
13
15 15 15 5 5 5
14
ERD
Sensitivity
B. Turn knob counter-clockwise to reduce
sensitivity during ERD testing as needed.
5
4
3 (LED remains OFF for all but position 1)
MAX
12
16 LED ON
13
15
14
Testing ERD Sensitivity
Allow the gate to strike an immobile object while OPENING and
CLOSING. The gate MUST reverse direction after striking the object.
Increase or decrease the ERD Sensitivity as needed. Repeat this
process until the correct sensitivity is achieved. If alarm sounds
while preforming this procedure,
press STOP BUTTON on Matrix 1
or externally mounted Alarm
Reset button to shut-off alarm.
IMPORTANT:
When satisfied with ERD adjustment,
cycle the gate 3 or 4 times to make sure that the ERD
sensor does not falsely trigger during normal gate
operation. Readjust if this happens.
Adjustments
JOG
MATRIX
RIGHT
ON-LINE
Edge UL Entrap
1
2
Limit SW Edge PhotoCell
"1" - Maximum sensitivity setting.
Too sensitive for most gates. (LED lights)
"16" - Minimum sensitivity setting.
Not sensitive enough for most gates. (LED is off)
Matrix 1
MOTOR MOTION
STOP
OPEN CLOSE
MC-200
TIP: While Adjusting ERD. . . . .
Motor Controller
POWER
Position gate half-way open and STOP gate.
This gate position will put the most amount of
resistance on the ERD sensor when gate cycles.
CLOSE gate. If ERD sensor triggers, reduce
sensitivity. If sensor does NOT trigger,
sensitivity is set correctly.
External Alarm
"Min" ERD Position 16 Setting
Reset Button
When solid gates are installed in:
S •
E S
P R
•
T
S E
R E
•
t o
ERD sensor can be set to Min (position 16)
to keep the gate cycling normally in such
extreme conditions.
CAUTION:
(position 16) results in gate exerting
MAXIMUM force before reversing direction.
1
STOP Gate STOP Gate
Half-way Half-way
2
CLOSE Gate CLOSE Gate
Unusually high wind areas
Uphill opening gate
Heavy gate
Minimum sensitivity setting
