Optional Remote Power Supply Kit - Max Magic Box - Maximum Controls MAX MEGATRON 1400HP Installation And Owner's Manual

optional remote power supply kit - max magic box

A remote power supply is for installations where it is too costly or difficult to trench a 115/230 VAC power line to the operator
but instead run a low voltage power line to the operator. A MAX Magic Box Kit (sold separately) is required to remotely install a
Remote MAX Megatron Toroid box.

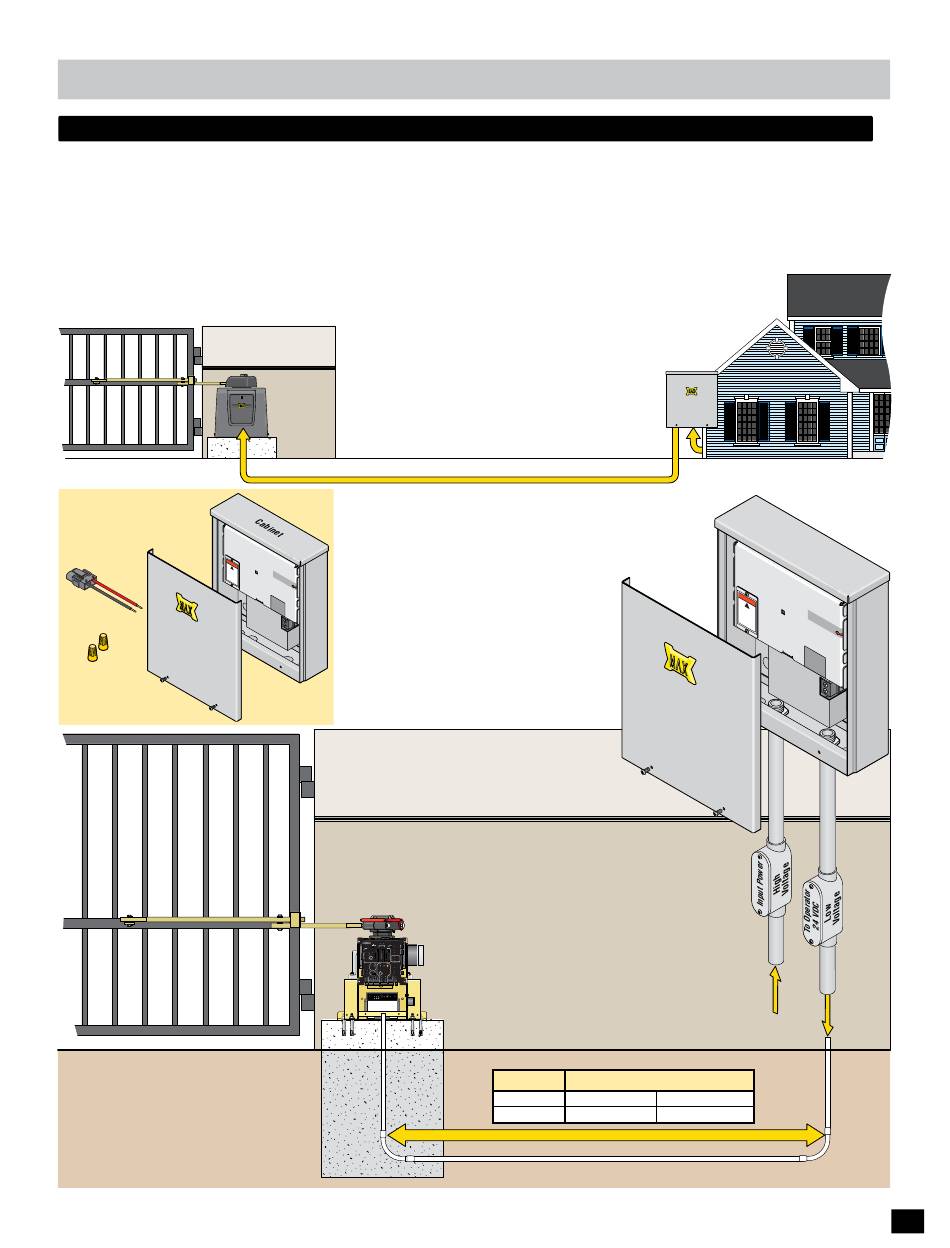

Install the MAX Magic Box near the 115 VAC or 230 VAC input AC power source, up to 1000 ft away from gate operator.
NOTE: A MAX Magic Box kit is required for EACH gate operator when using dual gate operators.
Operator
MAX Magic Box Kit
Sold Separately
R e
m o
1 5
A m
W W
A R A R
N IN N IN
G G
!
H I H I
V O V O G H G H
L T L T
di sc A G A G
po on E E
w er ne
se be ct
rv ic fo re
in g
un it
P o
w e
C o
r / S
n n
o l a
e c t
r I n
o r
C o
v e r
W i
r e
N u
t s
Ground Level
installation
2-Wires, 24VDC Low Voltage Power
t e
T o r
o i d
p B
o x
S e
le c
1 1 t In
5 V p u
A C t V
o r o lt
2 3 a g
0 V e :
A C
w a
r r a
V O
n ty
I D
if
la b E D
R E
e l
M O
is
V E
D
At Gate
Operator
MATRIX 1
BACK-UP MODE BATTERY PRIMARY GATE
LEAVE CLOSED DELAY MAGLOCK
MADE in USA OPEN LEAVE OPEN 1 TIME OPEN LEFT RIGHT OPEN OFF 1.5Sec 2Sec MAG
LOCK COM
NC
AUTOMATIC OPEN/CLOSE CONTROLS
TAILGATE ANTI EXIT CENTER SAFETY GATE Tamper NO
TAMPER COM
EXIT ON OFF GND
Tamper IN
CENTER
PHOTOCELL
SAFETY UL EDGE 1
MIN MAX
OFF ENTRAP EDGE 2
CLOSE TIMER
ID PLUG
PARTIAL MOTOR MOTION ERROR
ID OPEN
PLUG UL ALARM 12V
ALARM RET
OPEN STOP CLOSE RESET
POSITION GND
12VDC RECORDER MAX REVERSE SENSITIVITY
GND OBD PORT GATE SPEED MOTOR OVERLOAD
BLACK BOX GATE OPEN
24VDC MIN NO LIMIT SWITCH / CLAMP SLIPPING STATUS COM
GND MAX CLOSE
LIMIT BATTERY
ON-LINE SWITCH IN USE
MOTOR ON-LINE POWER
PRIMARY GATE GATE SEC
MAX BC-7
Battery Voltage Battery Module
E 1/2 F
ON/OFF Replace TEST Battery IN
Battery Battery Battery Error
Conduit
Concrete Pad
MAX Magic Box
Near Power Source
Distance - See table below
At MAX Magic Box
See page 20 for
MAX Magic Box
wiring instructions.
Gate Weight Max Wire Distance - Wire Gauge
1400 lbs 500 ft - 12AWG
2200 lbs 500 ft - 10AWG
24VDC Low Voltage Power
115/230 VAC Power Source
