Intended Use Of Swing Gate Operator - Maximum Controls MAX MEGATRON 1400HP Installation And Owner's Manual

swing gate operator
The operator is intended for use on a VEHICULAR slide gate ONLY. It is intended to be used WITH appropriate entrapment
protection safety devices and in-ground vehicle loop detection system. This operator has a inherent entrapment protection
system and requires additional external monitored entrapment protection devices (Non-contact Photocells or contact sensing
edges) for each entrapment area prior to gate operation.

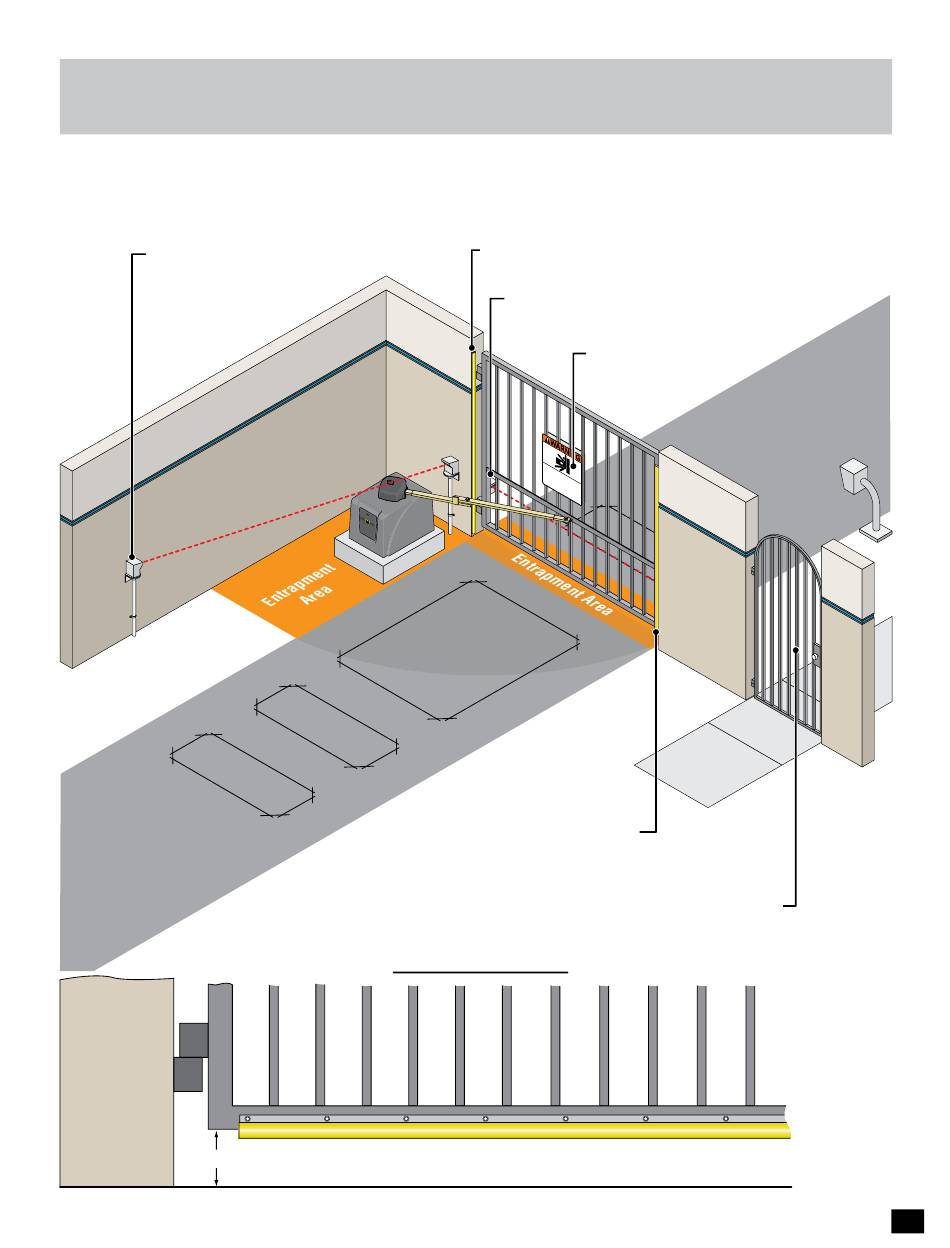

Opening Direction Photocell: Helps
guard against the opening gate from
entrapment.
In-Ground Loops:
Help protect the gate
operator from accidentally
opening and/or closing on
vehicles in the gate's path.
6" or More
intended use of
Opening/Closing Direction 10K Sensing Edge: Helps
protect the gate operator from accidentally opening
and/or closing on vehicles in the gate's path.
Bottom of Gate
OPENING/CLOSING direction Gate Protection 10K Sensing Edge on Bottom of Gate: If the bottom of
gate is 6 inches or higher above the ground, then a sensing edge should be installed for safety.
Opening/Closing Direction 10K Sensing Edge: Helps
protect against entrapment in hinge area.
Closing Direction Photocell: Helps protect the gate
operator from accidentally closing on vehicles in the gate's
closing path and entrapment.
Warning Signs: Should be installed
on both sides of gate area and
easily visible.
M
o v
S e
i n
r i o g G
K E
E P u s a t
w it
h o C L I n e C
u t E A
D o p ri j u
n o R ! a n
in t le o r G a r y
th e w a C a
t c rn in te o r
T h g a h ild m a
is te g . y m D e u s
P e e n a re re n
d e tr a o p o v e
s tr n c a . e a a t
ia n e ra h
e is te t a
s m fo r th e n y
ti m
u s v e g a e
t u h ic te
s e le s o r
s e
p a o n p la
ly . y
ra te
e n
tr a
n c
e .
(Wireless Option)
Pedestrians MUST use a separate entrance.
The gate operator IS NOT intended to be
used on a PEDESTRIAN gate.
NOTE: sensors
MUST be
MONITORED
and NORMALLY
CLOSED (N.C.)
5
