Max Megatron Secondary Wiring Schematics - Maximum Controls MAX MEGATRON 1400HP Installation And Owner's Manual

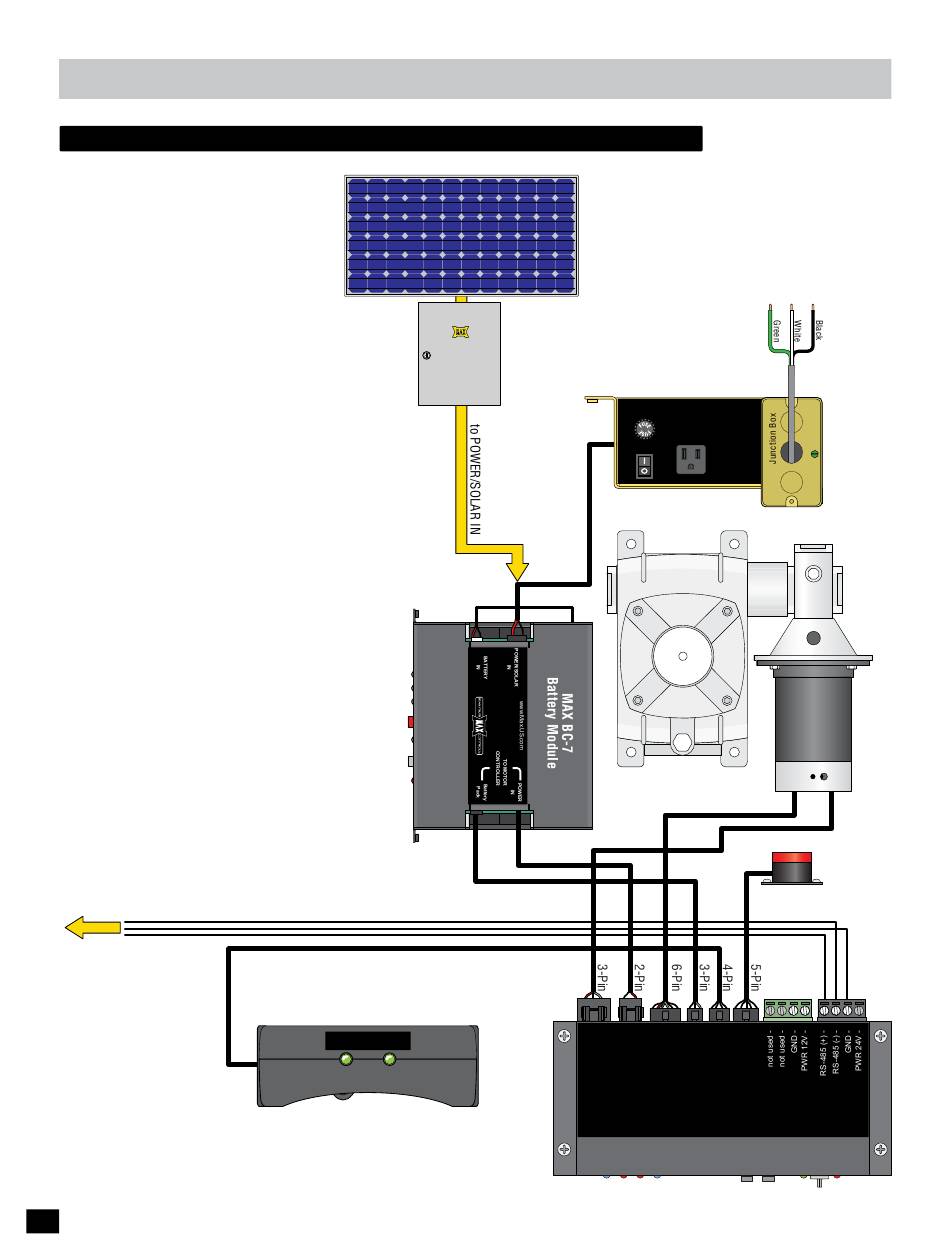

megatron secondary wiring schematic
To "SEC GATE" input
on Matrix 1
40
Maintenance
Solar Panel 24V
Solar
Panel
Electronics
Box
CLOSED OPEN
LIMIT LIMIT
Limit Switch Box
"Optional"
MAX Solar
Power Kit
WARNING: For continued protection
against fire, replace only with the
same type and rating of fuse.
AVERTISSEMENT: pour ne pas
compromettre la protection contre les
risques d'incendie, utiliser un fusible
de mêmes type et caractéristiques
nominales.
7 Amp
FUSE
On
POWER
Off
115VAC 3A max
MOTOR BATTERY
MOTOR Power In
INPUTS PACK
MAX MC-200
Motor Controller
Input AC Power
115VAC or 230VAC
MAX
Megatron
Toroid
Box
Motor
Alarm
LIMIT ALARM
SWITCH
MATRIX 1
