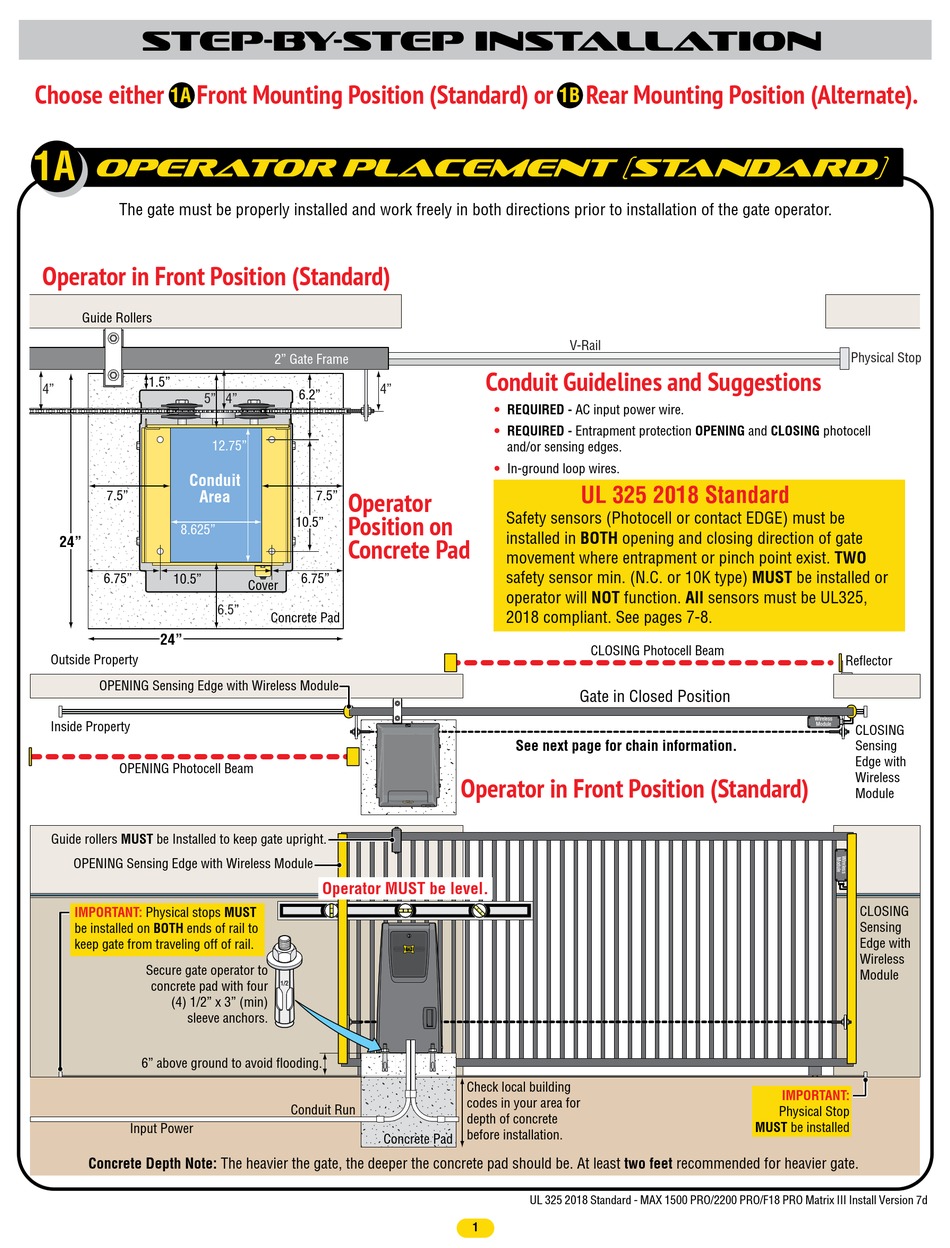

step-by-step installation

Choose either
Front Mounting Position (Standard) or
1A
1A

Operator Placement (standard)

The gate must be properly installed and work freely in both directions prior to installation of the gate operator.
Operator in Front Position (Standard)
Guide Rollers
1.5"
4"
5"
12.75"
Conduit
7.5"
Area
8.625"
24"
6.75"
10.5"
24"
Outside Property
OPENING Sensing Edge with Wireless Module
Inside Property
OPENING Photocell Beam
Guide rollers MUST be Installed to keep gate upright.
OPENING Sensing Edge with Wireless Module
Physical stops MUST
IMPORTANT:
be installed on BOTH ends of rail to
keep gate from traveling off of rail.
Secure gate operator to
concrete pad with four
(4) 1/2" x 3" (min)
sleeve anchors.
6" above ground to avoid flooding.
Input Power
Concrete Depth Note: The heavier the gate, the deeper the concrete pad should be. At least two feet recommended for heavier gate.
2" Gate Frame
4"
6.2"
4"
Operator
7.5"
Position on
10.5"
Concrete Pad
6.75"
Cover
6.5"
Concrete Pad
Operator MUST be level.
1/2
Conduit Run
Concrete Pad
Rear Mounting Position (Alternate).
1B
V-Rail
Conduit Guidelines and Suggestions
REQUIRED - AC input power wire.
REQUIRED - Entrapment protection OPENING and CLOSING photocell
and/or sensing edges.
In-ground loop wires.
UL 325 2018 Standard
Safety sensors (Photocell or contact EDGE) must be
installed in BOTH opening and closing direction of gate
movement where entrapment or pinch point exist. TWO
safety sensor min. (N.C. or 10K type) MUST be installed or
operator will NOT function. All sensors must be UL325,
2018 compliant. See pages 7-8.
CLOSING Photocell Beam
Gate in Closed Position
See next page for chain information.
Operator in Front Position (Standard)
Check local building
codes in your area for
depth of concrete
before installation.
UL 325 2018 Standard - MAX 1500 PRO/2200 PRO/F18 PRO Matrix III Install Version 7d
1
Physical Stop
Reflector
Wireless
Module
CLOSING
Sensing
Edge with
Wireless
Module
CLOSING
Sensing
Edge with
Wireless
Module
IMPORTANT:
Physical Stop
MUST be installed
