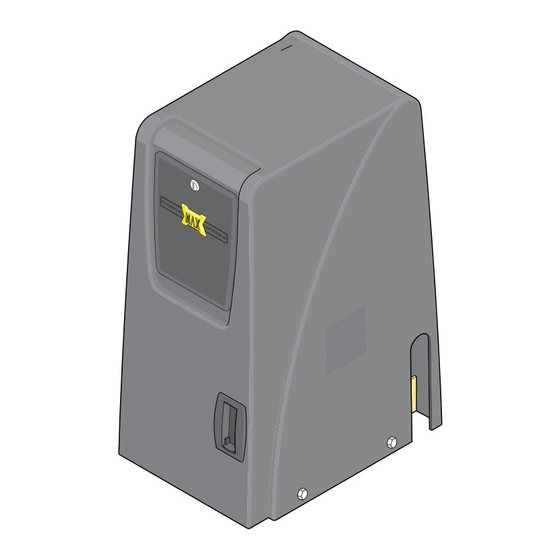

- Page 1 Installation Guide for MAX 1 00FS pro Fail Safe Slide Gate Operator Residential/Commercial Brushless DC Slide Gate Operators Made in USA 4009963 www.max.us.com...
- Page 2 ul 325 compliant installation requirements...
- Page 3 ul 325 compliant installation requirements continued...
- Page 4 important safety information...
- Page 5 ul 325 model classifications CLASS I CLASS III CLASS II CLASS IV ul 325 required entrapment protection Gate Type Class I & II Class III & IV...
- Page 6 intended use of slide gate operator w it p ri th e t le h ild rn in a re re n tr a s tr e ra ia n e is fo r th e ti m h ic le s p la ra te...
- Page 7 Table of Contents MAX 1700FS pro specs...
- Page 8 step-by-step installation Choose either Front Mounting Position (Standard) or Rear Mounting Position (Alternate). Operator Placement (standard) Operator in Front Position (Standard) Conduit Guidelines and Suggestions Operator Position on Concrete Pad Operator in Front Position (Standard)
- Page 9 connect chain to gate (standard) Top View of Operator Back View of Operator Operator in Front Position (Standard)
- Page 10 rear mounting position (alternate) Conduit Guidelines and Suggestions Operator Position on Concrete Pad Operator in Rear Position...
- Page 11 connect chain to gate (rear pos) Top View of Operator Operator in Rear Position Back View of Operator Modify Cover for Rear Mounting Position...
-
Page 12: Ac Input Power
ac input power t I n l e c l t a O f f Input AC Power Options DANGER Turn ALL Power OFF Turn Power t I n l e c l t a t In le c lt a S .c w .M x . -
Page 13: Ground Operator
ground operator Operator MUST be Properly GROUNDED WARNING connect chassis to ground rod for lightning protection opening direction /id plug/operator BATTERY BATTERY VOLTAGE BATTERY V INPUT ERROR BATTERY MOTOR BATTERY INPUT INPUTS BACKUP MODE BATTERY LEAVE OPEN IN USE OPEN 1 TIME REPLACE LEAVE... -
Page 14: Entrapment Protection Wiring
entrapment protection wiring LEFT RIGHT LOCK MAGLOCK DELAY OPEN ONLY PHOTO CLS 2.5 sec OPEN/CLS 1.5 sec 12VDC OUT OPEN ONLY ENTRAP CLS ONLY OPEN/CLS 12VDC OUT Entrapment Protection Device Options and Locations: CLOSING Direction Photocell OPENING Direction Photocell... - Page 15 continued Entrapment Protection Device Options and Locations: Sensing Edges Self-Supporting Post Test Connected Sensors MOTION CONTROL OPEN STOP OPEN ONLY PHOTO CLS OPEN/CLS 12VDC OUT OPEN ONLY CLS ONLY OPEN/CLS 12VDC OUT MOTION CONTROL STOP...
-
Page 16: Program Virtual Limit Sensors
BATTERY BATTERY VOLTAGE INPUT ERROR MOTOR BATTERY BATTERY INPUT INPUTS BACKUP MODE BATTERY LEAVE OPEN IN USE program virtual limit sensors OPEN 1 TIME REPLACE LEAVE BATTERY MOTOR BATTERY POWER / CLOSED TEST POSITION POWER SOLAR IN INPUTS CLOSE ERD SENSITIVITY TIMER SLIDER Gate operator OPEN and CLOSE buttons are disabled until virtual limits have been programmed. - Page 17 learn gate positions MOTION CONTROL GATE SPEED OPEN STOP CLOSE OPENING CLOSING MOTION CONTROL CLOSE OPEN STOP Adjust ERD Reverse sensor ERD SENSITIVITY MOTOR MOTOR OVER OVER SENSE LOAD SENSE LOAD OPENING CLOSING Adjusting ERD in EACH direction: Typical Settings: ERD SENSITIVITY ERD SENSITIVITY SENSE...
-
Page 18: Loops & Loop Detectors
TEST POWER SOLAR IN ERD SENS loops & loop detectors MOTOR MODULE SENSE OVER PORT LOAD OPENING OBD PORT RESET / BLACK BOX MANUAL RELEASE SWIN ALARM PROGRAMMING ID PLUG ERROR PLUG PROGRAM EXIT PWR SOLAR MODE EXIT LOOP CENTER LOOP In-Ground Loops LOOP PWR... -
Page 19: Wiring Opening Device Options
wiring opening device options BATTERY BATTERY VOLTAGE INPUT ERROR MOTOR BATTERY BATTERY INPUT INPUTS BACKUP MODE BATTERY LEAVE OPEN IN USE OPEN 1 TIME Maglock REPLACE LEAVE BATTERY MOTOR BATTERY POWER / CLOSED TEST POSITION POWER SOLAR IN INPUTS CLOSE ERD SENSITIVITY Solenoid Lock TIMER... -
Page 20: Additional Features
additional features programming MOTION CONTROL BATTERY BATTERY VOLTAGE INPUT ERROR MOTOR BATTERY BATTERY INPUT INPUTS NPUTS BACKUP MODE BATTERY LEAVE OPEN IN USE OPEN 1 TIME REPLACE LEFT RIGHT LEAVE BATTERY MOTOR MOTOR OPEN CLOSE BATTERY STOP POWER / CLOSED TEST POSITION POSITION... - Page 21 manual release options Local Keyed Manual Disconnect BATTERY BATTERY VOLTAGE INPUT ERROR MOTOR BATTERY BATTERY INPUT INPUTS BACKUP MODE BATTERY Built-In Electronic Gate Open / Close LEAVE OPEN IN USE OPEN 1 TIME REPLACE LEAVE BATTERY MOTOR BATTERY POWER / CLOSED TEST POSITION...
-
Page 22: Gate Tamper Feature
gate tamper feature Wiring Gate Tamper BATTERY BATTERY VOLTAGE INPUT ERROR MOTOR BATTERY BATTERY INPUT INPUTS BACKUP MODE BATTERY LEAVE OPEN IN USE OPEN 1 TIME REPLACE LEAVE BATTERY MOTOR BATTERY POWER / CLOSED TEST POSITION POWER SOLAR IN INPUTS CLOSE ERD SENSITIVITY TIMER... - Page 23 Partial open programming Dropping the Chain - GATE TAMPER is ARMED (ON) BATTERY BATTERY VOLTAGE INPUT ERROR BATTERY MOTOR BATTERY INPUT INPUTS BACKUP MODE BATTERY LEAVE OPEN IN USE OPEN 1 TIME REPLACE LEAVE BATTERY MOTOR BATTERY POWER / CLOSED TEST POSITION POWER...
-
Page 24: Dual Gate Operators Wiring
dual gate operators wiring Primary Operator Secondary Operator Set one operator to PRIMARY and the other to SECONDARY. BATTERY MATRIX III BATTERY MATRIX III BATTERY VOLTAGE BATTERY VOLTAGE INPUT INPUT Set opening directions of each (reverse of each other). ERROR ERROR BATTERY MOTOR... -
Page 25: Gate Disable Feature
gate disable feature BATTERY Wiring Gate Disable BATTERY VOLTAGE INPUT ERROR BATTERY MOTOR BATTERY INPUT BACKUP MODE INPUTS BATTERY LEAVE OPEN IN USE OPEN 1 TIME REPLACE LEAVE BATTERY MOTOR BATTERY POWER / CLOSED TEST POSITION POWER SOLAR IN INPUTS CLOSE ERD SENSITIVITY TIMER... -
Page 26: Troubleshooting
troubleshooting This page and the next 3 pages can help troubleshoot problems that might occur after installation is complete. usb black box port a r t INFO: BATTERY WARNING: P h o BATTERY VOLTAGE ERROR: INPUT ERROR ENTRAP: MOTOR BATTERY BATTERY INPUT INPUTS... - Page 27 gate cycling troubleshooting Use this table to help with troubleshooting AND operator LED troubleshooting on the next 2 pages.
-
Page 28: Matrix Iii Led Troubleshooting
matrix III led troubleshooting BATTERY BATTERY INPUT ERROR BATTERY VOLTAGE INPUT ERROR MOTOR BATTERY IN USE BATTERY BATTERY INPUT INPUTS BACKUP MODE BATTERY VOLTAGE BATTERY LEAVE OPEN IN USE OPEN 1 TIME REPLACE BATTERY REPLACE LEAVE BATTERY MOTOR CLOSE TIMER BATTERY POWER POWER /... - Page 29 matrix III led continued 18 or 19...
- Page 30 omron E3K-R10K4 wiring for max pro UL325-2018 UL325-2018 NORMALLY CLOSED (NC) NORMALLY CLOSED (NC) Wiring to E3K Photocell Wiring to E3K Photocell OPENING Direction CLOSING Direction Photocell (Reflector) Photocell (Reflector) UL 2018 Label on packaging UL 2018 Label on packaging NOTE: To meet the UL 325 2018 standard, NOTE: To meet the UL 325 2018 standard, Type B1 Non-Contact sensor entrapment...
- Page 31 omron E3K-R10K4 wiring for max pro UL325-2016 UL325-2016 UL325-2016 UL325-2016 NORMALLY CLOSED (NC) NORMALLY CLOSED (NC) NORMALLY CLOSED (NC) NORMALLY CLOSED (NC) Wiring to E3K Photocell Wiring to E3K Photocell Wiring to E3K Photocell Wiring to E3K Photocell OPENING Direction CLOSING Direction Photocell (Reflector) Photocell (Reflector)
- Page 32 omron E3K-R10K4 wiring for max pro UL325-2018 10K Resistor wiring to E3K Photocell OPENING Direction Photocell (Reflector) If the photocell does not respond to an obstruction, lower the sensitivity by Set switch to “LIGHT ON” turning adjustment counter-clockwise. Wire 12V power to photocell Wire to photocell Wire...
- Page 33 EMX WEL-200 Wiring Guide FOR MAX PRO SERIES www.max.us.com RECEIVER WEL-200R OPENING CLOSING TRANSMITTER TRANSMITTER WEL-200T WEL-200T WIRE WEL-200R WEL-200R OPEN & CLOSE RELAYS INSERT BOTH JUMPERS TO MATRIX III IN 10K POSITION 10K SENSOR INPUTS BATTERY MATRIX III BATTERY VOLTAGE INPUT ERROR MOTOR...
- Page 34 CONNECTING RECEIVER (WEL-200R) TO TRANSMITTER (WEL-200T) Connecting is a two step process. First, on the receiver, press and hold the channel assignment switch until the green status LED begins rapidly flashing, then release; this will clear any existing assignment for that particular channel. Hold down the connection switch on the transmitter.
- Page 35 Photocell (Reflector) CLOSING Direction SENSITIVITY 1 2 3 4 1 2 3 4 4W 2W NC COM PULSE ENERGIZED OPEN ONLY P P P HOTO CLS OPEN/CLS 12VDC OUT OPEN ONLY CLS ONLY OPEN/CLS 12VDC OUT...
- Page 36 Photocell (Thru-Beam) CLOSING Direction emx irb-mon Single Gate Operator Single Operator SENSITIVITY POWER INPUT COM NO POWER EARTH INPUT JUMPER TRANSMITTER RECEIVER BOARD (TX) BOARD (RX) OPEN ONLY PHOTO CLS OPEN/CLS 12VDC OUT OPEN ONLY CLS ONLY OPEN/CLS 12VDC OUT...
- Page 37 Photocell (Thru-Beam) CLOSING Direction emx irb-mon Dual Gate Operators Secondary Primary Operator Operator SENSITIVITY POWER INPUT COM NO POWER INPUT EARTH JUMPER TRANSMITTER RECEIVER BOARD (TX) BOARD (RX) BATTERY BATTERY BATTERY VOLTAGE BATTERY VOLTAGE INPUT INPUT ERROR ERROR MOTOR MOTOR BATTERY BATTERY BATTERY...
-
Page 38: Miller Rband Monitored Wireless
MOTOR 1 LOAD LOAD OPENING OPEN CLOSING LIMITS LIMIT 2 OBD PORT D POR BLACK BOX ACK B LIMIT 1 MAXIMUM CONTROLS RESET MOTOR 2 DSP ARM CONTROLLER LIMITS LIMIT 2 ON/OFF ON/O BATTERY BATTE ALARM MOTION CONTROL PROGRAMMING OGRA... - Page 39 BATTERY BATTERY VOLTAGE INPUT ERROR MOTOR BATTERY BATTERY INPUT INPUTS BACKUP MODE BATTERY LEAVE OPEN IN USE OPEN 1 TIME REPLACE LEAVE BATTERY MOTOR BATTERY POWER / CLOSED TEST POSITION POWER SOLAR IN INPUTS CLOSE ERD SENSITIVITY TIMER SLIDER LIMIT MOTOR MOTOR MODULE...
- Page 40 SOLAR MODE BATTERY BATTERY VOLTAGE INPUT ERROR C o n MOTOR BATTERY BATTERY INPUT BACKUP MODE INPUTS BATTERY LEAVE OPEN t r o IN USE OPEN 1 TIME l B o REPLACE LEAVE BATTERY MOTOR MOTOR BATTERY POWER / CLOSED TEST POSITION POSITION...
- Page 42 Residential/Commercial Brushless DC Slide Gate Operators Made in USA 4009963 Maximum Controls LLC. 10530 Lawson River Ave Fountain Valley, Ca 92708 Tel: (949) 699-0220...
