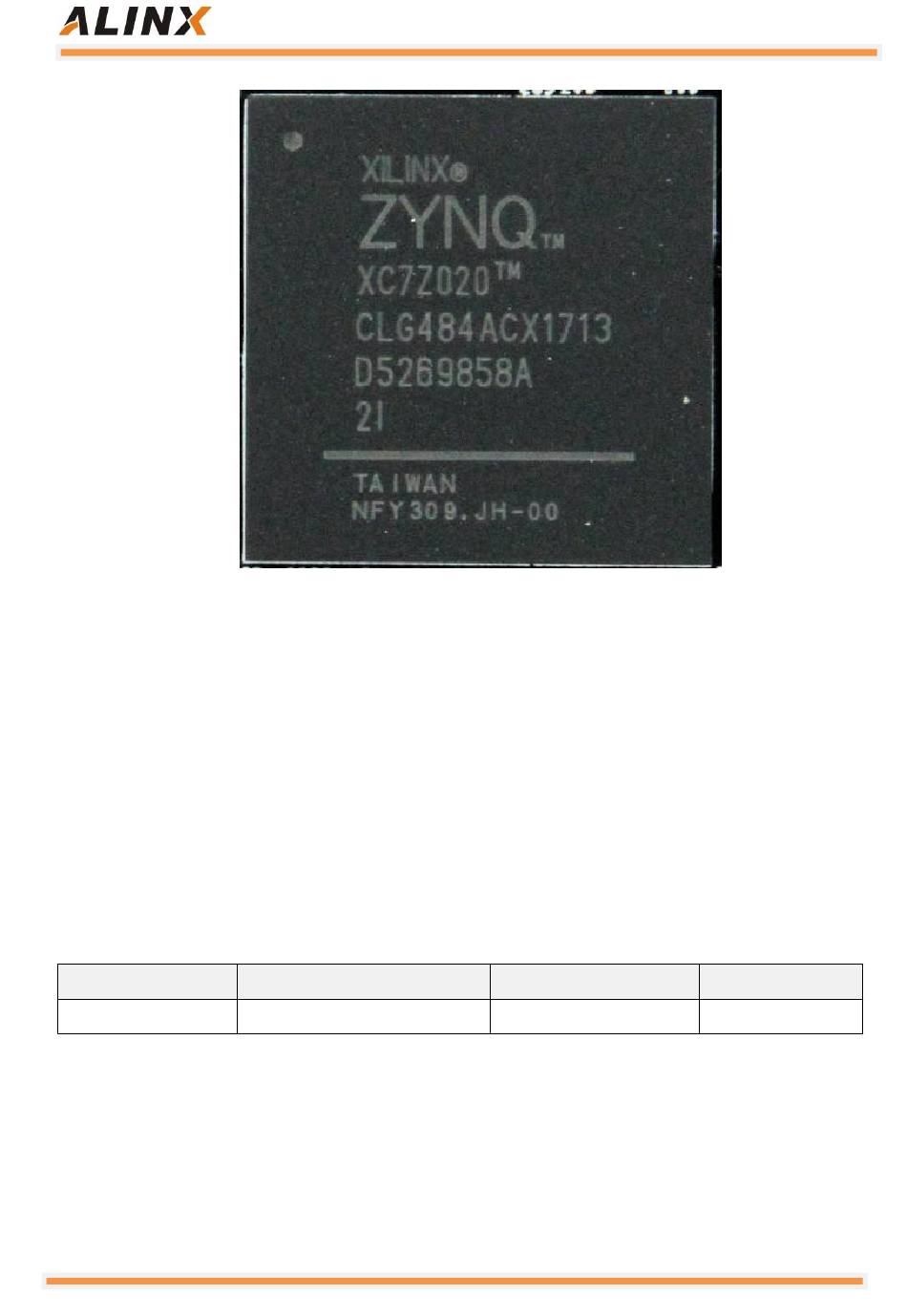

Figure 2-2-5: TheXC7Z020 chip used on the Core Board

1.3 DDR3 DRAM

The AC7021 core board is equipped with two SK Hynix DDR3 SDRAM
chips (1GB total), model H5TQ4G63AFR-PBI. The bus width of DDR3 SDRAM
is 32 bits in total. DDR3 SDRAM has a maximum operating speed of 533MHz
(data rate 1066Mbps). The DDR3 memory system is directly connected to the
memory interface of the BANK 502 of the ZYNQ Processing System (PS). The
specific configuration of DDR3 SDRAM is shown in Table 2-3-1
Bit Number
U5,U6
The hardware design of DDR3 requires strict consideration of signal
integrity. We have fully considered the matching resistor/terminal resistance,
trace impedance control, and trace length control in circuit design and PCB
design to ensure high-speed and stable operation of DDR3.
9 / 30
ZYNQ FPGA Development Board AX7021 User Manual
Chip Model
H5TQ4G63AFR-PBI
Table 2-3-1: DDR3 SDRAM Configuration
Amazon Store: https://www.amazon.com/alinx
Capacity
256M x 16bit
Factory
SK Hynix
