Jumper
Position
J1200
1-2
J1200
3-4
J1200
5-6
Table 19: Jumper Settings VCC_IO_B

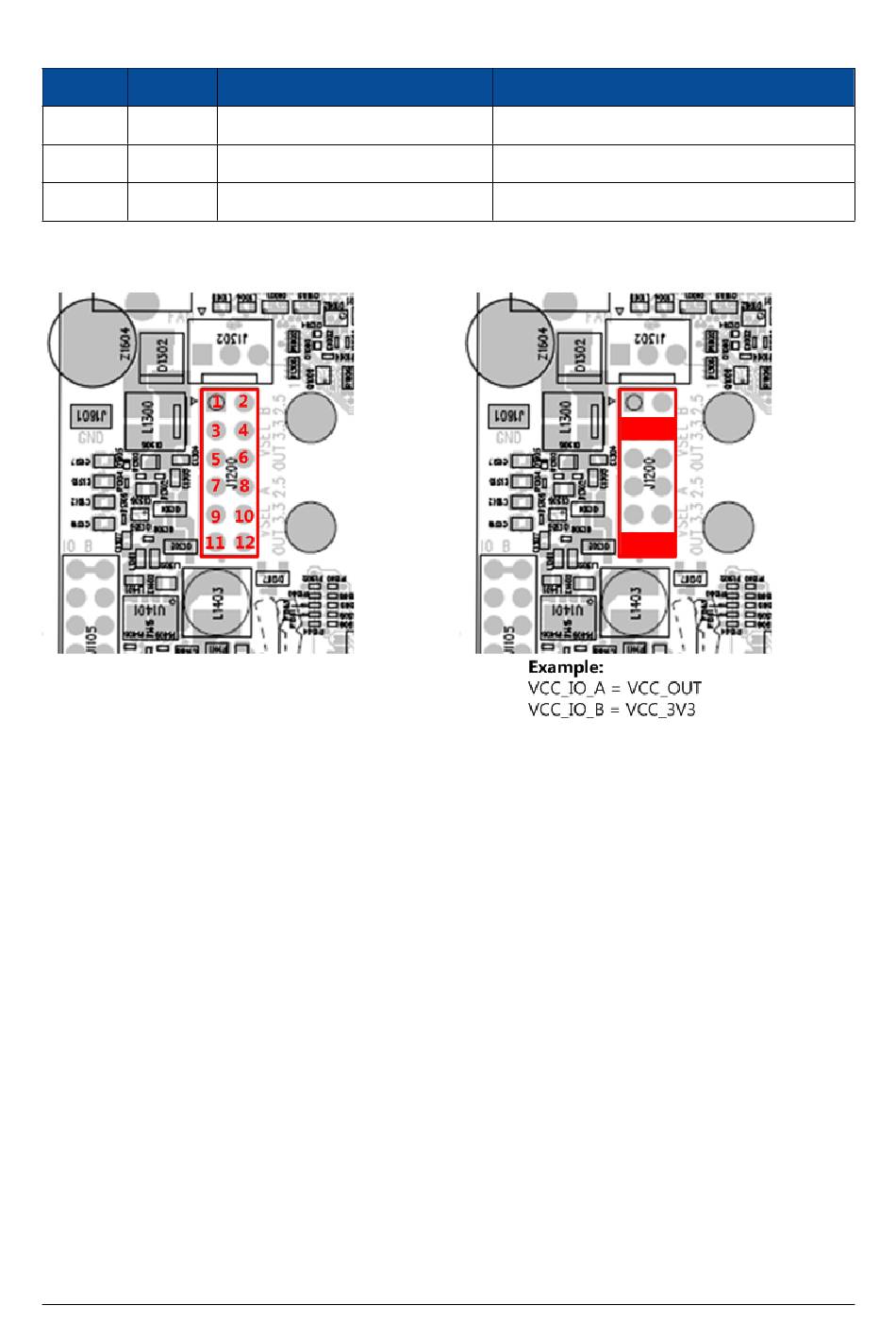

Figure 8: VCC_IO Jumper Positions - Pin Numbering and Configuration Example
D-0000-307-001
Function
VCC_2V5 selected
VCC_3V3 selected
VCC_OUT selected
Description
VCC_2V5 is connected to VCC_IO_B
VCC_3V3 is connected to VCC_IO_B
Module VCC_OUT is connected to VCC_IO_B
26 / 39
Version 06, 22.07.2021
