Target adaptation
The Emulation Adapter adaptation to a specific target microcontroller pincount and package is
done via a Conversion board and a Solder part. Sometimes also an optional Extender is available.
Conversion boards connect between the Emulation Adapter and the matching Solder part, which is
being soldered on the embedded target side. Available Conversion boards, Solder parts and
optional Extenders are listed in the table below.
Package (Pitch)
QFP48 (0.5 mm)
HDQFP100 (0.5 mm)
HDQFP172 (0.5 mm)

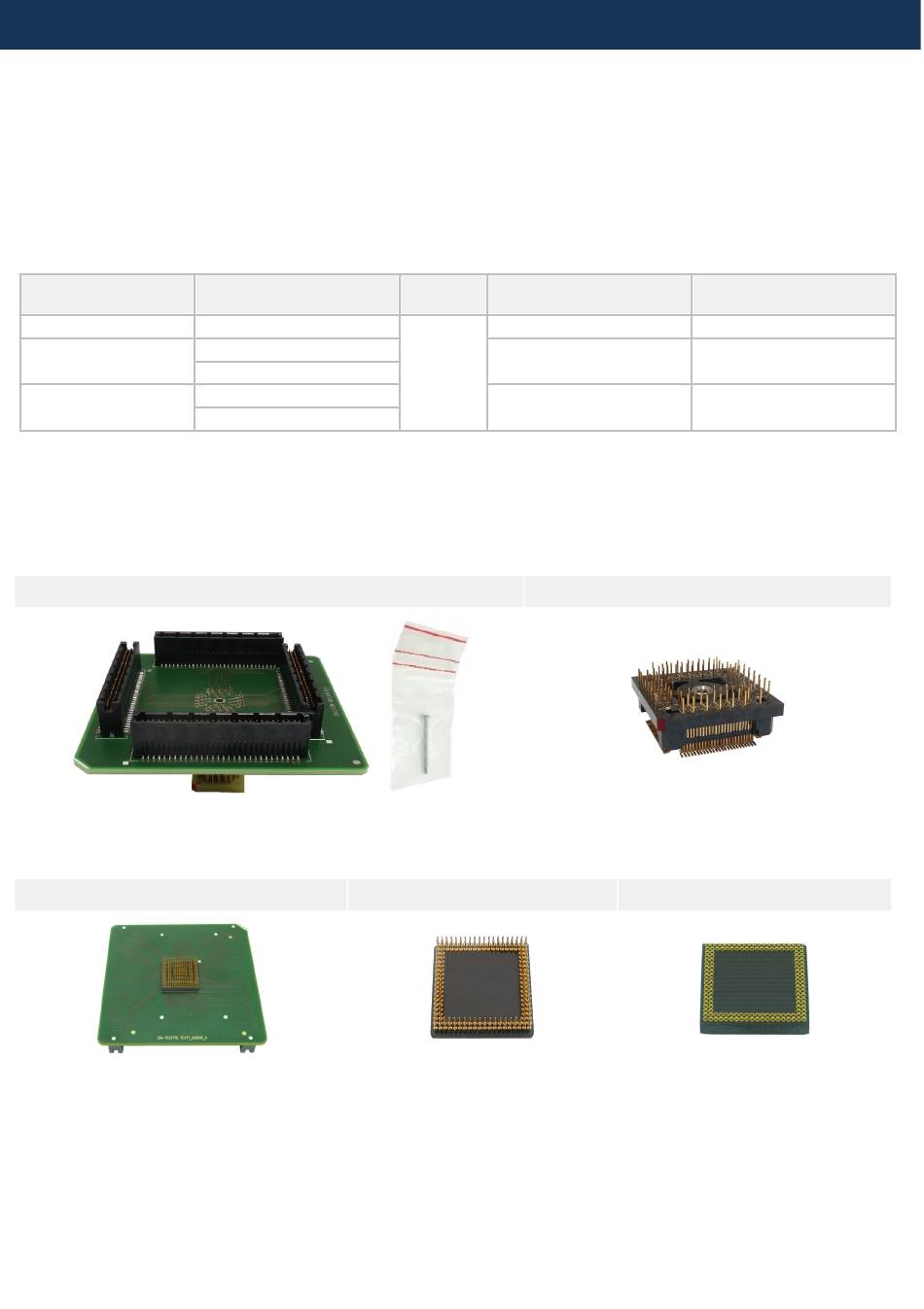

QFP Fixed Adaptation
This adaptation is delivered with a slot screw, which can be optionally used to achieve a more solid
and stable fixing of the Conversion board and the Solder part.
HDQFP Fixed Adaptation
Conversion board
Conversion board
(Ordering code)
IEA-S32K344-311F48TQ
IEA-S32K344-312F100M
IEA-S32K344-342F100M
IEA-S32K344-312F172M
IEA-S32K344-344F172M
Conversion board
Extender
Type
(Ordering code)
IA100MQFP-EXTENDER
Fixed
IA172MQFP-EXTENDER
Extender (optional)
Solder part
(Ordering code)
/
IA48TQ-SOLDER
IA100MQFP-SOLDER
IA172MQFP-SOLDER
Solder part
Solder part
