Assembly

QFP Fixed

Watch out that the pin 1 position and alignment of all pins. Avoid disassembling and
reassembling the hardware setup too frequently.

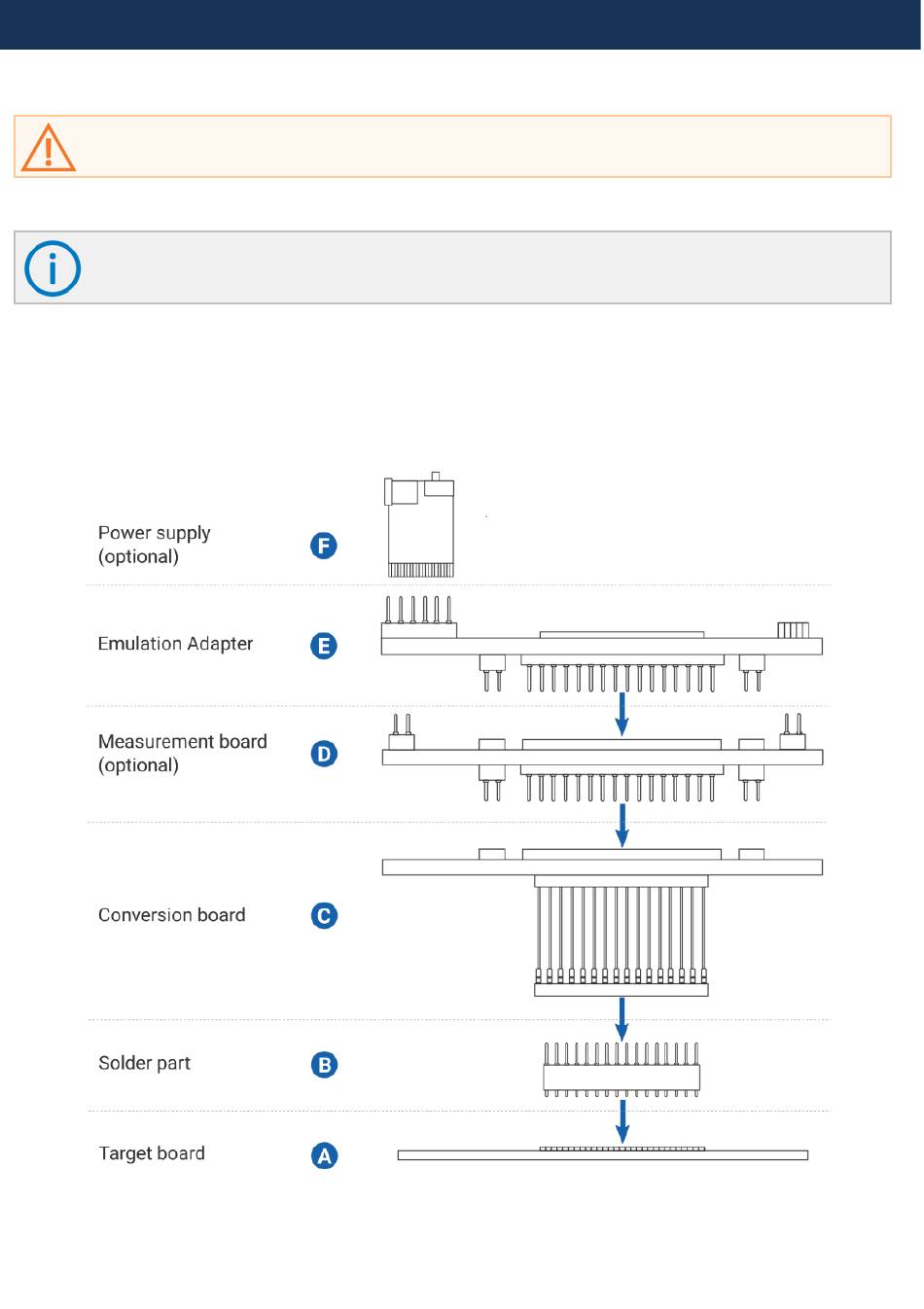

1. Solder the Solder part [B] on the target PCB [A] to get a BA setup.
Use the Surface Mount Technology (SMT) to solder the Solder parts to the target instead of
the original microcontroller. iSYSTEM provides this soldering service on request.
2. Assemble the in order: Emulation Adapter [E], optional Measurement board [D], the Conversion
board [C], together to get an E(D)C setup.
3. Assemble the E(D)C setup with the BA setup by connecting the Conversion board of the E(D)C
setup to the Solder part of the BA setup.
