Slot screw
The Slot screw (30mm) is used to fix the Conversion board to the Solder part. The setup becomes
mechanically more robust.Screw the Conversion board to the Solder part first, before the Emulation
Adapter is attached on top and watch out not to break out the Solder part, e.g., if you accidentally
hit the Emulation Adapter from the side.
HDQFP Fixed
1. Solder the Solder part B on the Target A.
2. (optional, recommended) Connect Extender C to the Solder part B.
The Extender protects from damaging the Solder part if the Emulation Adapter setup is frequently assembled and disassembled. Be
careful and gentle during this procedure because all parts of the setup are extremely sensitive, and pins can easily bend or even break
in the worst-case scenario.
More Extenders can be stacked to gain height between the Emulation Adapter and the Target, if surrounding components so high that
they prevent connecting the Emulation Adapter. Keep the number of Extenders C at minimum since every Extender degrades the signal
integrity of the electrical signals.

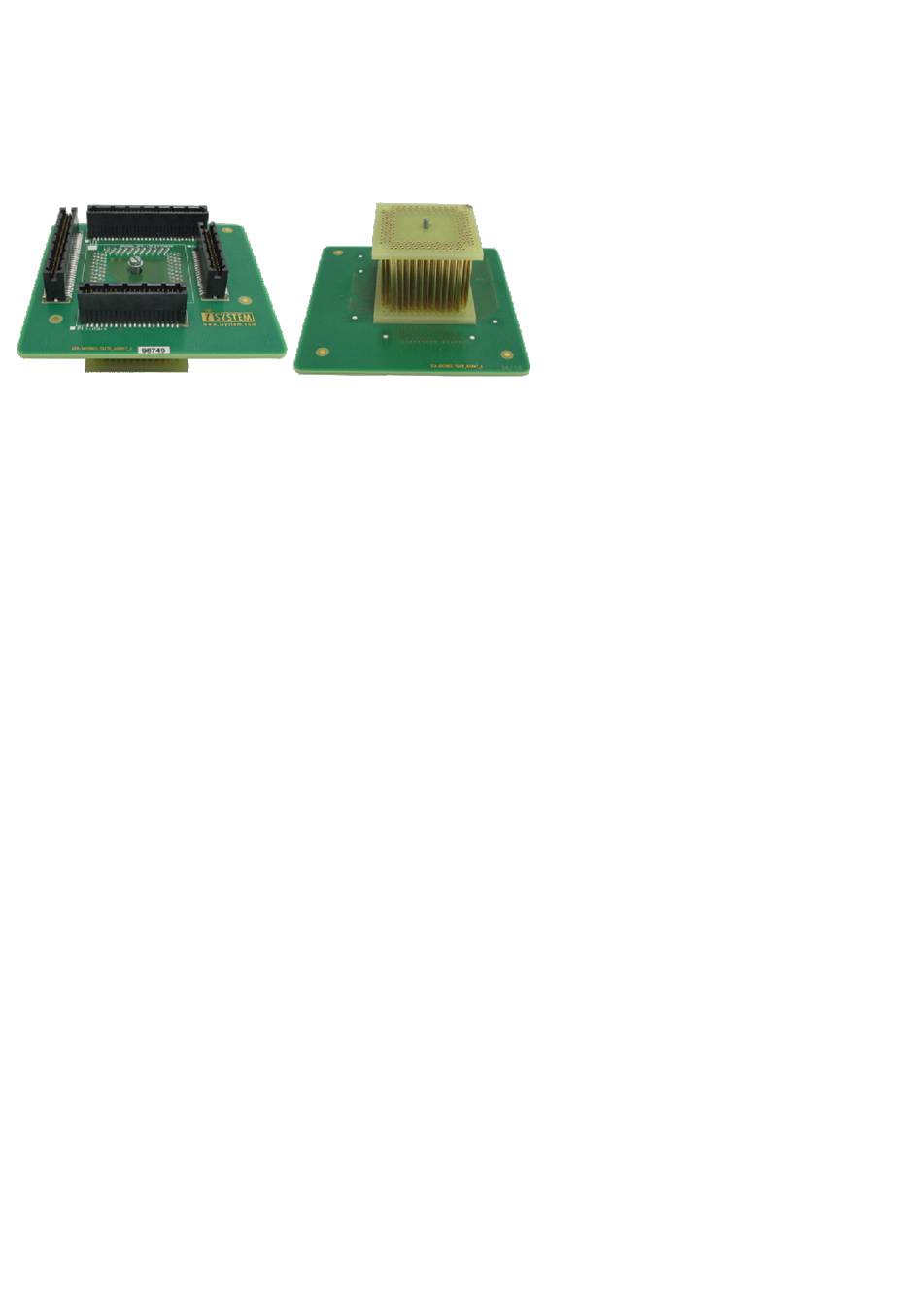

3. Assemble in order: Emulation Adapter F, optional Measurement board E, Conversion board D.
4. Connect Conversion board D to:
Solder part or
·
Extender
·
