- Page 1 Legacy Debug Adapters User Manual V1.5, August 2023 isystem.com/start...
- Page 2 General safety instructions Please read the following safety precautions carefully before putting this device to use to avoid any personal injuries, damage to the instrument, or to the target system. Use this instrument only for its intended purpose as specified by this manual to prevent potential hazards. Use included power cord and power supply The enclosed power supply has been approved for use by iSYSTEM.
-
Page 3: Table Of Contents
Contents Legacy Debug Adapters ......................... 4 26-pin 2.54 mm NXP ColdFire Debug Adapter .................. 5 6-pin 2.54mm NXP BDM Debug Adapter ................... 7 6-pin 2.54mm NXP S12Z BDM Debug Adapter ................. 8 16-pin 2.54mm NXP COP Debug Adapter ..................9 38-pin Mictor PPC4xx RISCTrace Debug Adapter ................ -
Page 4: Legacy Debug Adapters
Legacy Debug Adapters This document provides detailed information on the debug adapters (used in conjunction with the iC5000 or the iC5700) supporting legacy microcontroller architectures which are no longer supported with winIDEA 9.17.0 or newer. Listed Debug Adapters and belonging microcontroller architectures are supported with winIDEA 9.12.288 or older. -
Page 5: 26-Pin 2.54 Mm Nxp Coldfire Debug Adapter
26-pin 2.54 mm NXP ColdFire Debug Adapter Ordering code IC50130 This debug adapter is used to connect the iC5000 BlueBox to NXP ColdFire based target featuring a 26-pin 2.54 mm pitch target debug connector with the ColdFire pinout. This debug adapter is supported by the iC5000 BlueBox only. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side. - Page 6 state after the excessive current fades away. Signals on pins 1, 12-19 and 24 are protected via 47 ohm serial resistors. The debug adapter connects to the target via a 26-pin 2.54 mm connector, for example Yamaichi FAS-26-17. A target should feature a matching part, for example WÜRTH ELEKTRONIK 61202621621.
-
Page 7: 6-Pin 2.54Mm Nxp Bdm Debug Adapter
6-pin 2.54mm NXP BDM Debug Adapter Ordering code IC50140 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to NXP HCS08, HC12, HCS12, S12X and ColdFire V1 based target featuring 6-pin 2.54mm pitch target debug connector with the BDM pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side. -
Page 8: 6-Pin 2.54Mm Nxp S12Z Bdm Debug Adapter
6-pin 2.54mm NXP S12Z BDM Debug Adapter Ordering code IC50141 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to NXP S12Z based target featuring 6-pin 2.54mm pitch target debug connector with the S12Z BDM pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side. -
Page 9: 16-Pin 2.54Mm Nxp Cop Debug Adapter
16-pin 2.54mm NXP COP Debug Adapter Ordering code IC50153 This debug adapter is used to connect the iC5000 BlueBox to NXP MPC6xx, MPC82xx, MobileGT, MPC7xx or MPC83xx based target featuring 16-pin 2.54mm pitch target debug connector with NXP COP pinout This debug adapter is supported by the iC5000 BlueBox only. -
Page 10: 38-Pin Mictor Ppc4Xx Risctrace Debug Adapter
38-pin Mictor PPC4xx RISCTrace Debug Adapter Ordering code IC50155 This debug adapter is used to connect the iC5000 BlueBox to Applied Micro PPC4xx based target featuring a 38-pin Mictor target debug connector with the PPC4xx RISCTrace pinout. This debug adapter is supported by the iC5000 BlueBox only. The debug adapter connects to the BlueBox through the two ribbon cables and to the target debug connector on the other side. - Page 11 failure. 38-pin Mictor PPC4xx RISCTrace Debug Adapter features resettable fuses on pins 7, 9, 11, 12, 15, 17, 19 and 21. These protect debug signals against overcurrent and cycle back to a conductive state after the excessive current fades away. Signals on pins 6, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37 and 38 are protected via 47 ohm serial resistors.
-
Page 12: 16-Pin 2.54Mm Renesas 78K0R Debug Adapter
16-pin 2.54mm Renesas 78K0R Debug Adapter Ordering code IC50170 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas 78K0R based target featuring 16-pin 2.54mm pitch target debug connector with the 78K0R pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side. - Page 13 The debug adapter connects to the target via a 16-pin 2.54 mm connector, for example Yamaichi FAS-1601-2101-2-OBF. A target should feature a matching part, for example WÜRTH ELEKTRONIK 61201621621.
-
Page 14: 26-Pin Kel Renesas V850 Debug Adapter

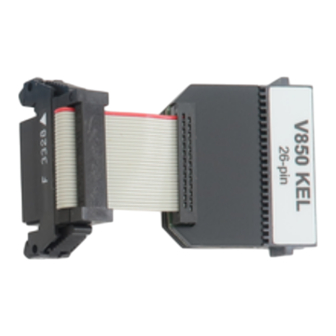

26-pin KEL Renesas V850 Debug Adapter Ordering code IC50172 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas V850 based target featuring 26-pin KEL target debug connector with the V850 pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side. -
Page 15: 20-Pin 2.54Mm Renesas V850 Debug Adapter
20-pin 2.54mm Renesas V850 Debug Adapter Ordering code IC50171 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas (former NEC) V850 based target featuring a 20-pin 2.54 mm pitch target debug connector with the V850 pinout. -
Page 16: 10-Pin 2.54Mm Renesas 78K0 Debug Adapter
10-pin 2.54mm Renesas 78K0 Debug Adapter Ordering code IC50174 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas 78K0 based target featuring 10-pin 2.54mm pitch target debug connector with the 78K0 pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side. -
Page 17: 78K0 16-Pin 2.54Mm Converter
78K0 16-pin 2.54mm Converter Ordering code IAPIN10PIN16NEC78K Embedded targets based on Renesas 78K0 microcontroller can also feature a 16-pin 2.54mm target debug connector with the Renesas 78K0 pinout. A converter connecting at the end of the 10-pin 2.54mm Renesas 78K0 Debug Adapter is available for Renesas 78K0 16-pin pinout and must be ordered separately. -
Page 18: 4-Pin Erni St Stm8 Debug Adapter
4-pin ERNI ST STM8 Debug Adapter Ordering code IC50190 This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to ST STM8 based target featuring 4-pin ERNI target debug connector with the STM8 pinout. The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to the target debug connector on the other side. - Page 19 Visit our website for: Support - isystem.com/support · Tutorials - isystem.com/getting-started · Knowledge Base - kb.isystem.com · www.isystem.com...
